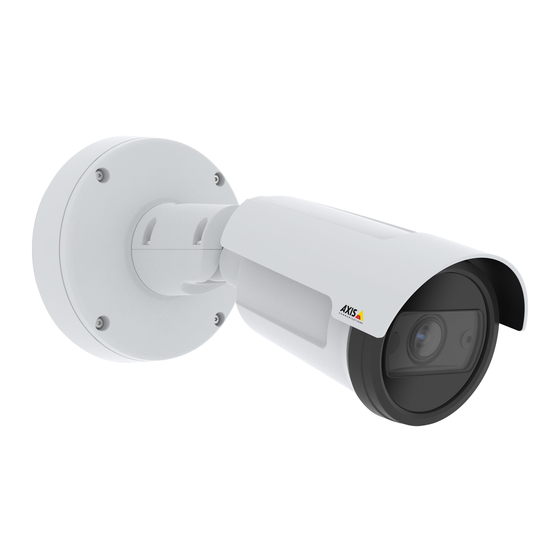

AXIS P1455-LE Network Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1455-LE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis P1455-LE

Summary of Contents for Axis P1455-LE

  • Page 1 AXIS P1455-LE Network Camera User Manual...

  • Page 2: Table Of Contents

    AXIS P1455-LE Network Camera Table of Contents Get started ..........

  • Page 3: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 4: Webpage Overview

    Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.
  • Page 5 AXIS P1455-LE Network Camera Get started Settings tabs...

  • Page 6: Additional Settings

    AXIS P1455-LE Network Camera Additional settings Additional settings Adjust the image If you want to know more about different image settings, see Learn more on page 18. Level the camera To adjust the view in relation to a reference area or object, use the leveling guide in combination with a mechanical adjustment of the camera.
  • Page 7 AXIS P1455-LE Network Camera Additional settings Benefit from IR light in low-light conditions using night mode Your camera uses visible light to deliver color images during the day. As the available light diminishes, you can set the camera to automatically shift to night mode, in which the camera uses both visible light and near-infrared light to deliver black-and-white images.
  • Page 8 4. Use the Tone mapping slider to adjust the amount of WDR. 5. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Compensate for barrel distortion Barrel distortion is a phenomenon where straight lines appear increasingly bent closer to the edges of the frame.
  • Page 9 AXIS P1455-LE Network Camera Additional settings 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°. Note Make sure to aim IR LEDs away from walls or weathershields. 2. If the device doesn’t have automatic rotation of the view, log in to the webpage and go to Settings > System > Orientation.

  • Page 10: View And Record Video

    AXIS P1455-LE Network Camera Additional settings 3. Adjust the size, color, and name of the privacy mask according to your needs. Show an image overlay To add an image as an overlay in the video stream: 1. Go to Settings > Overlay.

  • Page 11: Set Up Rules And Alerts

    Make sure that AXIS Video Motion Detection is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running. 3. Make sure you have set up the application according to your needs.
  • Page 12 1. Go to Settings > System > Events and add a rule. 2. Type a name for the rule. 3. In the list of conditions, under Application, select AXIS Video Motion Detection (VMD). 4. In the list of actions, under Recordings, select Record video while the rule is active.
  • Page 13 AXIS P1455-LE Network Camera Additional settings Record video when the camera detects loud noises This example explains how to set up the camera to start recording to the SD card five seconds before it detects loud noise and to stop one minute after.
  • Page 14 8. Create a second rule and select the same Condition as in the first rule. 9. In the list of actions, select Toggle I/O while the rule is active, and then select the port the AXIS I/O Indication LED is connected to.
  • Page 15 AXIS P1455-LE Network Camera Additional settings Set up intrusion alarm Before you start • Connect the intrusion alarm switch to pin 1 (ground) and pin 3 (digital input) of the camera’s I/O connector. Configure the input port 1. Go to Settings > System > I/O ports.

  • Page 16: Add Audio

    Connect to a network speaker Network speaker pairing allows you to use a compatible Axis network speaker as if it is connected directly to the camera. Once paired, the speaker acts as an audio out device where you can play audio clips and transmit sound through the camera.

  • Page 17: Cleaning Recommendations

    AXIS P1455-LE Network Camera Cleaning recommendations Cleaning recommendations NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone. 1. Use a can of compressed air to remove any dust or loose dirt from the device. 2. If necessary, clean the lens with a soft cloth dampened with lukewarm water.

  • Page 18: Learn More

    Capture modes Capture mode defines the maximum resolution and maximum frame rate available in the Axis product. If using a capture mode with a smaller resolution than the maximum resolution, the angle of view is reduced. The capture mode also affects light sensitivity. A capture mode with a high maximum frame rate has reduced light sensitivity and vice versa.

  • Page 19: Overlays

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard.
  • Page 20 AXIS P1455-LE Network Camera Learn more The Stream profiles settings override the settings from the Stream tab. If you request a stream with a specific stream profile, the stream contains the settings of that profile. If you request a stream without specifying a stream profile, or request a stream profile that doesn't exist in the product, the stream contains the settings from the Stream tab.

  • Page 21: Security

    Axis Edge Vault Axis Edge Vault is a hardware component that provides cryptographic storage and cryptographic features to protect the installed Axis device ID from unauthorized use or access. This identity is unique for each product and is designed to prove the origin of the device.

  • Page 22: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 23: Technical Issues, Clues And Solutions

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 24: Performance Considerations

    To access the device externally, we recommend using one of the following applications for Windows • AXIS Companion: free of charge, ideal for small systems with basic surveillance needs. • AXIS Camera Station: 30-day trial version free of charge, ideal for small to mid-size systems. For instructions and download, go to axis.com/vms.

  • Page 25: Contact Support

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.

  • Page 26: Specifications

    AXIS P1455-LE Network Camera Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. Product overview Status LED indicator Audio connector I/O connector microSD card slot Network connector Control button Part number (P/N) &...

  • Page 27: Sd Card Slot

    Resetting the product to factory default settings. See Reset to factory default settings on page 22. • Connecting to an AXIS Video Hosting System service. To connect, press and hold the button for about 3 seconds until the status LED flashes green.
  • Page 28 AXIS P1455-LE Network Camera Specifications Digital input - For connecting devices that can toggle between an open and closed circuit, for example PIR sensors, door/window contacts, and glass break detectors. Digital output - For connecting external devices such as relays and LEDs. Connected devices can be activated by the VAPIX®...
  • Page 29 User Manual Ver. M1.6 AXIS P1455-LE Network Camera Date: June 2020 © Axis Communications AB, 2020 Part No. T10154216...
