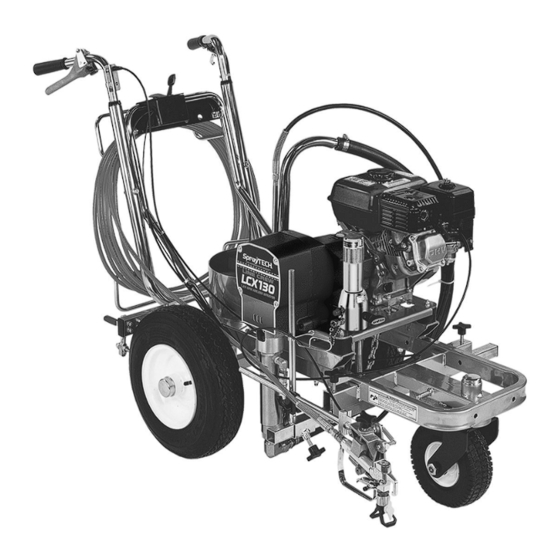

LCX 130
Lin e S tr ip er
Do not use this equipment before reading this manual!
NOTE: This manual contains important warnings and
instructions. Please read and retain for reference.
Printed in the U. S. A.
Model Number 0509040
Owner's Manual
SprayTECH
1770 Fernbrook Lane
Minneapolis, MN 55447
Technical Assistance: 1-800-292-4637
Order Entry: 1-800-443-4500
ww w. spr ayt e c h in c .c om
0306 © 2006 SprayTECH. All rights reserved. Form No. 0555887A
Fax: 1-800-525-9501

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCX 130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SprayTECH LCX 130

Summary of Contents for SprayTECH LCX 130

  • Page 1 NOTE: This manual contains important warnings and Fax: 1-800-525-9501 instructions. Please read and retain for reference. ww w. spr ayt e c h in c .c om Printed in the U. S. A. 0306 © 2006 SprayTECH. All rights reserved. Form No. 0555887A...

  • Page 2: Table Of Contents

    Be familiar with the controls and the proper usage of the equipment. 2. Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any part of the body. © SprayTECH. All rights reserved.
  • Page 3 11. The United States Government Safety Standards have Weight ..........272 lbs. (123.4 kg) been adopted under the Occupational Safety and Health Act (OSHA). These standards, particularly part 1910 of the General Standards and part 1926 of the Construction Standards should be consulted. © SprayTECH. All rights reserved.

  • Page 4: General Description

    Refer to the engine a. Disengage the trigger cable from the tensioning clamp. manufacturer's service manual (supplied). 8. Close the fuel shut-off lever and fill the gas tank with gasoline. Use only high quality, unleaded gasoline. © SprayTECH. All rights reserved.

  • Page 5: Preparing To Paint

    Continue to hold the rope as you let 13. Turn on the sprayer. it return. Pull and return the rope until the engine 14. Turn the pressure control knob slowly clockwise to starts. increase pressure. © SprayTECH. All rights reserved.

  • Page 6: Painting

    13. Move the PRIME/SPRAY valve to the SPRAY position. 14. Turn on the sprayer. 15. Turn the pressure control knob slowly clockwise to increase pressure. © SprayTECH. All rights reserved.

  • Page 7: Pressure Relief Procedure

    4. Place the return hose into a metal waste container. 5. Move the PRIME/SPRAY valve to its PRIME position. NOTE: Hold the return hose in the waste container when moving the PRIME/SPRAY valve to PRIME in case the sprayer is pressurized. © SprayTECH. All rights reserved.

  • Page 8: Maintenance

    1/2” open-end wrench 7/8” open-end wrench replace if necessary. (Replacement elements can be purchased from your local SprayTECH dealer.) 1. Before repairing any part of the sprayer, read the instructions carefully, including all warnings. • After each 50 hours of operation: Change the engine oil.

  • Page 9: Replacing The Potentiometer

    Replacing the Potentiometer WARNING WARNING Electrostatic discharge (ESD) potential could cause damage to electronic pressure control. Use SprayTECH Electrostatic discharge (ESD) potential could cause ESD wrist strap P/N 0507958 or equivalent when working damage to electronic pressure control. Use SprayTECH on electronic pressure control.

  • Page 10: Replacing The Transducer

    EPC housing. Tighten securely. of the EPC housing. Disconnect this wire from the EPC 22. Take the sprayer to a SprayTECH Authorized Service board (it has a phone jack-style connector). Center for re-calibration.

  • Page 11: Replacing The Slider Assembly And Slider Housing

    Lubriplate 3000W grease (the slider cup is the area on the slider assembly where the connecting rod and slider housing join and pivot). 14. Insert the slider assembly into the bushing end of the slider housing. © SprayTECH. All rights reserved.

  • Page 12: Replacing The Gears

    Insert the gear assembly into the bore in the Housing pump housing, pinion end first. Clutch Gear Housing Housing 15. Generously coat both faces of each of the crankshaft Hex Screw Engine Shaft thrust washers with grease. © SprayTECH. All rights reserved.
  • Page 13 Electrostatic discharge (ESD) potential could cause 5. Line up the four holes around the outside of the clutch damage to electronic pressure control. Use SprayTECH field with the four set screw holes in the gear housing. ESD wrist strap P/N 0507958 or equivalent when working The clutch field wires should be at approximately the 1 or on electronic pressure control.

  • Page 14: Servicing The Fluid Section

    3. Turn off the engine and perform the Pressure Relief Procedure. Electrostatic discharge (ESD) potential could cause WARNING damage to electronic pressure control. Use SprayTECH ESD wrist strap P/N 0507958 or equivalent when working on electronic pressure control. Before proceeding, follow the Pressure Relief Procedure outlined previously in this manual.
  • Page 15 Outlet Valve damaged, reverse to the unused Retainer side or replace the seat. 26. Clean and inspect the outlet cage and outlet valve ball. Replace if they are worn or damaged. © SprayTECH. All rights reserved.
  • Page 16 54. Turn on the sprayer by following the procedure in the “Operation” section of this manual and check for leaks. NOTE: Repacking kit P/N 0509510 is available. For best results use all parts supplied in this kit. © SprayTECH. All rights reserved.

  • Page 17: Troubleshooting

    1. Turn the pressure control knob clockwise to supply power to the unit and increase the pressure setting. 2. Faulty or loose wiring. 2. Inspect or take to a SprayTECH authorized service center. 3. The gas tank is empty. 3. Fill the gas tank.

  • Page 18: Français

    électriques reliées à la terre. être placée sur PRIME pour libérer la pression. Consultez N’utilisez pas d’adaptateur 3 à 2. la PROCÉDURE DE LIBÉRATION DE PRESSION décrite dans le manuel de la pompe. Français © SprayTECH. Tous droits réservés.
  • Page 19 Unis ont été adoptées dans la loi Occupational safety and Health Act (OSHA). Ces normes, en particulier la partie 1910 des Normes générales et la partie 1926 des Normes de construction, doivent être consultées. Français © SprayTECH. Tous droits réservés.

  • Page 20: Español

    Inspeccione la manguera antes de cada uso. Sustituya compatibilidad con el aluminio. las mangueras o las piezas dañadas. Español © SprayTECH. Todos los derechos reservados.
  • Page 21 No repare nunca una manguera de pintura. Sustitúyala por una manguera conductora a alta presión. 13. No pulverice al aire libre si hace viento. 14. Desenchufe siempre el cable antes de trabajar en el equipo. Español © SprayTECH. Todos los derechos reservados.

  • Page 22: Parts Listings

    0509634 Port plug .............1 0296366 Spray gun (not shown) .......1 0091708 Tip assembly (not shown)......1 0509627 Control cover ..........1 0509863 Screw............4 0291000 Material hose, 1/4” x 50’ (not shown) ..1 0509187 Front cover w/label ........1 © SprayTECH. All rights reserved.

  • Page 23: Drive Assembly

    Clutch rotor ..........1 0509567 Drive shaft assembly ........1 0555617 Engine............1 0555902 Clutch field assembly........1 0509569 Hex screw ...........4 0507748 Cap .............1 0507786 Lock washer..........4 NOTE: All electrical work should be performed by a SprayTECH authorized service center. © SprayTECH. All rights reserved.

  • Page 24: Cart Assembly

    Spring holder (short) ........1 0509850 Rear wheel ..........2 0509210 Grease fitting ..........1 0509851 Washer .............2 0509250 Caster assembly........1 0509227 Spring washer ..........3 0509251 Lock nut, 3/4” ...........1 0509225 Castle nut ..........3 0555738 Bucket holder ...........1 © SprayTECH. All rights reserved.
  • Page 25 Screw ............2 0509856 Lock nut............1 0509285 Flat washer..........8 0509240 Strap............1 0509731 Cable (not shown) ........1 0509203 Gun trigger lever ........1 0509785 Hole plug (not shown) ......1 0509206 Mounting block .........1 0509987 Pail lid (optional, not shown) © SprayTECH. All rights reserved.

  • Page 26: Fluid Section Assembly

    Electrical Schematic Potentiometer Transducer E.P.C. Board Clutch Clutch White Switch Clutch 0555201 Switch Engine © SprayTECH. All rights reserved.

  • Page 27: Filter Assembly

    PRIME/SPRAY valve assembly....1 Item Part # Description Quantity 0509281 Shaft ............1 0509284 Axle.............1 0509279 Frame ............1 0509285 Flat washer ..........2 0509286 Hex screw ...........2 0509251 Lock nut ............2 0509283 Spacer ............2 0509282 Wheel............1 0509280 Locating ring ..........1 © SprayTECH. All rights reserved.

  • Page 28: Siphon Set

    0509877 Seal ............1 0509981 Hopper w/cover ........1 Labels Part # Description 0555894 Logo label, front 0509865 Safety label 0509866 Warning label 0509867 Fire and Explosion Hazard label 0295805 Shock Hazard label 0509819 “No Oil” label © SprayTECH. All rights reserved.
  • Page 29 Screw, socket head........1 0509207 Support arm..........1 0509772 Lock washer..........2 0509275 Gun control cable ........1 0509775 Screw, hex head ........2 0509210 Grease fitting ..........1 0091908 Tip assembly ..........1 0509213 Flanged bearing........2 0296359 Airless gun ..........1 0509220 Screw............1 © SprayTECH. All rights reserved.
  • Page 30 Lower spacer..........2 0507549 Lock nut............1 0509958 Flat washer..........3 0509959 Wheel ............1 0555317 Clamping knob .........2 0509960 Plug ............4 0509244 Travel adjustment screw ......1 0509961 Frame assembly........1 0509885 Nut............1 0509963 Gas spring axle ........1 0509964 Wheel axle..........1 © SprayTECH. All rights reserved.
  • Page 31 Notes © SprayTECH. All rights reserved.

  • Page 32: Limited Warranty

    Limited Warranty SprayTECH, a division of Wagner Spray Tech Corporation ("SprayTECH"), warrants that at the time of delivery to the original purchaser for use (“End User”), the equipment covered by this warranty is free from defects in material and workmanship. With the exception of any special, limited, or extended warranty published by SprayTECH, SprayTECH ’s obligation under this...
