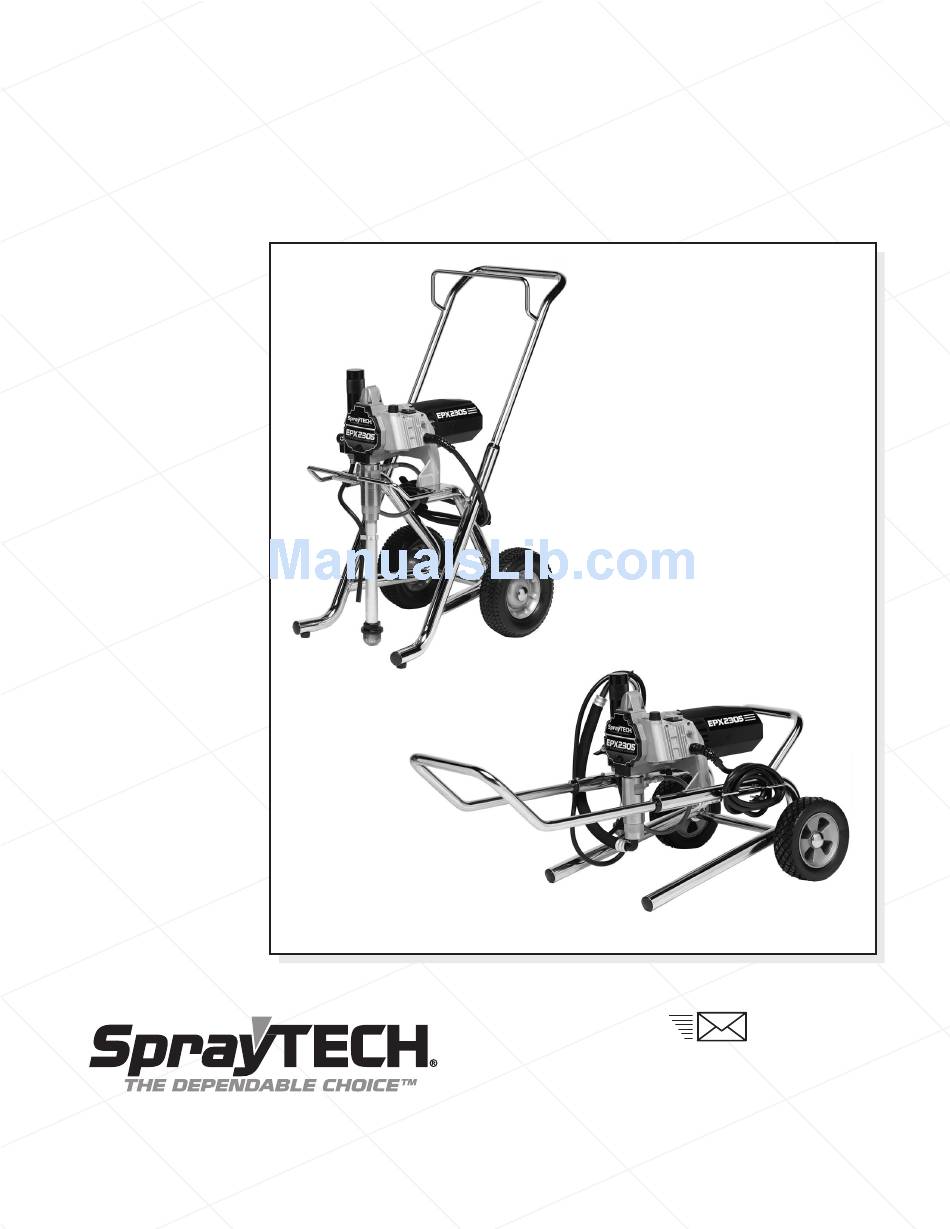

Piston pump 0507007 upright cart, 0507017 low boy cart
Hide thumbs
Table of Contents

Advertisement

Quick Links

EPX2305
Pisto n Pum p
Printed in the U. S. A.
Owner's Manual
Model Numbers:
0507007 Upright Cart
0507017 Low Boy Cart
SprayTECH
1770 Fernbrook Lane
Minneapolis, MN 55447
Technical Assistance: 1-800-292-4637
Order Entry: 1-800-443-4500
ww w. spr ayt e ch i nc . c om
0302 © 2002 SprayTECH. All rights reserved. Form No. 0507824A
Fax: 1-800-525-9501

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPX2305 and is the answer not in the manual?

Questions and answers

Jason
June 3, 2025

Can I spray texture with it ?

0

Related Manuals for SprayTECH EPX2305

Summary of Contents for SprayTECH EPX2305

  • Page 1 1770 Fernbrook Lane Minneapolis, MN 55447 Technical Assistance: 1-800-292-4637 Order Entry: 1-800-443-4500 Fax: 1-800-525-9501 ww w. spr ayt e ch i nc . c om Printed in the U. S. A. 0302 © 2002 SprayTECH. All rights reserved. Form No. 0507824A...

  • Page 2: Table Of Contents

    Do not use plastic drop cloths when PSI/221BAR fluid pressure. spraying flammable materials. PREVENTION: • Use lowest possible pressure to flush equipment. • NEVER aim the gun at any part of the body. © SprayTECH. All rights reserved.
  • Page 3 3200PSI/221 BAR. • Do not spray outdoors on windy days. • Wear clothing to keep paint off skin and hair. • Always unplug cord from outlet before working on equipment. © SprayTECH. All rights reserved.

  • Page 4: General Description

    7. Turn the unit off by moving the ON/OFF switch to the OFF position. 7. Plug the power cord into a properly grounded outlet at least 25’ from the spray area. NOTE: Make sure that the spray gun does not have a tip or tip guard installed. © SprayTECH. All rights reserved.

  • Page 5: Painting

    9. Move the PRIME/SPRAY valve up to the SPRAY position. lock to the locked position. 10. Turn the unit on. 8. Move the PRIME/SPRAY valve down to the PRIME position. 11. Unlock the gun by turning the gun trigger lock to the unlocked position. © SprayTECH. All rights reserved.

  • Page 6: Spraying

    • Area must be free of flammable vapors. • Follow all cleanup instructions. CAUTION The sprayer, hose, and gun should be cleaned thoroughly after daily use. Failure to do so permits material to build up, seriously affecting the performance of the unit. © SprayTECH. All rights reserved.

  • Page 7: Maintenance

    10. Move the PRIME/SPRAY valve up to its SPRAY position. for recommendations. 11. Turn the unit on. 4. If you have any further questions concerning your SprayTECH Airless Sprayer, call SprayTECH: WARNING Technical Service........1-800-292-4637 Fax ..........1-800-525-9501 Ground the gun by holding it against...

  • Page 8: Replacing The Filters

    Owner's Manuals (P/N 0297076 or P/N 0508832). Remove the filter bracket from the adapter plate. 14. Loosen and remove the four pump mounting screws. Lift the pump off of the cart and place face down on a work bench. © SprayTECH. All rights reserved.

  • Page 9: Replacing The Gears

    Push housing. Secure the pressure control assembly with the the retaining ring up into the groove inside the inlet valve four pressure control assembly screws. housing to secure the suction set assembly in position. © SprayTECH. All rights reserved.

  • Page 10: Servicing The Fluid Section

    32. Insert the upper support ring on top of the upper packing assembly. Large Beveled Edge © SprayTECH. All rights reserved.
  • Page 11 52. For Low Boy cart units, insert the elbow on the suction set assembly into the bottom of the inlet valve housing. Push the retaining ring up into the groove inside the inlet valve housing to secure the suction set assembly in position. © SprayTECH. All rights reserved.

  • Page 12: Troubleshooting

    4. Faulty or loose wiring. 4. Inspect or take to a SprayTECH authorized service center. 5. Excessive motor temperature. 5. Allow motor to cool.
  • Page 13 The unit lacks power. 1. The pressure adjustment is too low. 1. Rotate the pressure control knob clockwise to increase the pressure setting. 2. Improper voltage supply. 2. Reconnect the input voltage for 120V AC. © SprayTECH. All rights reserved.

  • Page 15: Français

    • Tous les accessoires doivent être homologués pour une pression égale ou supérieure à 3200 lb/po2 / 221BAR. Cela s'applique, entre autres, aux têtes de pulvérisation, aux accessoires du pistolet et aux flexibles. Français © SprayTECH. Tous droits réservés.
  • Page 16 à une pression égale ou supérieure à 3200 lb/po2 / 221BAR. • Ne jamais pulvériser lorsqu'il vente. • Porter des vêtements pour protéger la peau et les cheveux contre tout contact avec la peinture. Français © SprayTECH. Tous droits réservés.

  • Page 17: Español

    Consulte el manual del motor • Todos los accesorios deben tener una capacidad de 3200 para obtener información completa de seguridad. lb/pulg2 / 221BAR o mayor. Esto incluye las boquillas de atomizador, pistolas, extensiones y mangueras. Español © SprayTECH. Todos los derechos reservados.
  • Page 18 3200 lb/pulg2 / 221 BAR o mayor. • No atomice en días con viento. • Use ropa que evite el contacto de la pintura con la piel y el cabello. Español © SprayTECH. Todos los derechos reservados.

  • Page 19: Parts List

    9822113 Ground washer ...........1 51357 Lock washer..........8 9800340 Ground screw ..........1 0507957 Screw............8 0507189 Pressure control assembly ......1 0507785 Return hose ..........1 9802896 Screw............4 0507783 Hose clamp..........1 ---------- Upright cart assembly.........1 5006536 Inlet screen ..........1 © SprayTECH. All rights reserved.

  • Page 20: Drive Assembly

    Logo label, left 0507861 Logo label, right 0295803 Warning label, explosion 0295804 Warning label, injection 0295805 Shock hazard label 0507855 “Press to Reset” label 0508330 PRIME/SPRAY knob label 0507856 PRIME/SPRAY label 0507857 Pressure increase label © SprayTECH. All rights reserved.

  • Page 21: Fluid Section Assembly

    NOTE: When repacking the fluid section, make sure the raised lip on the bottom of the lower packing is fully outside the packing around the piston rod after insertion of the piston rod. © SprayTECH. All rights reserved.

  • Page 22: Upright Cart Assembly

    Cart weldment (includes items 6, 8, and 9) .1 05045 Outlet fitting..........1 13538 Bumper ............2 02518 Nipple, 1/4” ..........1 54458 Screw............2 0507774 Screw............4 0507655 Cord wrap ...........2 0295608 Screw............4 0295606 Washer............4 0294534 Spacer ............4 0278373 Wheel............2 9890104 Cap .............2 © SprayTECH. All rights reserved.

  • Page 23: Pressure Control Assembly

    (includes items 4–10) .........1 0294534 Wheel spacer..........4 0295606 Washer............4 9885546 Plug.............2 0295608 Screw............4 0295609 Washer............2 0270394 Wheel............2 0295607 Sleeve............2 0507949 Cart weldment (includes items 3 and 13)...1 9841504 Snap button ..........2 9885571 Plug.............2 0295610 Roll pin............2 © SprayTECH. All rights reserved.

  • Page 24: Electrical Schematic

    WHITE WHITE Rectifier TP2 TP3 BLACK Motor GREEN MOTOR Ground Electronic Control Board (0507212) Wire Assembly (0507974) BLACK LINE LOAD Circuit Breaker NOTE: All electrical work should be performed by a SprayTECH authorized service center. © SprayTECH. All rights reserved.

  • Page 25: Limited Warranty

    SprayTECH’s option, refund to the original purchaser the full purchase price for the product in exchange for the return of that product. However, SprayTECH will not replace or repair any fluid pump component on account of wear more than once during the two year warranty period.
