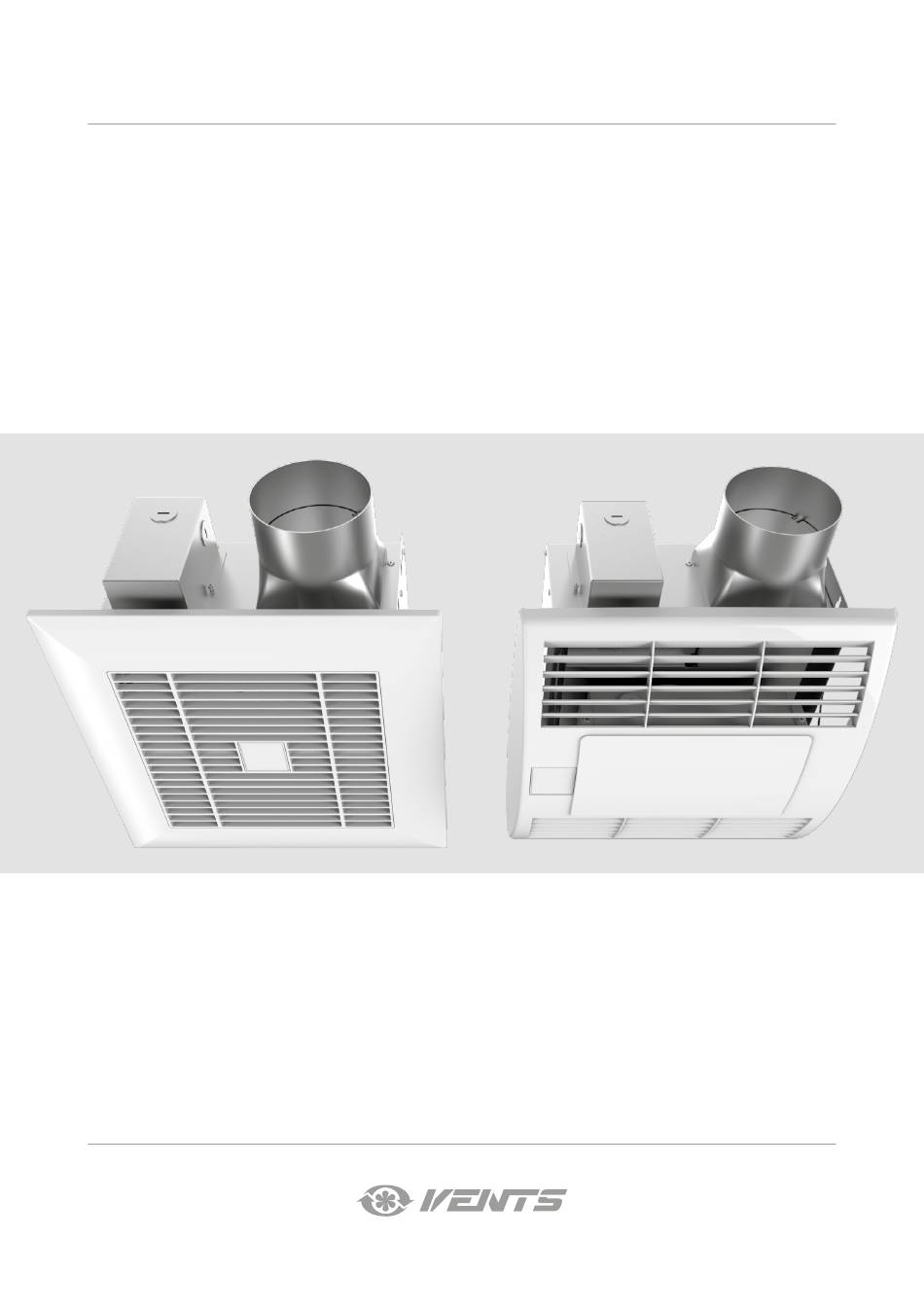

- Page 1 USER’S MANUAL CBF LP 110 DC CBF LP 110 DC TH/TP CBF LP 110 DC LigHT CBF LP 110 DC LigHT TH/TP Centrifugal ceiling extract fan...
-
Page 2: Table Of Contents
The manual contains information about purpose, technical details, operating principle, design, and installation of the CBF LP 110 DC (Light) (TH/TP) unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country. -
Page 3: Safety Requirements
SAFETY REQUiREMENTS • Please read the user’s manual carefully prior to installing and operating the unit. • All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. - Page 4 CBF LP 110 DC (Light) (TH/TP) • Do not touch the unit controls • Do not wash the unit with with wet hands. water. • Do not carry out the • Protect the electric parts of the installation and maintenance unit against ingress of water.
-
Page 5: Purpose
PURPOSE The centrifugal ceiling extract fan CBF LP 110 DC (Light) (TH/TP) is designed for extract ventilation of small to medium-sized premises. The unit is rated for continuous operation. THE UNiT SHOULD NOT BE OPERATED BY CHiLDREN OR PERSONS WiTH REDUCED PHYSiCAL, MENTAL, OR SENSORY CAPACiTiES, OR THOSE WiTHOUT THE APPROPRiATE TRAiNiNg. -
Page 6: Technical Data
CBF LP 110 DC (Light) (TH/TP) TECHNiCAL DATA The fan is designed for indoor application with the ambient temperature ranging from +1 ˚C up to +40 ˚C and relative humidity up to 80 %. The unit is rated as a Class I electrical appliance. -
Page 7: Design And Functioning
TECHNiCAL DATA CBF LP 110 DC, CBF LP 110 DC TH/TP Parameter CBF LP 110 DC Light, CBF LP 110 DC Light TH/TP Frequency [Hz] 50/60 Voltage [V] 100-240 Rated fan power [W] Rated lamp power [W*] 2 x 10... -
Page 8: Mounting And Set-Up
CBF LP 110 DC (Light) (TH/TP) The fan casing is made of galvanized steel. The fan casing includes an exhaust spigot with a back draft damper to prevent air back flow. The terminal box comprises the terminals for wiring of the fan and is attached to the fan casing. The decorative grille is fixed to the casing via the springs inserted in the hooks. - Page 9 MOUNTiNg SEQUENCE 1. Install the fan in the space between the joists using the screws. Vertical mounting to joists on the wall is allowed. 2. Connect the fan of a required diameter. 3. Connect the LED lamps (included in the delivery set) for the Light models. Optional: connect a humidity or motion sensor (sold separately).
-
Page 10: Connection To Power Mains
CBF LP 110 DC (Light) (TH/TP) CONNECTiON TO POWER MAiNS POWER OFF THE POWER SUPPLY PRiOR TO ANY OPERATiONS WiTH THE UNiT. THE UNiT MUST BE CONNECTED TO POWER SUPPLY BY A QUALiFiED ELECTRiCiAN. THE RATED ELECTRiCAL PARAMETERS OF THE UNiT ARE giVEN ON THE MANUFACTURER’S LABEL. -
Page 11: Control
CONTROL MiCROPROCESSOR CONTROL UNiT WiTH iNDiCATiON The operation of the fan with a DC motor is controlled by a microprocessor control unit. An indicator, control buttons and two connectors for connecting a humidity sensor and a motion sensor are located on the front panel of the control unit. Indicator Buttons Humidity... -
Page 12: Technical Maintenance
CBF LP 110 DC (Light) (TH/TP) SETUP OF THE OPERATiON MODES – the fan is turned off. «60», «70», «80», «90», «100», «110» – the fan operates in the mode of maintaining a constant air flow with a given value of the air flow rate displayed in cubic feet per minute (CFM). - Page 13 LAMP REPLACEMENT DiSCONNECT THE UNiT FROM POWER SUPPLY BEFORE ANY MAiNTENANCE OPERATiONS! 1. Remove the decorative grille: • Pull the grille to release the springs from the holders on the casing. • Take out the lamp power socket from the respective socket on the casing. •...
-
Page 14: Storage And Transportation Regulations
CBF LP 110 DC (Light) (TH/TP) STORAgE AND TRANSPORTATiON REgULATiONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. -
Page 15: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 16 CBF LP 110 DC (Light) (TH/TP) www.ventilation-system.com...
- Page 17 www.ventilation-system.com...
- Page 18 CBF LP 110 DC (Light) (TH/TP) www.ventilation-system.com...
-
Page 19: Certificate Of Acceptance
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. Customer’s Signature Seller’s Stamp iNSTALLATiON CERTiFiCATE The CBF LP 110 DC _____________ unit is installed pursuant to the requirements stated in the present user's manual. Company name Address Phone Number installation Technician’s Full Name... - Page 20 V183EN-01...
