Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCLAR-67-RNAB

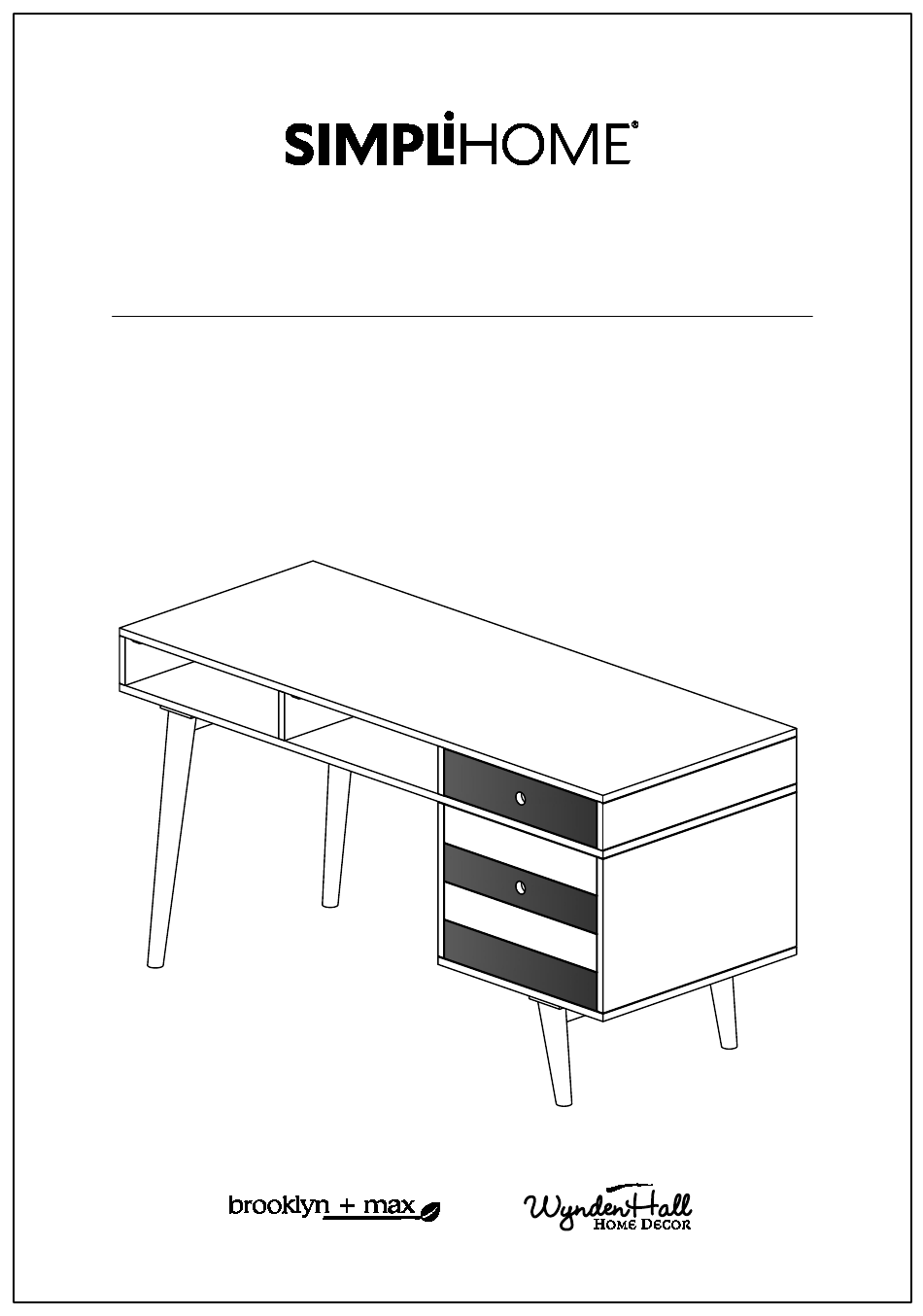

- Page 1 Clarkson / Wright / Mooney Desk with Side Drawers Model # AXCLAR-67-RNAB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCLAR-67-RNAB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 FRONT DRAWER BACK BOTTOM QTY 1 QTY 1 QTY 1 LEFT SIDE DRAWER RIGHT SIDE DRAWER BACK DRAWER QTY 1 QTY 1 QTY 1 BOTTOM DRAWER LEFT LEG RIGHT LEG...
- Page 8 Pre-Assembly Information Model # AXCLAR-67-RNAB Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK M6 X 30mm Ø8 X 30mm QTY 22 QTY 4 SETS QTY 8 WASHER ALLEN KEY BOLT Ø10/Ø6 x 1.5mm M6 x 35 mm ALLEN KEY QTY 12 QTY 12...
- Page 9 Components - Key Diagram Model # AXCLAR-67-RNAB...
- Page 10 Assembly Model # AXCLAR-67-RNAB Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes at back of Drawer Front E . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
- Page 11 Assembly Model # AXCLAR-67-RNAB Step 3 2. Align Drawer Back G with Drawer Bottom H and press firmly into slot . 3. Attach Drawer Back using two Allen Key Screws 1 through drilled holes on each Drawer Side FL , FR . 4.
- Page 12 Assembly Model # AXCLAR-67-RNAB Step 4 1. Insert two Dowels 3 into guide holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 13 Assembly Model # AXCLAR-67-RNAB Step 5 1. Align Wood Dowels with guide holes on Top A and attach Right Side BR to Top A . 2. Use three Allen Key Screws 1 to attach part BR through guide holes. 3. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 14 Assembly Model # AXCLAR-67-RNAB Step 6 1. Align Wood Dowels with guide holes on Top A and attach Left Side BL to Top A . 2. Use three Allen Key Screws 1 to attach part BL through guide holes. 3. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AXCLAR-67-RNAB Step 7 1. Use three Allen Key Screws 1 to attach part BL through guide holes. 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 16 Assembly Model # AXCLAR-67-RNAB Step 8 1. Align Wood Dowels with guide holes on Bottom Shelf D and attach Bottom Shelf D to Sides BL , BR . 2. Use nine Allen Key Screws 1 to attach Bottom Shelf D through guide holes to pre-drilled holes of parts BL , BR , C .
- Page 17 Assembly Model # AXCLAR-67-RNAB Step 9 1. Attach Legs I , J to parts A , D using Allen Key Bolts 5 , Lock Washers 6 and Washers 7 through guide holes. 2. Use Allen Key 4 to tighten Bolts. Do not over-tighten.
- Page 18 Assembly Model # AXCLAR-67-RNAB Step 10 1. Insert assembled drawer into glides on assembled Desk. Note: Levelers on bottom of legs can be adjusted if floor is uneven.
