SIMPLIHOME brooklyn + max WyndenHall AXCLAR-15-RNAB Manual

Clarkson / wright / mooney medium storage cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual

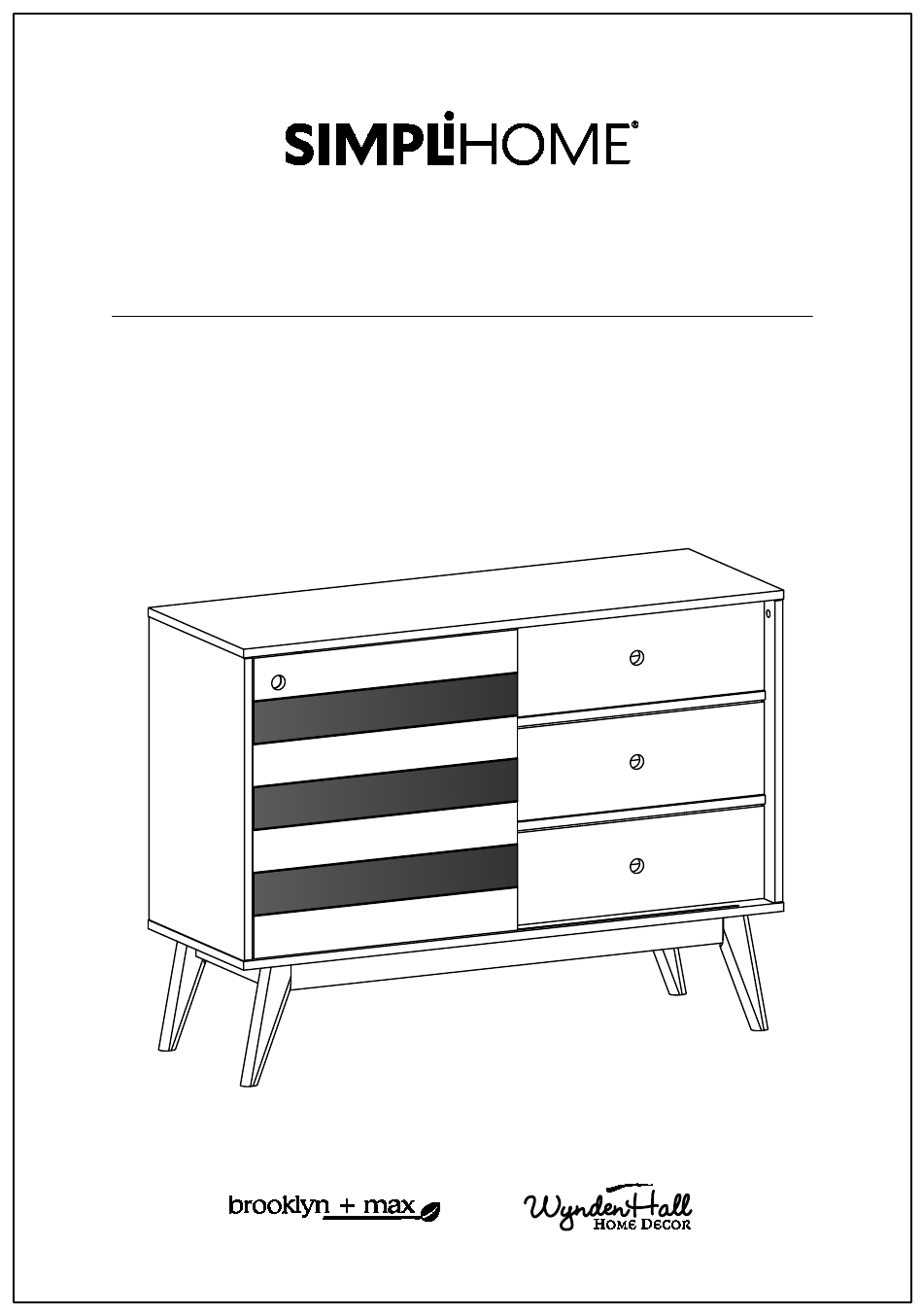

Clarkson / Wright / Mooney
Medium Storage Cabinet
Model # AXCLAR-15-RNAB
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCLAR-15-RNAB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCLAR-15-RNAB

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCLAR-15-RNAB

  • Page 1 Clarkson / Wright / Mooney Medium Storage Cabinet Model # AXCLAR-15-RNAB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCLAR-15-RNAB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 MIDDLE FRAME BOTTOM SHELF DIVIDER QTY 2 QTY 1 QTY 1 Warning Label SHELF TOP PANEL BOTTOM PANEL QTY 2 QTY 1 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCLAR-15-RNAB Part Description JOINING STRIP QTY 1 QTY 2 QTY 2 DOOR LEFT DRAWER SIDE DRAWER FRONT QTY 1 QTY 3 QTY 3 DRAWER BACK DRAWER BOTTOM RIGHT DRAWER SIDE QTY 3 QTY 3 QTY 3...
  • Page 9 Pre-Assembly Information Model # AXCLAR-15-RNAB Hardware Description WOOD DOWEL CAM LOCK PIN ALLEN KEY SCREW CAM LOCK M6 X 30mm Ø8 X 30mm QTY 14 SETS QTY 38 QTY 18 PHILLIPS SCREW ROUND HEAD ALLEN KEY BOLT SHELF SUPPORT M4 X 15mm M6 x 60 mm QTY 12 QTY 24...
  • Page 10 Components - Key Diagram Model # AXCLAR-15-RNAB...
  • Page 11 Assembly Model # AXCLAR-15-RNAB Step 1 1. Attach four Cam Lock Pins 3 into pre-drilled holes on back of Drawer Front M . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
  • Page 12 Assembly Model # AXCLAR-15-RNAB Step 3 Step 4 1. Align Drawer Back O with Drawer Bottom P and press firmly into slot. 2. Attach Drawer Back using two Allen Key Screws 1 through drilled holes on each Drawer Side NL , NR . 3.
  • Page 13 Assembly Model # AXCLAR-15-RNAB Step 5 1. Attach two Cam Lock Pins 3 into pre-drilled holes on Top A . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert four Dowels 2 into guide holes on each part C , D . 4.
  • Page 14 Assembly Model # AXCLAR-15-RNAB Step 6 1. Insert two Dowels 2 into guide holes on part E . 2. Insert four Dowels 2 into guide holes on each part F . 3. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 15 Assembly Model # AXCLAR-15-RNAB Step 7 1. Align Wood Dowels with guide holes on Right Side C and attach each part F to Right Side C . 2. Use two Allen Key Screws 1 to attach each part F through guide holes to pre-drilled holes of Right Side C .
  • Page 16 Assembly Model # AXCLAR-15-RNAB Step 8 1. Repeat Step 7 for Centre Divider E .
  • Page 17 Assembly Model # AXCLAR-15-RNAB Step 9 1. Align Wood Dowels and Cam Lock Pins with guide holes and attach parts C , E to Top A . 2. Use three Allen Key Screws 1 to attach parts C , E through guide holes to pre-drilled holes of Top A .
  • Page 18 Assembly Model # AXCLAR-15-RNAB Step 10 1. Align Wood Dowels and Cam Lock Pins with guide holes and attach part B to Top A . 2. Use three Allen Key Screws 1 to attach part B through guide holes to pre-drilled holes of Top A .
  • Page 19 Assembly Model # AXCLAR-15-RNAB Step 11 1. Align Wood Dowels with guide holes on Bottom Shelf D and attach parts B , C , E to Bottom Shelf D . 2. Use nine Allen Key Screws 1 to attach Bottom Shelf D through guide holes to pre-drilled holes of parts B , C , E .
  • Page 20 Assembly Model # AXCLAR-15-RNAB Step 12 1. Attach Legs K1 , K2 to Bottom Shelf D using eight Allen Key Bolts 6 , eight Lock Washers 7 and eight Washers 8 through guide holes. 2. Use Allen Key 9 to tighten Bolts. Do not over-tighten.
  • Page 21 Assembly Model # AXCLAR-15-RNAB Step 13 Slot 1. Slide the wheels on bottom of Door L to the slot on Bottom Shelf D . 2. Pull down the pins on top of door then place the door to be parallel with cabinet side post.
  • Page 22 Assembly Model # AXCLAR-15-RNAB Warning Label Step 14 Note: 1. Attach the Top Back Panel H to back frame by using Phillips Screws 4 . Only 1st top row of screws ( five screws ) to be screwed in advance. 2.
  • Page 23 Assembly Model # AXCLAR-15-RNAB Step 15 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 5 for each Cabinet Shelf G in desired location . 2. Two Shelf Supports 5 may be used on back top of each Cabinet Shelf G as a tipping restraint.
  • Page 24 Assembly Model # AXCLAR-15-RNAB Step 16 1. Insert assembled drawers into glides on assembled cabinet. Note: Levelers on bottom of legs can be adjusted if floor is uneven.
  • Page 25 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 17 NOTE: The screwdriver is not included in the hardware pack.
  • Page 26 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
