SIMPLIHOME brooklyn+max WyndenHall Lowry Manual

Sideboard buffet
Hide thumbs Also See for brooklyn+max WyndenHall Lowry:

Advertisement

Quick Links

Download this manual

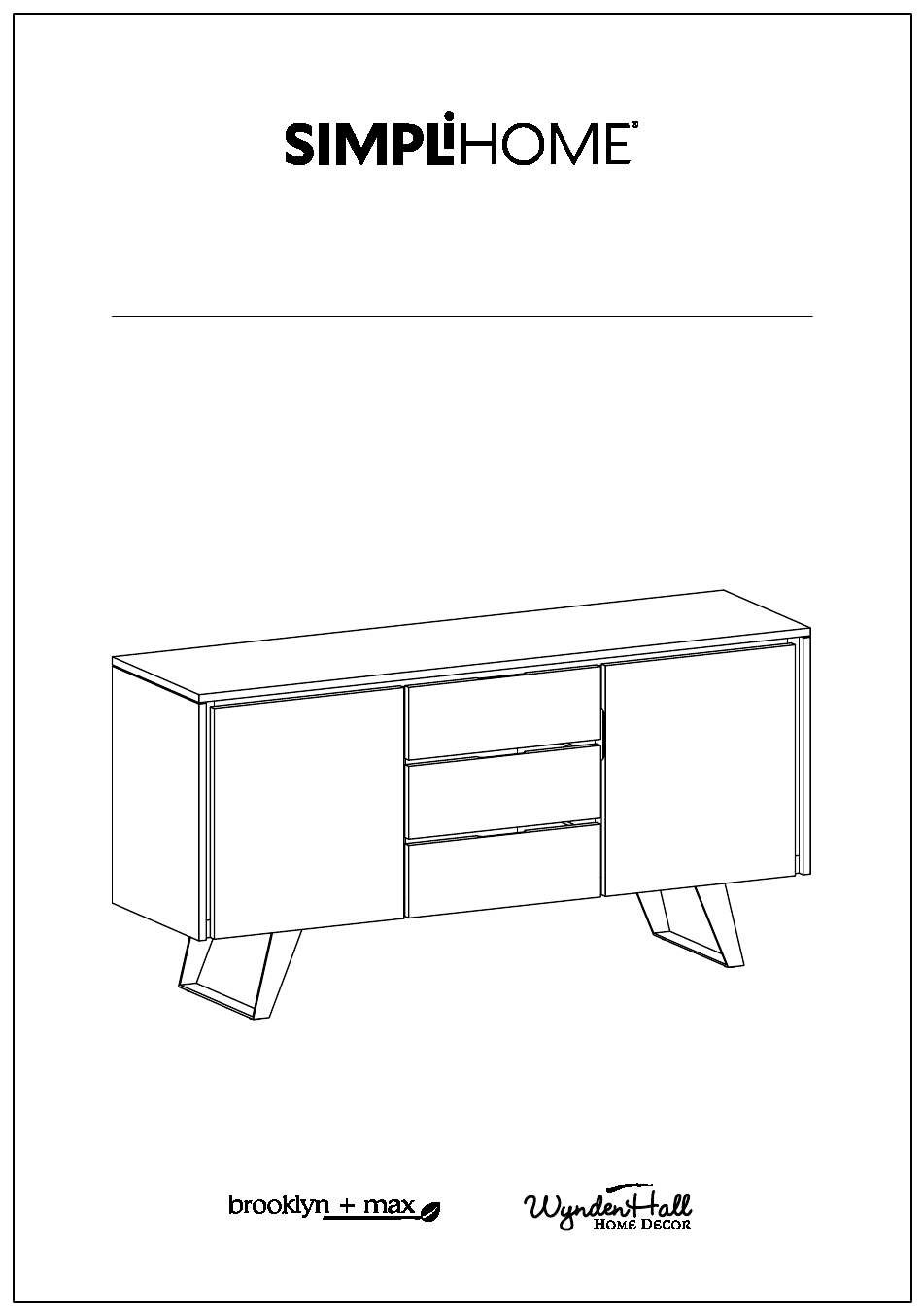

Lowry / Mitchell / Fulton

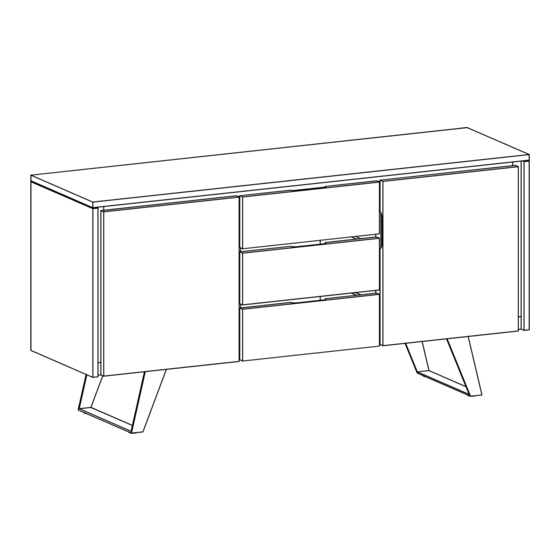

Sideboard Buffet
Model # AXCLRY-10GR
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn+max WyndenHall Lowry and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn+max WyndenHall Lowry

Summary of Contents for SIMPLIHOME brooklyn+max WyndenHall Lowry

  • Page 1 Lowry / Mitchell / Fulton Sideboard Buffet Model # AXCLRY-10GR...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
  • Page 7 Pre-Assembly Information Model # AXCLRY-10GR Part Description BOTTOM SHELF LEFT SIDE QTY 1 QTY 1 QTY 1 RIGHT SIDE LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 MIDDLE FRAME LEFT DOOR RIGHT DOOR QTY 2 QTY 1 QTY 1 Warning Label SHELF TOP BACK PANEL...
  • Page 8 Pre-Assembly Information Model # AXCLRY-10GR Part Description JOINING STRIP DRAWER FRONT LEFT DRAWER SIDE QTY 1 QTY 3 QTY 3 RIGHT DRAWER SIDE DRAWER BACK DRAWER BOTTOM QTY 3 QTY 3 QTY 3 QTY 2...
  • Page 9 Pre-Assembly Information Model # AXCLRY-10GR Hardware Description LOCK WASHER WASHER ALLEN KEY BOLT ALLEN KEY SCREW M8 x 20 mm M6 X 30mm Ø12 / Ø8 x 1.5 mm Ø19 / Ø8 x 1 mm QTY 12 QTY 48 QTY 12 QTY 12 PHILLIPS SCREW ALLEN KEY...
  • Page 10 Components - Key Diagram Model # AXCLRY-10GR...
  • Page 11 Assembly Model # AXCLRY-10GR Step 1 1. Attach four Cam Lock Pins 14 to pre-drilled holes at back of Drawer Front K . 2. Use Phillips screwdriver secure Cam Lock Pins.
  • Page 12 Assembly Model # AXCLRY-10GR Step 2 1. Align Cam Lock Pins with drilled holes and attach Drawer Sides LL , LR . 2. Insert two Cam Locks 14 into drilled holes on each Drawer Side LL , LR . 3. Use Phillips screwdriver secure Cam Locks.
  • Page 13 Assembly Model # AXCLRY-10GR Step 3 1. Slide Drawer Bottom N firmly into slots on Drawer Sides LL , LR and Drawer Front K . Step 4 1. Align Drawer Back M with Drawer Bottom N and press firmly into slot . 2.
  • Page 14 Assembly Model # AXCLRY-10GR Step 5 & 1. Insert two Dowels 11 into drilled holes on each Left Divider DL and Right Divider DR . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 15 Assembly Model # AXCLRY-10GR Step 6 1. Attach Middle Frame E to Right Divider DR and Left Divider DL using twelve Allen Key Screws 4 ( six Screws / each Divider ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten.

  • Page 16: Bottom View

    Assembly Model # AXCLRY-10GR Step 7 BOTTOM VIEW TOP VIEW 1. Insert four Dowels 11 into drilled holes on Bottom Shelf B . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 17 Assembly Model # AXCLRY-10GR Step 8 1. Attach Right Divider DR and Left Divider DL to Bottom Shelf B using six Allen Key Screws 4 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
  • Page 18 Assembly Model # AXCLRY-10GR Step 9 & 1. Insert two Dowels 11 into drilled holes on each Left Side CL and Right Side CR . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 19 Assembly Model # AXCLRY-10GR Step 10 1. Attach Bottom Shelf B to Left Side CL using three Allen Key Screws 4 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
  • Page 20 Assembly Model # AXCLRY-10GR Step 11 1. Repeat Step 10 for Right Side CR .
  • Page 21 Assembly Model # AXCLRY-10GR Step 12 1. Attach Top A to Sides CL , CR using six Allen Key Screws 4 ( three Screws / each Side ). 2. Attach Top A to Dividers DL , DR using six Allen Key Screws 4 ( three Screws / each Side ).
  • Page 22 Assembly Model # AXCLRY-10GR Step 13 1. Attach Legs O to Bottom Shelf B . 2. Use twelve Allen Key Bolts 1 , twelve Lock Washers 2 and twelve Washers 3 to secure part O and B (six Blots, six Lock Washers and six Washers on each Leg). 3.
  • Page 23 Assembly Model # AXCLRY-10GR Warning Label Step 14 NOTE: The screwdriver is not included in the hardware pack. 1. Attach the Top Back Panel H to back frame by using Phillips Screws 6 . Only 1st top row of screws ( six screws ) to be screwed in advance. 2.
  • Page 24 Assembly Model # AXCLRY-10GR Step 15 1. Attach Adjustable Hinges 12 to Doors FL , FR using Phillips Screws 10 into guide holes on Doors FL , FR .
  • Page 25 Assembly Model # AXCLRY-10GR Step 16 1. Attach Adjustable Hinges 12 on Doors FL , FR to Sides CL , CR using Phillips Screws 10 into guide holes on Sides CL , CR . 2. Attach Magnets 7 using Phillips Screws 9 into guide holes on Left Divider DL and Right Divider DR .

  • Page 26: Important Note

    Assembly Model # AXCLRY-10GR IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II .
  • Page 27 Assembly Model # AXCLRY-10GR Step 17 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 8 for each Shelf G in desired location . 2. Two Shelf Supports 8 may be used on back top of each Shelf G as a tipping restraint.
  • Page 28 Assembly Model # AXCLRY-10GR Step 18 1. Insert assembled drawers into glides on assembled sideboard.
  • Page 29 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 19 NOTE: The screwdriver is not included in the hardware pack.
  • Page 30 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
