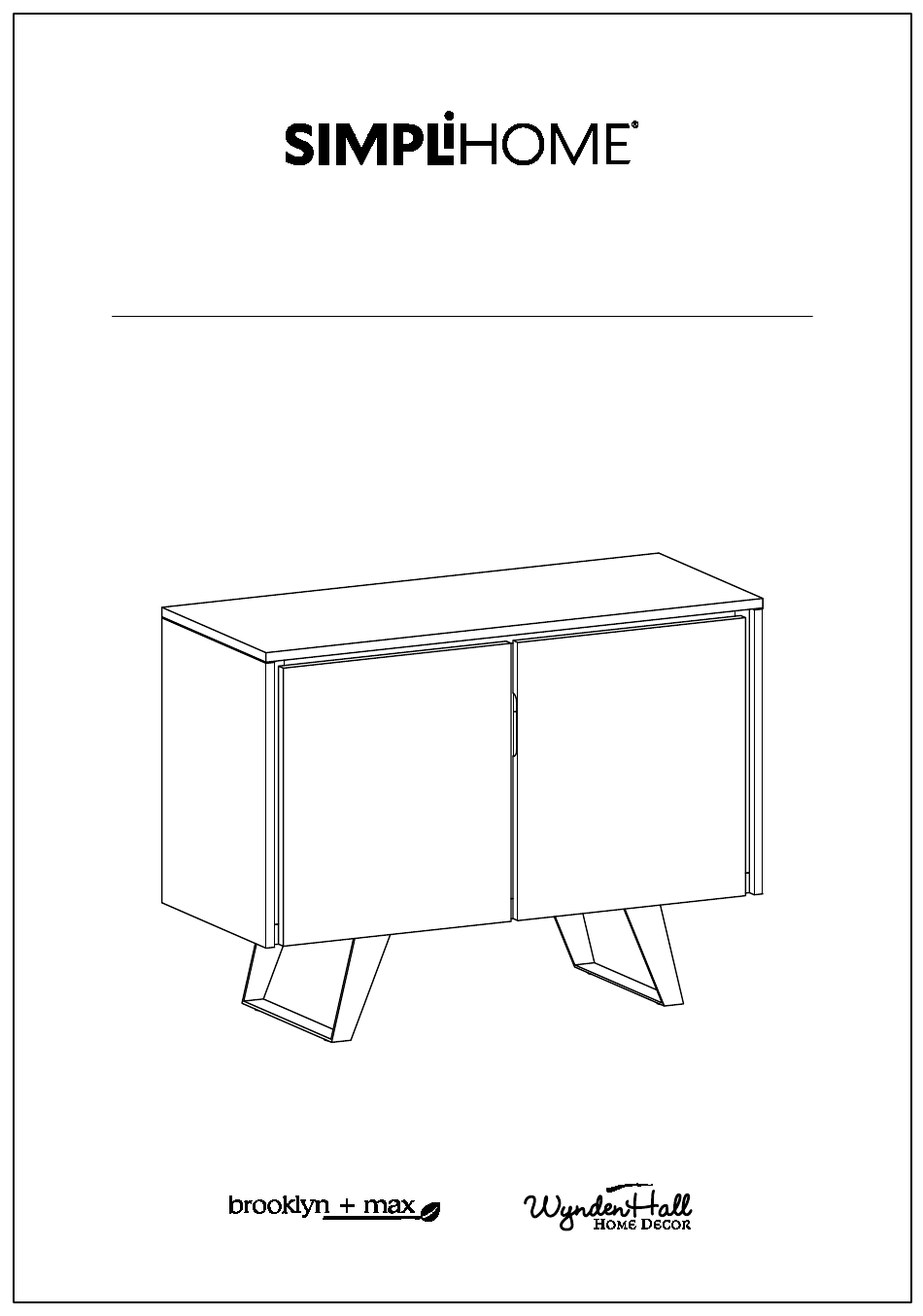

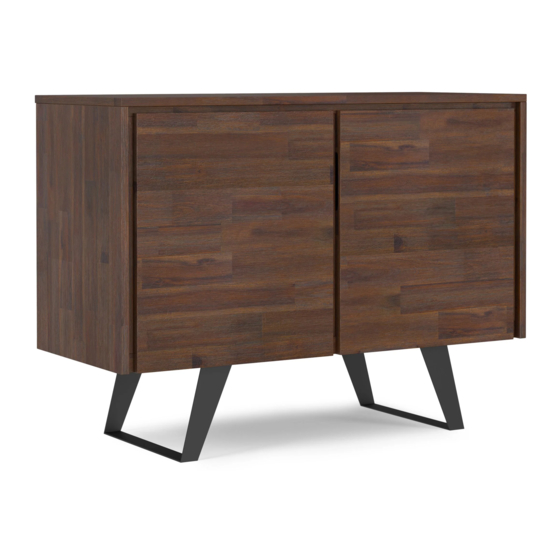

- Page 1 Lowry / Mitchell / Fulton 2 Door Sideboard Buffet Model # AXCLRY-102D-DCB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 Pre-Assembly Information Model # AXCLRY-102D-DCB Part Description BOTTOM SHELF LEFT SIDE QTY 1 QTY 1 QTY 1 LEFT DOOR RIGHT SIDE DIVIDER QTY 1 QTY 1 QTY 1 Warning Label SHELF TOP BACK PANEL RIGHT DOOR QTY 2 QTY 1 QTY 1 BOTTOM BACK PANEL JOINNING STRIP...
- Page 8 Pre-Assembly Information Model # AXCLRY-102D-DCB Hardware Description WASHER LOCK WASHER ALLEN KEY BOLT ALLEN KEY SCREW Ø12 / Ø8 x 1.5 mm Ø19 / Ø8 x 1 mm M8 x 20 mm M6 X 30mm QTY 12 QTY 12 QTY 12 QTY 18 PHILLIPS SCREW ROUND HEAD...
- Page 9 Components - Key Diagram Model # AXCLRY-102D-DCB...
- Page 10 Assembly Model # AXCLRY-102D-DCB Step 1 1. Insert Wood Dowels 6 into guide holes on Sides CL , CR , Bottom Shelf B and Divider D . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/3 length of Dowels should be exposed.
- Page 11 Assembly Model # AXCLRY-102D-DCB Step 2 1. Align Wood Dowels with guide holes on Bottom Shelf B and attach Divider D to Bottom Shelf B . 2. Use three Allen Key Screws 4 to attach Bottom Shelf B through guide holes. 3.
- Page 12 Assembly Model # AXCLRY-102D-DCB Step 3 1. Align Wood Dowels with guide holes on sides CL , CR and attach Sides CL , CR to Bottom Shelf B . 2. Use six Allen Key Screws 4 to attach Bottom Shelf B through guide holes. 3.
- Page 13 Assembly Model # AXCLRY-102D-DCB Step 4 1. Align Wood Dowels with guide holes on Top A and attach Sides CL , CR and Divider D to Top A . 2. Use three Allen Key Screws 4 to attach each Side CL , CR and Divider D through guide holes.
- Page 14 Assembly Model # AXCLRY-102D-DCB Step 5 1. Attach Legs J to Bottom Shelf B . 2. Use twelve Allen Key Bolts 1 , twelve Lock Washers 2 and twelve Washers 3 to secure Legs J and Bottom Shelf B (six Blots, six Lock Washers and six Washers on each Leg). 3.
- Page 15 Assembly Model # AXCLRY-102D-DCB Note: Step 6 Warning Label 1. Attach the Top Back Panel G to back frame by using Phillips Screws 7 . Only 1st top row of screws to be screwed in advance. 2. Insert the Bottom Back Panel H into the slot of Plastic Joining Strip I . 3.
- Page 16 Assembly Model # AXCLRY-102D-DCB Step 7 1. Attach Adjustable Hinges 11 to Doors EL , ER using Phillips Screws 12 into pre-drilled holes on Doors EL , ER . 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. 3. Attach Adjustable Hinges 11 on Doors EL , ER to Sides CL , CR using Phillips Screws 12 into pre-drilled holes on Sides CL , CR .
- Page 17 Assembly Model # AXCLRY-102D-DCB Step 8 1. Attach Magnets 9 using Phillips Screws 10 into pre-drilled holes on Divider D . 2. Attach Magnet Plates 9 to top corner of Doors EL , ER using Phillips Screws 10 into pre-drilled holes on Doors EL , ER . 3.
-
Page 18: Important Note
Assembly Model # AXCLRY-102D-DCB Step 9 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 19 Assembly Model # AXCLRY-102D-DCB Step 10 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 8 for each Shelf F in desired location. 2. Two Shelf Supports 8 may be used on back top of each Shelf F as a tipping restraint.
- Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 11 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
