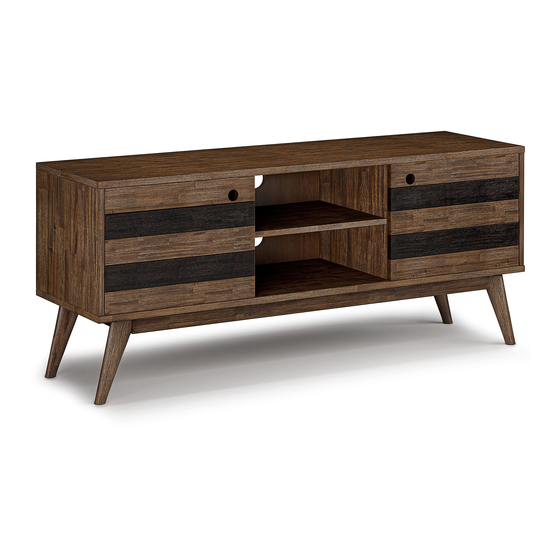

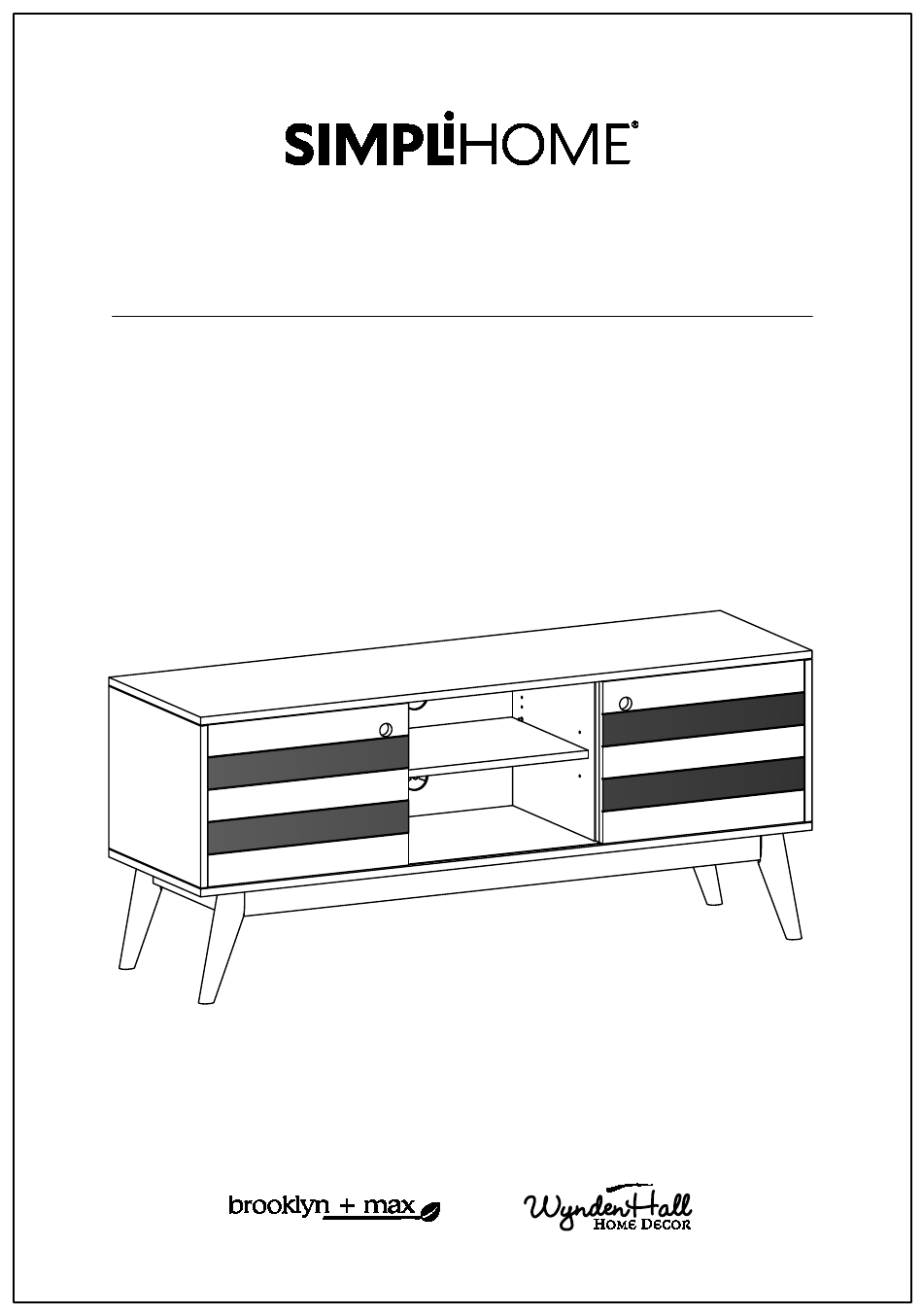

- Page 1 Clarkson / Wright / Mooney Low TV Stand Model # AXCLAR-18-RNAB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. -
Page 8: Bottom Shelf
Pre-Assembly Information Model # AXCLAR-18-RNAB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 BACK SHELF LEFT DOOR QTY 1 QTY 3 QTY 1 RIGHT DOOR QTY 1 QTY 2 QTY 2... - Page 9 Pre-Assembly Information Model # AXCLAR-18-RNAB Hardware Description PHILLIPS SCREW ROUND HEAD ALLEN KEY SCREW WOOD DOWEL M4 X 15mm M6 X 30mm Ø8 X 30mm QTY 20 QTY 24 QTY 12 LOCK WASHER ALLEN KEY BOLT SHELF SUPPORT M6 x 60 mm Ø10 / Ø6 x 1.5 mm QTY 18 QTY 8...
- Page 10 Components - Key Diagram Model # AXCLAR-18-RNAB...
- Page 11 Assembly Model # AXCLAR-18-RNAB Step 1 1. Insert four Dowels 2 into guide holes on each part BL , BR . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 2 1.
- Page 12 Assembly Model # AXCLAR-18-RNAB Step 3 1. Align Wood Dowels with guide holes on Top A and attach Sides BL , BR to Top A . 2. Use three Allen Key Screws 1 to attach each Side BL , BR through guide holes. 3.
- Page 13 Assembly Model # AXCLAR-18-RNAB Step 4 1. Use three Allen Key Screws 1 to attach each Divider DL , DR through guide holes. 2. Use Allen Key 8 to tighten Screws. Do not over-tighten.
- Page 14 Assembly Model # AXCLAR-18-RNAB Step 5 1. Align Wood Dowels with guide holes on Bottom Shelf C and attach Bottom Shelf C to parts BL , BR , DL , DR. 2. Use twelve Allen Key Screws 1 to attach Bottom Shelf C through guide holes. 3.
- Page 15 Assembly Model # AXCLAR-18-RNAB Step 6 1. Attach Legs H1 , H2 to Bottom Shelf C using eight Allen Key Bolts 5 , eight Lock Washers 6 and eight Washers 7 through guide holes. 2. Use Allen Key 8 to tighten Bolts. Do not over-tighten.
- Page 16 Assembly Model # AXCLAR-18-RNAB Step 7 Slot 1. Slide the wheels on bottom of Doors GL , GR to the slot on Bottom Shelf C . 2. Pull down the pins on top of door then place the door to be parallel with cabinet side post.
- Page 17 Assembly Model # AXCLAR-18-RNAB Step 8 Note: Warning Label 1. Attach the Back Panel E to back frame using Phillips Screws Round Head 3 through guide holes. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 18 Assembly Model # AXCLAR-18-RNAB Step 9 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3...
- Page 19 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 10 NOTE: The screwdriver is not included in the hardware pack.
- Page 20 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
