Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCLAR-16-RNAB

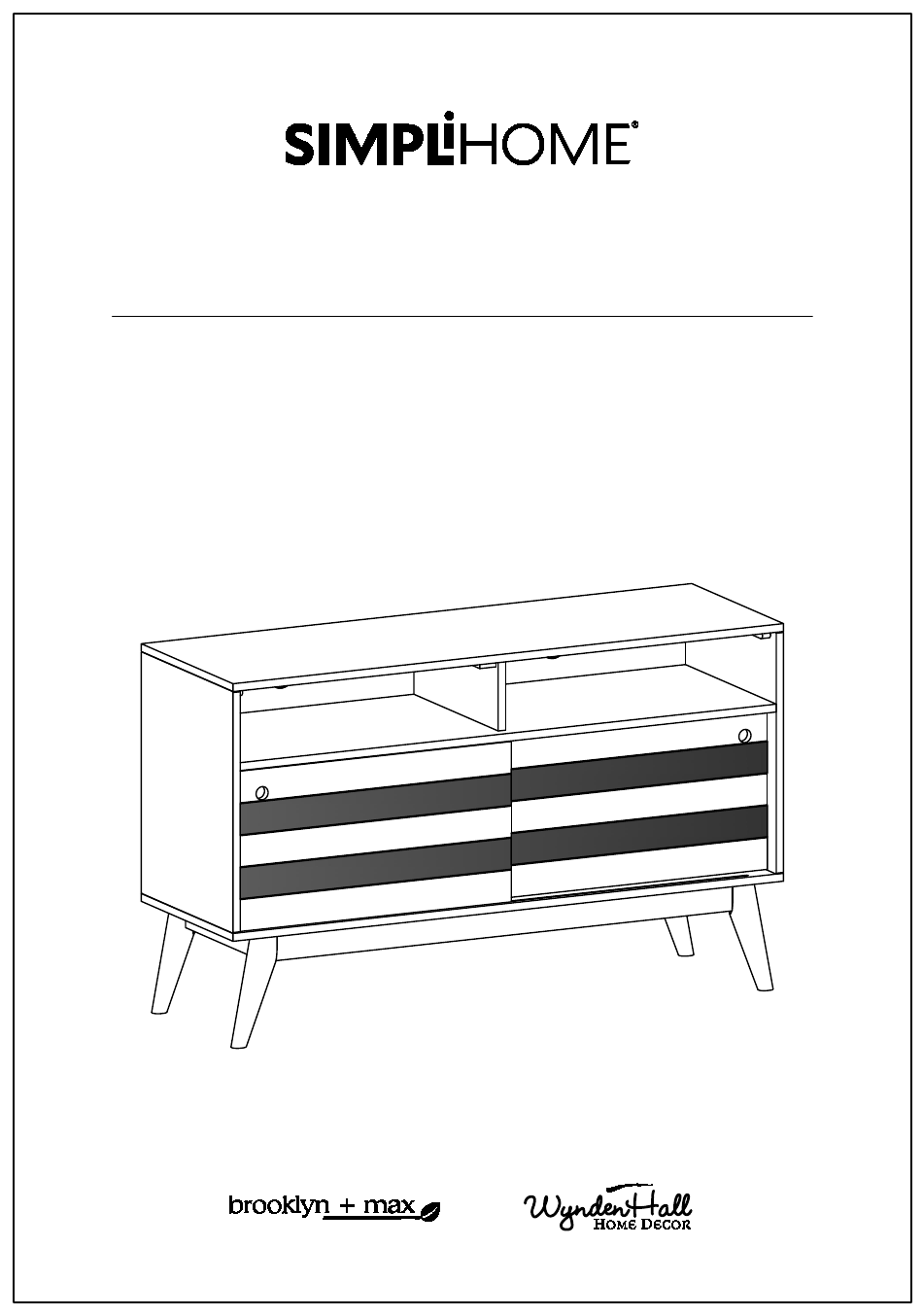

- Page 1 Clarkson / Wright / Mooney TV Stand Model # AXCLAR-16-RNAB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 200 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. -
Page 8: Bottom Shelf
Pre-Assembly Information Model # AXCLAR-16-RNAB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF UPPER DIVIDER MIDDLE SHELF QTY 1 QTY 1 QTY 1 LOWER DIVIDER SHELF UPPER BACK QTY 1 QTY 2 QTY 1... -
Page 9: Pre-Assembly Information
Pre-Assembly Information Model # AXCLAR-16-RNAB Part Description LOWER BACK LEFT DOOR RIGHT DOOR QTY 1 QTY 1 QTY 1 QTY 2 QTY 2... - Page 10 Pre-Assembly Information Model # AXCLAR-16-RNAB Hardware Description ALLEN KEY SCREW WOOD DOWEL CAM LOCK PIN M6 X 30mm Ø8 X 30mm CAM LOCK QTY 24 QTY 6 SETS QTY 10 PHILLIPS SCREW ROUND HEAD ALLEN KEY BOLT M4 X 15mm SHELF SUPPORT M6 x 60 mm QTY 24...
- Page 11 Components - Key Diagram Model # AXCLAR-16-RNAB...
- Page 12 Assembly Model # AXCLAR-16-RNAB Step 1 1. Attach three Cam Lock Pins 3 into pre-drilled holes on each Side BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Dowels 2 into guide holes on each parts BL , BR , F . 4.
- Page 13 Assembly Model # AXCLAR-16-RNAB Step 2 1. Align Cam Lock Pins with guide holes on part D and attach Sides BL , BR to part D . 2. Insert six Cam Locks 3 into guide holes on part D . 3.
- Page 14 Assembly Model # AXCLAR-16-RNAB Step 3 1. Use three Allen Key Screws 1 to attach Divider E through guide holes. 2. Use Allen Key 9 to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AXCLAR-16-RNAB Step 4 1. Align Wood Dowels with guide holes on Top A and attach parts BL , BR , E to Top A . 2. Use three Allen Key Screws 1 to attach each part BL , BR , E through guide holes. 3.
- Page 16 Assembly Model # AXCLAR-16-RNAB Step 5 1. Use three Allen Key Screws 1 to attach Divider F through guide holes. 2. Use Allen Key 9 to tighten Screws. Do not over-tighten.
- Page 17 Assembly Model # AXCLAR-16-RNAB Step 6 1. Align Wood Dowels with guide holes on Bottom Shelf C and attach parts BL , BR , E to Bottom Shelf C . 2. Use nine Allen Key Screws 1 to attach Bottom Shelf C through guide holes. 3.
- Page 18 Assembly Model # AXCLAR-16-RNAB Step 7 1. Attach Legs K1 , K2 to Bottom Shelf C using eight Allen Key Bolts 6 , eight Lock Washers 7 and eight Washers 8 through guide holes. 2. Use Allen Key 9 to tighten Bolts. Do not over-tighten.
- Page 19 Assembly Model # AXCLAR-16-RNAB Step 8 Slot...
- Page 20 Assembly Model # AXCLAR-16-RNAB Step 9 Note: 1. Attach the Back Panels H , I to back frame using Phillips Screws Round Head 4 through guide holes. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 21 Assembly Model # AXCLAR-16-RNAB Step 10 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3...
- Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 11 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
