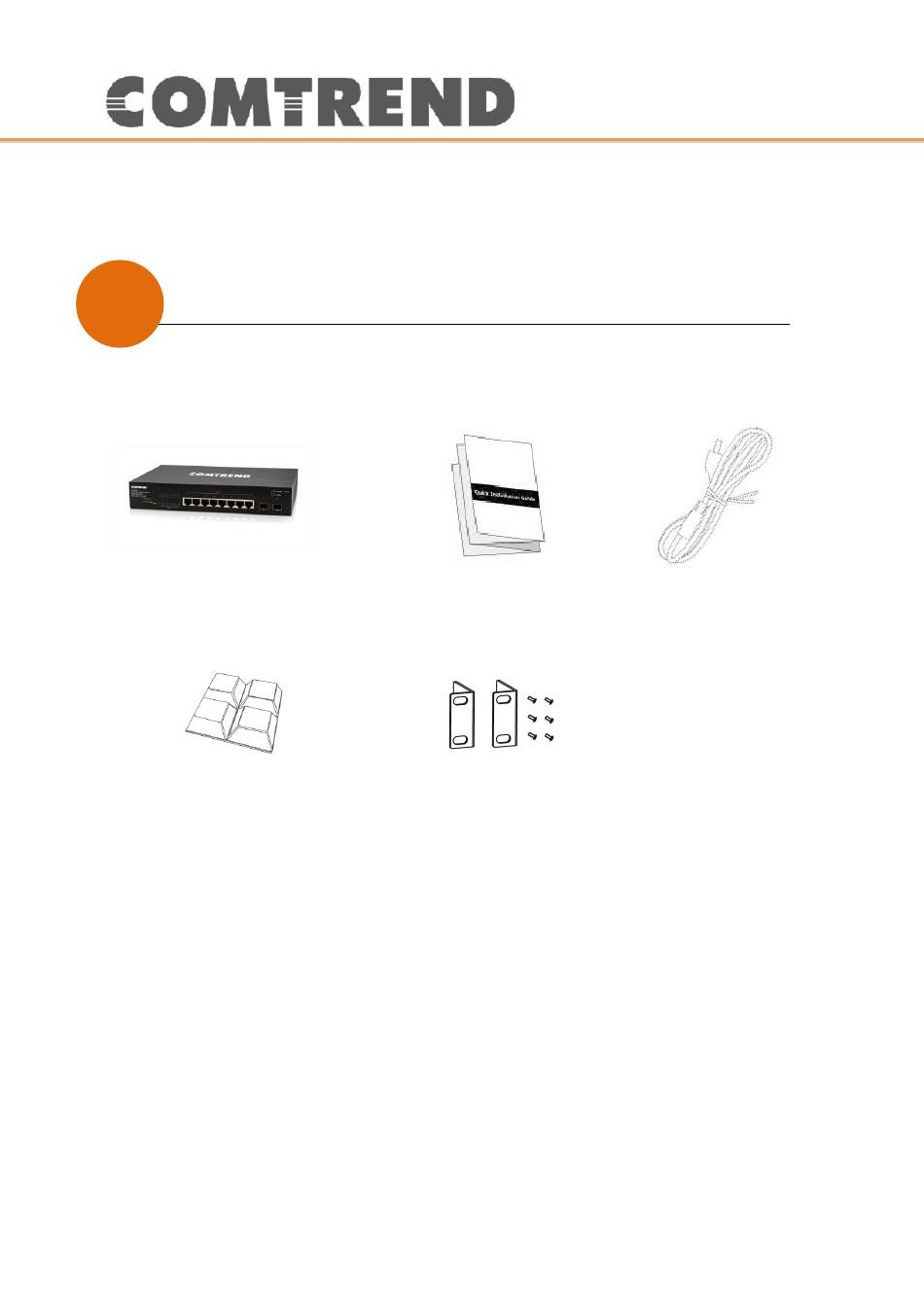

- Page 1 Quick Installation Guide GS-7608 | 8-Port PoE Gigabit Ethernet Smart-Lite Switch Product Information I-1. Package Contents GS-7608 PoE Switch 4 x Foot Pads Rack-Mount Kit Power Cable...
- Page 2 I-2. Hardware Overview Front Panel The front panel of the switch consists of: 8 x 10/100/1000Mbps RJ-45 Ports o Ports 1-8 are PoE Capable o Ports 9-10 are SFP transceiver Capable A Series of LED Indicators Rear Panel The rear panel of the switch features the AC power connector (DC IN 53V / 2.83A) I-3.
- Page 3 Link/ACT: Mode LED Status Description 1000Mbps Green On/Blinking connected/data transmitting 10/100Mbps Amber On/Blinking connected/data transmitting Disconnected or fail PoE Max: LED Status Mode Description PoE power output is over Green 120W PoE power budget PoE power output is under 120W PoE power budget PoE: LED Status...
- Page 4 Install the switch on a desktop by attaching the cushioning rubber feet to the bottom corners of the switch to protect against external vibration. Allow adequate space for ventilation between the device and any objects around. I-5. Rack-mounting Installation The switch can be mounted in an EIA standard-sized 19-inch rack that can be placed in a wiring closet with other equipment.
- Page 5 2. Use the screws provided with the equipment rack to mount the Switch on the rack and tighten it. Rack Installation Quick Setup II-1. Switch to End Device 1. Connect the switch to local power with the included power cable. 2.
- Page 6 II-2. Login 1. Open a web browser and go to the switch’s IP address. 2. Enter the access point’s default IP address 192.168.169.1 into the URL bar of a web browser. 3. You will be prompted for a username and password. Enter the default username “admin”...
- Page 7 Your Device is Now Connected! FOR MORE HELP: For instructions on advanced features, FAQ, etc., please visit our online Product Webpage. For more information: YouTube: https://www.youtube.com/user/ComtrendConnection Facebook: https://facebook.com/Comtrend Website: http://us.comtrend.com/ Support: Visit our website or call (949) 753-9640 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 8 Supplier’s Declaration of Conformity Company: Comtrend Corporation - North America Address: 14 Chrysler, Irvine, CA, 92618 Certify and declare under our responsibility that the following equipment: Product Name: 8-Port PoE Gigabit Ethernet Smart-Lite Switch Model Name: GS-7608 Brand Name: COMTREND...
