Quick Installation Guide

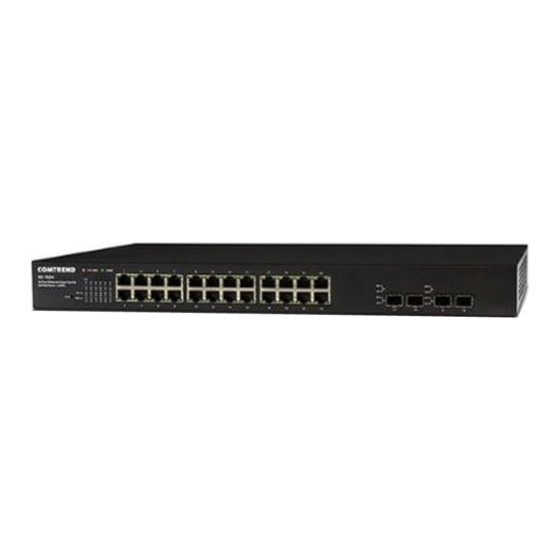

GS-7624 | 24-Port PoE Gigabit Ethernet Smart-Lite Switch
I
I.
Product Information

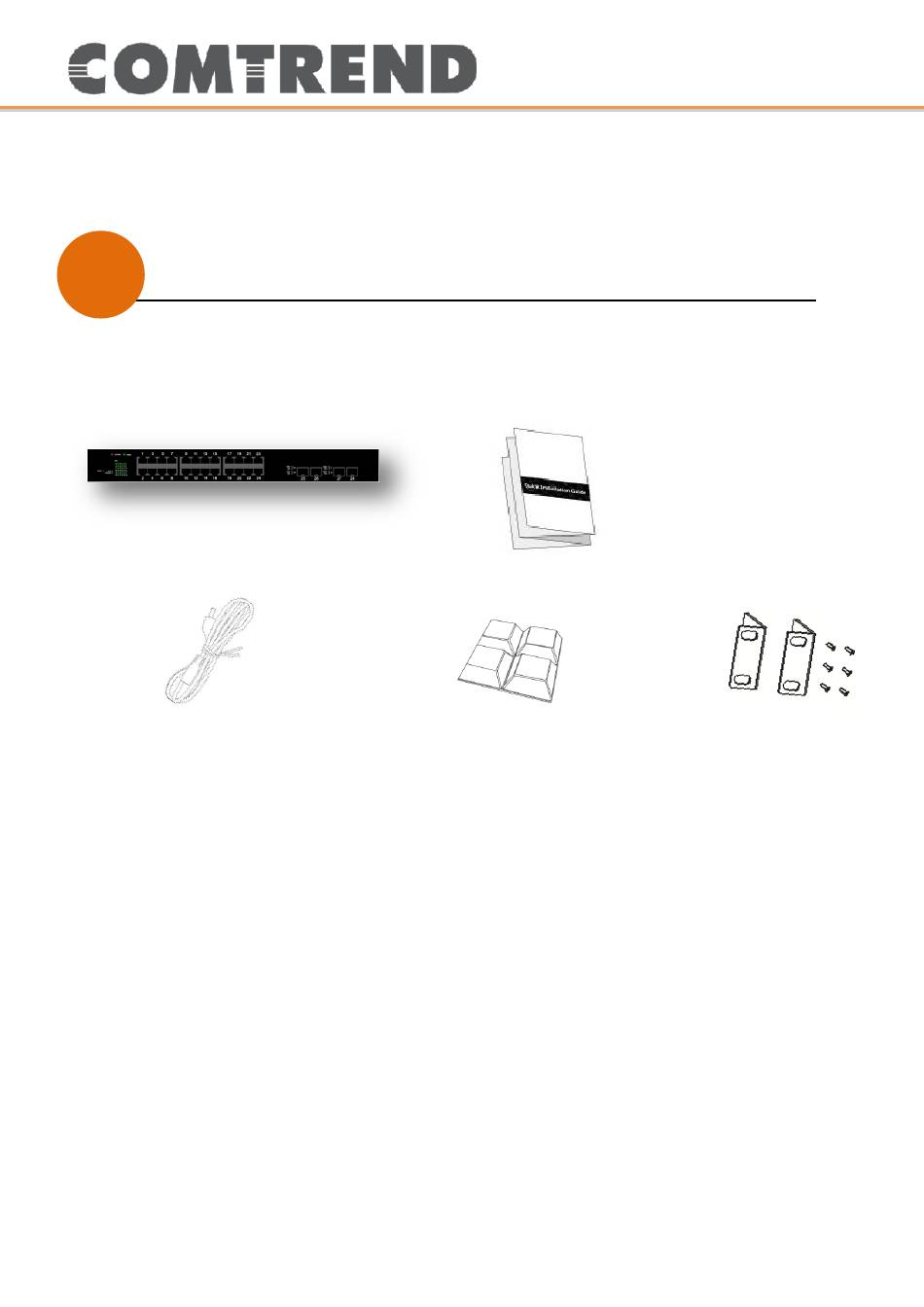

I-1. Package Contents
3
1.
GS-7624 PoE Switch
2.
QIG
2
4
3.
Power Cable
4.
4 x Foot Pads
5.
Rack-Mount Kit
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the GS-7624 and is the answer not in the manual?

Questions and answers

Related Manuals for Comtrend Corporation GS-7624

Summary of Contents for Comtrend Corporation GS-7624

  • Page 1 Quick Installation Guide GS-7624 | 24-Port PoE Gigabit Ethernet Smart-Lite Switch Product Information I-1. Package Contents GS-7624 PoE Switch Power Cable 4 x Foot Pads Rack-Mount Kit...
  • Page 2 I-2. Hardware Overview Front Panel The front panel of the switch consists of:  24 x 10/100/1000Mbps RJ-45 Ports  4 x SFP Ports  A Series of LED Indicators Rear Panel The rear panel of the switch features the AC power connector (DC IN 54V / 6.7A) I-3.
  • Page 3 Copper port LED: per port 2 LEDs, on RJ45 phone jack LED Status Description Green 1G link (right side) Yellow 10/100Mbps connected (left side) Blinking Sending or Receiving data Port disconnected or Link fail SFP: LED Status Description 1000Mbps or 10/100Mbps Green Connected Blinking...
  • Page 4 I-5. Rack-Mounting Installation The switch can be mounted in an EIA standard-sized 19-inch rack, which can then be placed in a wiring closet with other equipment. To install the switch, please follow these steps: 1. Attach the mounting brackets on the switch’s side panels (one on each side) and secure them with the screws provided.

  • Page 5: Quick Setup

    Quick Setup II-1. Switch to End Node Use a standard Cat 5/5e Ethernet cable (UTP/STP) to connect the switch to end nodes as shown below. Switch ports will automatically adjust to the characteristics (MDI/MDI-X, speed, duplex) of the device to which it’s connected.
  • Page 6 3. You will be prompted for a username and password. Enter the default username “admin” and the default password “admin”. 4. You will arrive at the switch configuration window as shown below: Your Device is Now Connected! FOR MORE HELP: For instructions on advanced features, FAQ, etc., please visit our online Product Webpage.

  • Page 7: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 8: Supplier's Declaration Of Conformity

    Supplier’s Declaration of Conformity Company: Comtrend Corporation - North America Address: 14 Chrysler, Irvine, CA, 92618 Certify and declare under our responsibility that the following equipment: Product Name: 24-Port PoE Gigabit Ethernet Smart-Lite Switch Model Name: GS-7624 Brand Name: COMTREND...
