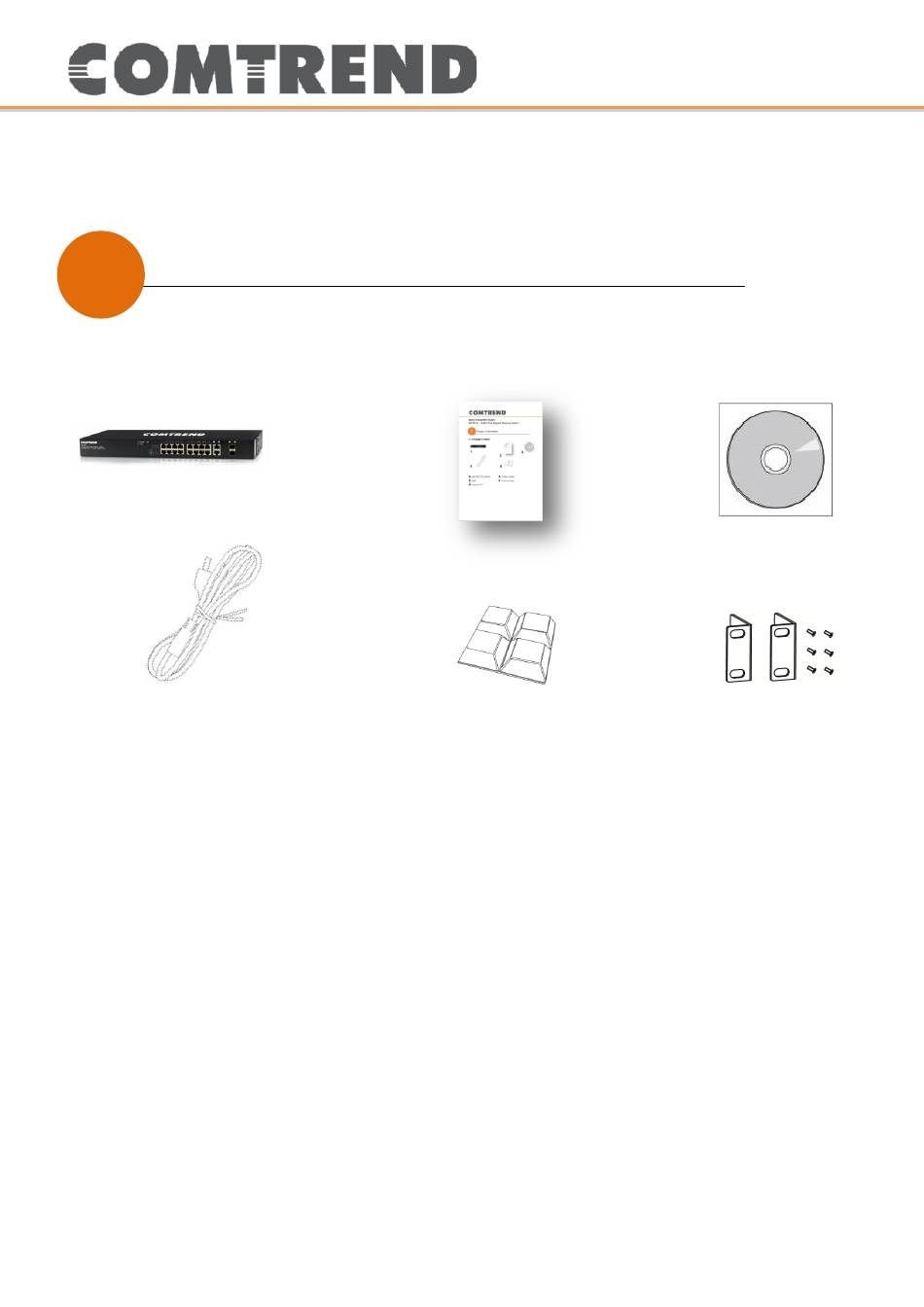

- Page 1 Quick Installation Guide GS-7518 | 18-Port PoE Gigabit Ethernet Switch Product Information I-1. Package Contents GS-7518 PoE Switch Power Cable 4 x Foot Pads Manual CD Rack-Mount Kit...

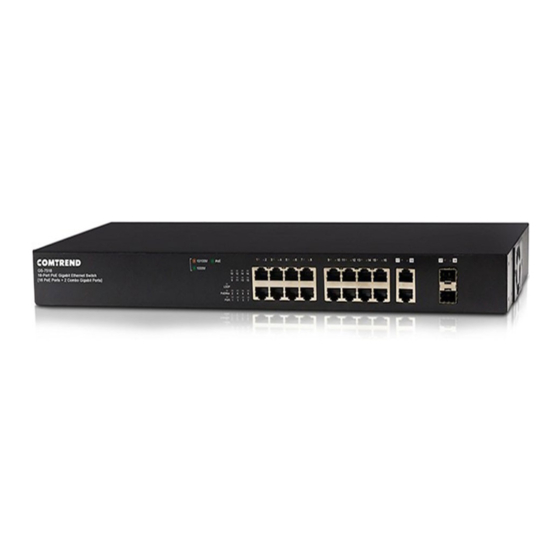

- Page 2 I-2. Hardware Overview Front Panel The front panel of the switch consists of: 16 x 10/100/1000Mbps PoE- Cable RJ-45 Ports 2 x Combo Gigabit Ports Reset Button A Series of LED Indicators Rear Panel The rear panel of the switch consists of: ...
- Page 3 I-3. LED Indicator PWR: LED Status Mode Description Green Power on Power off or fail LOOP: Mode LED Status Description Green Network loop detected No network loop detected PoE/Max: Mode LED Status Description PoE power output over Green 270W PoE power output under 270W Ethernet(above ports): LED Status...
- Page 4 SFP: Mode LED Status Description 1000FX connected/data Green On/Blinking transmitting 100FXMbps Amber On/Blinking connected/data transmitting Disconnected or fail PoE (Left of the ports): LED Status Mode Description Green PoE power output on PoE power output off I-4. Desktop Installation Install the switch on a desktop by attaching the cushioning rubber feet to the bottom corners of the switch to protect against external vibration.
- Page 5 I-5. Rack-mounting Installation The switch can be mounted in an EIA standard-sized 19-inch rack that can be placed in a wiring closet with other equipment. To install the switch, please follow these steps: 1. Attach the mounting brackets on the switch’s side panels (one on each side) and secure them with the screws provided.
- Page 6 Quick Setup II-1. Switch to End Device 1. Connect the switch to local power with the included power cable. 2. Use a standard Cat 5/5e Ethernet cable to connect the switch to end devices as shown below. Switch ports will automatically adjust to the link rate of the device to which it’s connected.
