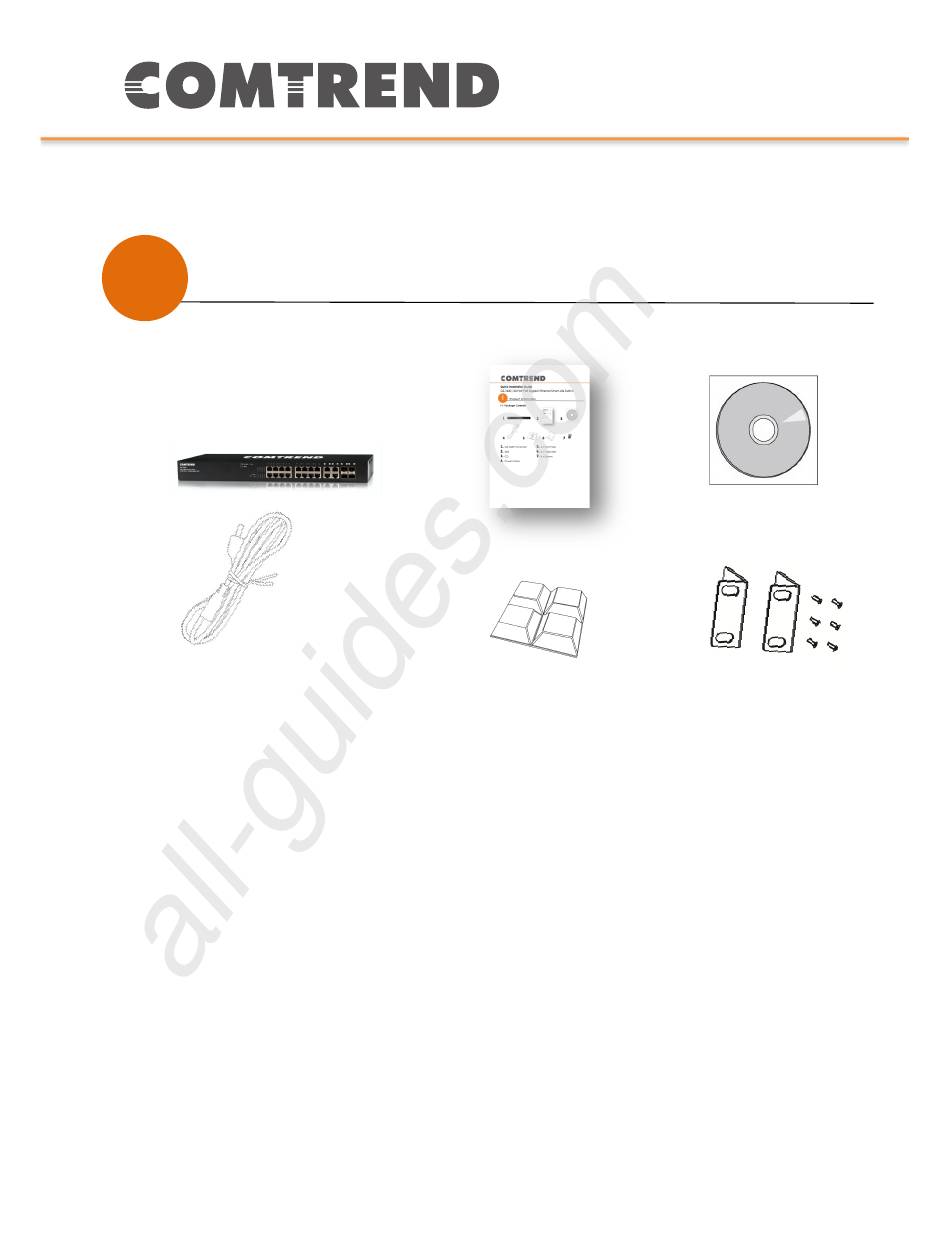

- Page 1 All manuals and user guides at all-guides.com Quick Installation Guide GS-7620| 20-Port PoE Gigabit Ethernet Smart-Lite Switch Product Information I-1. Package Contents 1. GS-7620 PoE Switch 5. 4 x Foot Pads 2. QIG 6. Rack-Mount Kit 3. Manual CD 4. Power Cable...

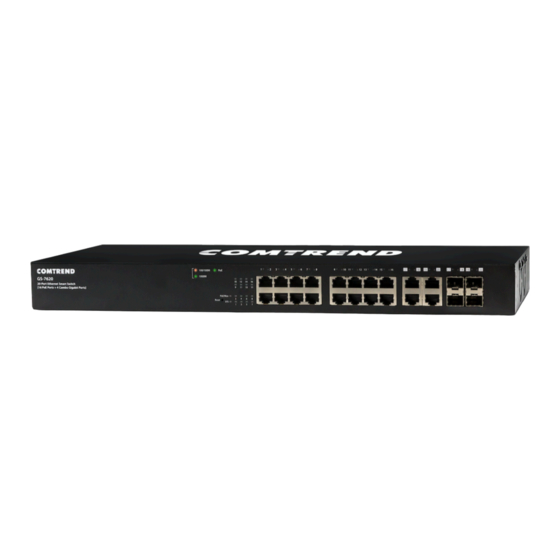

- Page 2 All manuals and user guides at all-guides.com I-2. Hardware Overview Front Panel The front panel of the switch consists of: • 16 x PoE 10/100/1000Mbps RJ-45 Ports • 4 x Combo 10/100/1000Mbps RJ-45 Ports • Series of LED indicators Rear Panel The rear panel of the switch features the AC power connector...
- Page 3 All manuals and user guides at all-guides.com I-3. LED Indicator SYS: LED Status Description Green Power On Power Off / Fail Blinking System Booting PoE Max: LED Status Description Over PoE Max Power Green Budget (320W) Not Over PoE Max Power Budget (320W) Port: LED Status...
- Page 4 All manuals and user guides at all-guides.com 4 Combo Port LED RJ-45: LED Status Description Green 1000Mbps Connected Disconnected or Fail Amber 10/100Mbps Connected Blinking Data Transmitting SFP: LED Status Description Green 1000Mbps Connected Disconnected or Fail Amber 100Mbps Connected Blinking Data Transmitting...
- Page 5 All manuals and user guides at all-guides.com I-4 Rack-Mounting Installation The switch can be mounted in an EIA standard-sized 19-inch rack, which can then be placed in a wiring closet with other equipment. To install the switch, please follow these steps: 1.
- Page 6 All manuals and user guides at all-guides.com Quick Setup II-1. Switch to End Node Use a standard Cat 5/5e Ethernet cable (UTP/STP) to connect the switch to end nodes as shown below. Switch ports will automatically adjust to the characteristics (MDI/MDI-X, speed, duplex) of the device to which it’s connected.
- Page 7 All manuals and user guides at all-guides.com 3. You will be prompted for a username and password. Enter the default username “admin” and the default password “admin”. 4. You will arrive at the switch configuration window as shown below:...
- Page 8 All manuals and user guides at all-guides.com Your Device is Now Connected! FOR MORE HELP: For instructions on advanced features, FAQ, etc., please visit our online Product Webpage. For more information: YouTube: https://youtube.com/ComtrendConnection Facebook: https://facebook.com/Comtrend Website: http://us.comtrend.com/ Support: Visit our website or call 1-877-COMTREND (1-877-266-8736)
