Quick Installation Guide

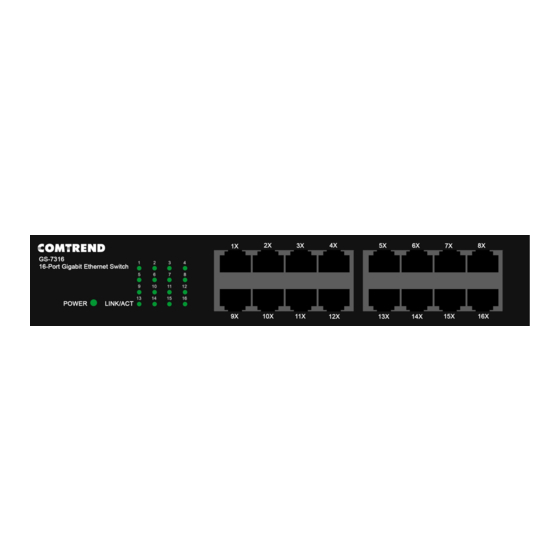

GS-7316| 16-Port Gigabit Ethernet Switch
A
Understanding your Switch
This switch contains LEDs to show the activities and status of the ports, including the POWER LED and LINK/ACT LEDs.
Please refer to the front panel of the switch for the positions of the LEDs:
Look at the following table for the description of the LEDs:
LED
POWER
LINK/ACT
1-16
Rear Panel
The rear panel of the switch features the AC power connector
(DC IN 5V/2A)
Status
Steady Green
Off
Steady Green
Blinking
Off
Operation
The switch is powered on
The switch is powered off
1000Mbps connected
Data transmitting
Port disconnected or link fail
1
