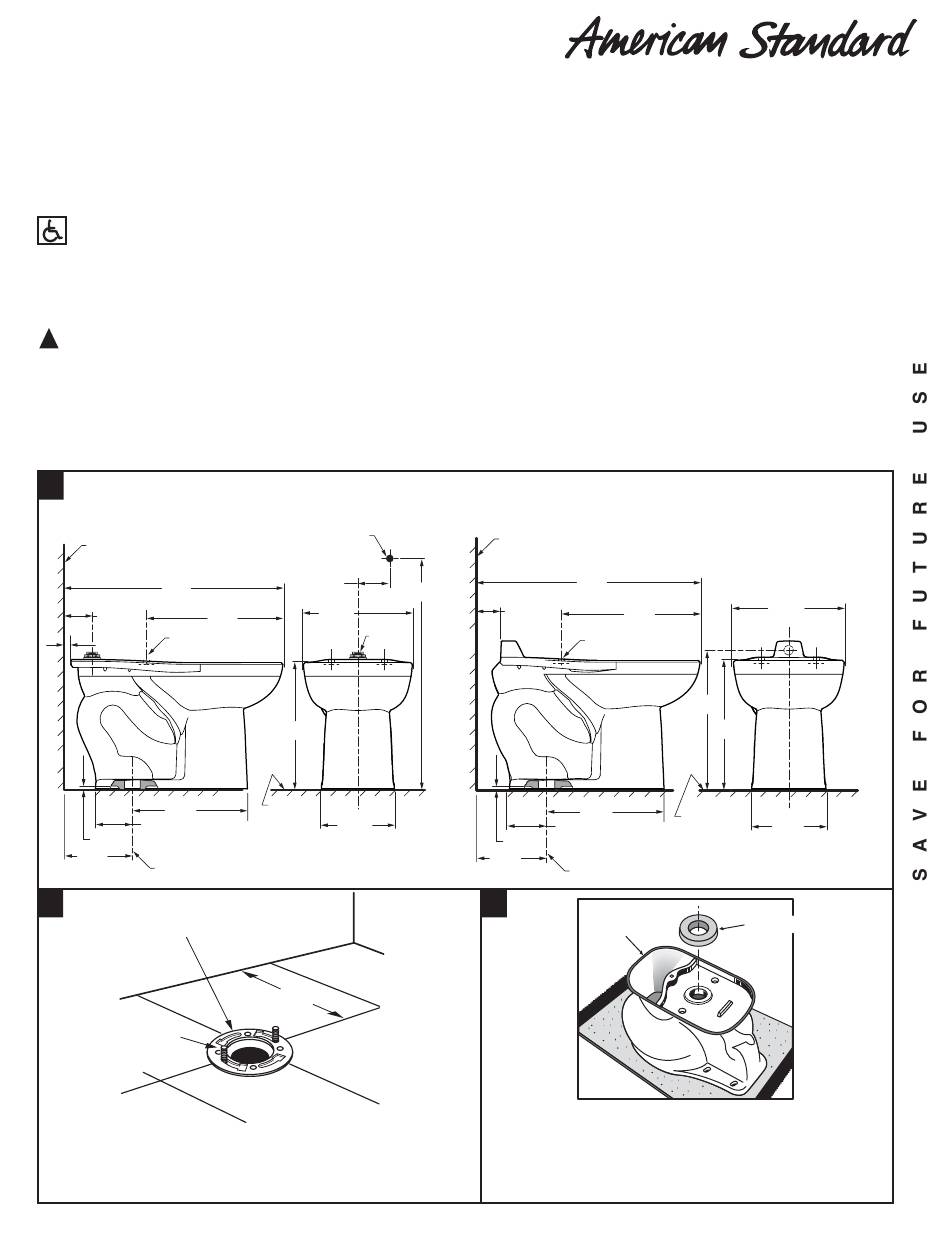

INSTALLATION
INSTRUCTIONS

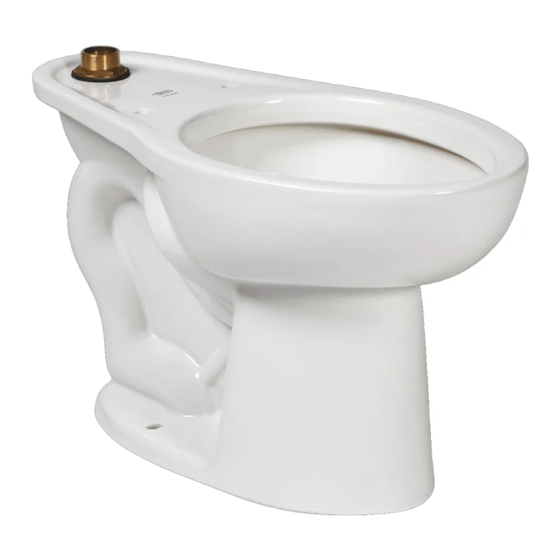

MADERA 16-1/2" HEIGHT FLUSH VALVE
FLOOR MOUNTED TOILETS
Model 3461, 3462, 3463, 3464, 3465, 3466
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the Physically Challenged
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this
product is installed properly, please read these instructions carefully before you begin. (Certain installations may
require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR
!
HANDLING TO AVOID BREAKAGE AND POSSIBLE INJURY!
NOTE: For proper operation product requires a minimum of 30 psi working line pressure
RECOMMENDED TOOLS AND MATERIALS
Putty Knife
1
Pictures may not exactly define contour of china
FINISHED WALL
Model 3461, 3462, 3465, 3466
718mm
(28-1/4)
102mm
470mm
(4)
(18-1/2)
C/L OF SEAT POST HOLES
25mm
140mm (5-1/2) CENTERS
(1)
338mm
(13-5/16)
150mm
(5-7/8)
13mm
(1/2)
254mm
(10)
C/L OF OUTLET
2
CLOSET FLANGE
CLOSET BOLTS
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90°, and slide
into place 6" (152 mm) apart and parallel to wall.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a s I n c .
© A S A m e r i c a s I n c . 2 0 0 8
Regular Screwdriver
Adjustable Wrench
1" N.P.T. OR 1" C.W.T. SUPPLY
TO FLUSH VALVE
121mm
(4-3/4)
730mm
(28-3/4)
356mm
(14)
1 - 1/2
SPUD
419mm
(16-1/2)
FINISHED
FLOOR
238mm
(9-3/8)
10"
254mm
Sealant
Tape Measure
FINISHED WALL
Model 3463, 3464
718mm
(28-1/4)
76mm
470mm
(3)
(18-1/2)
C/L OF SEAT POST HOLES
140mm (5-1/2) CENTERS
338mm
(13-5/16)
150mm
(5-7/8)
13mm
(1/2)
254mm
(10)
C/L OF OUTLET
3
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage), and
install wax ring evenly around waste flange (horn), with
tapered end of ring facing toilet. Apply a thin bead of
sealant around toilet base.
Carpenters Level
Flush Valve
356mm
(14)
438mm
(17-1/4)
419mm
(16-1/2)
FINISHED
FLOOR
238mm
(9-3/8)
WAX RING
7 301166- 10 0 R ev . A
