INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
Triangle Cadet
270AD Elongated Series
270BD Round Front Series
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read
these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.

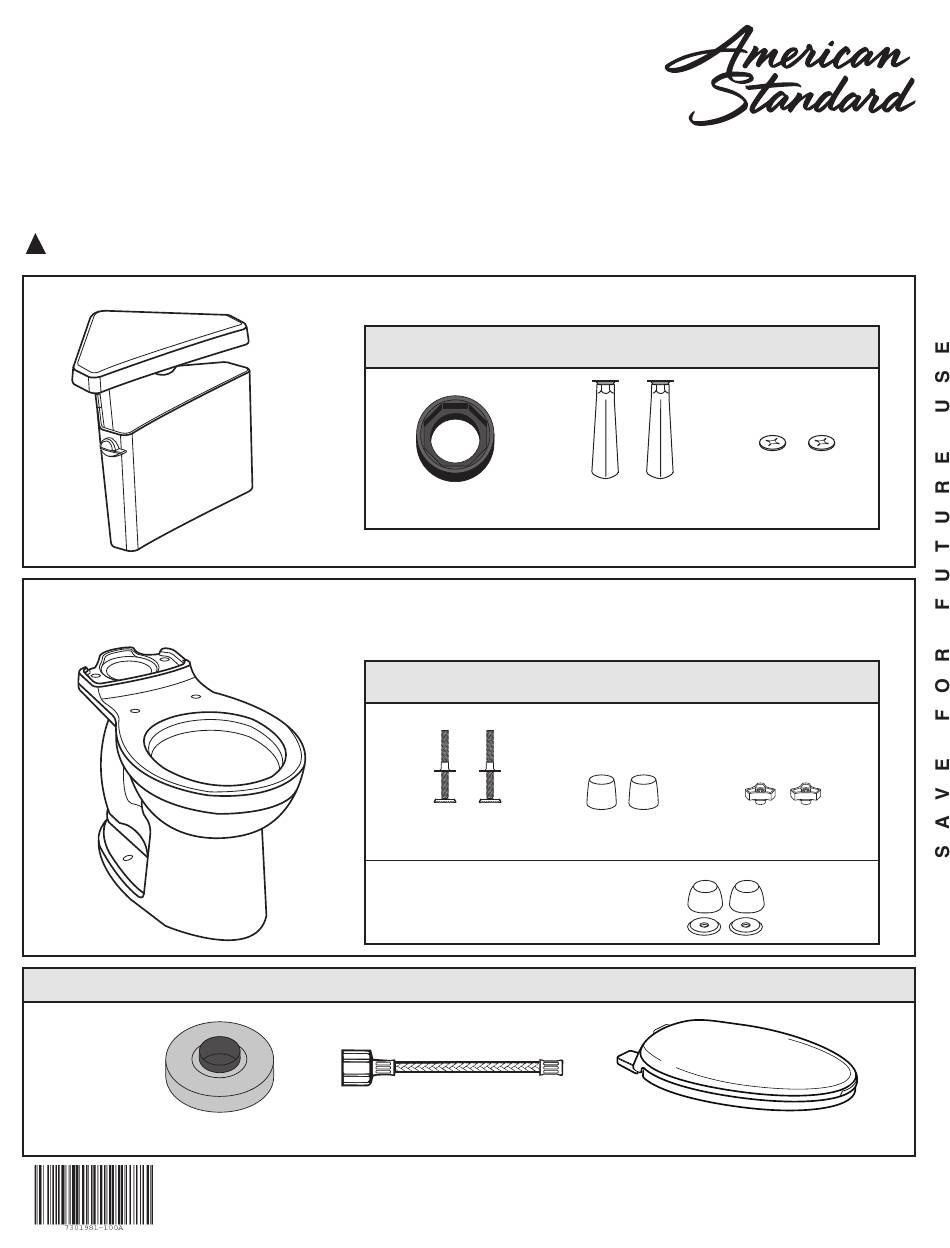

TANK 4338
BOWL 3517A ELONGATED
BOWL 3517B ROUND FRONT
Wax Ring
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a , I n c .
© A S A m e r i c a , I n c . 2 0 1 3
3 2-piece Toilet
®
Tank To Bowl Gasket
EZ-INSTALL KIT INCLUDED WITH BOWL
SOLD SEPARATELY
Water Supply Line
EZ-INSTALL KIT INCLUDED WITH TANK
Attachment Handles
T-Bolts with
Bolt Caps (2)
Retainer (2)
Also includes Standard Bolt Caps (2)
Plastic Washers (2)
with Nuts (2)
Bowl-To-Floor
Knobs (2)
Slow Close Toilet Seat
7301981-10 0 Rev. A
