INSTALLATION INSTRUCTIONS

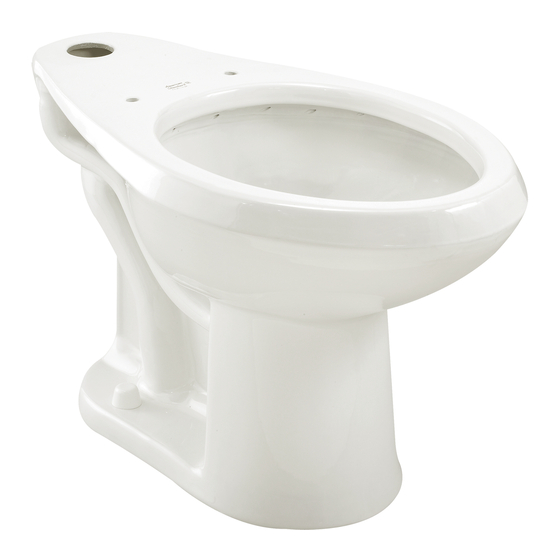

MADERA 16-1/2" HEIGHT FLUSH VALVE
FLOOR MOUNTED TOILETS
Models: 3043, 3248, 3249, 3461, 3462, 3463, 3464, 3465, 3466
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the Physically Challenged
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product
is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR
!
HANDLING TO AVOID BREAKAGE AND POSSIBLE INJURY!
NOTE: For proper operation product requires a minimum of 30 psi working line pressure
RECOMMENDED TOOLS AND MATERIALS
Putty Knife
Adjustable Wrench
1
Pictures may not exactly define contour of china
Models 3043, 3248, 3461, 3462, 3465, 3466
FINISHED WALL
718mm
(28-1/4 " )
102mm
(4 " )
(18-1/2")
25mm
C/L OF SEAT POST HOLES
(1 " )
140mm (5-1/2) CENTERS
338mm
(13-5/16")
150mm
(5-7/8 " )
13mm
(1/2")
C/L OF OUTLET
254mm
(10")
Pro duc t na m e s li s te d h e re i n a re t ra d e m a r ks o f AS A m e r ica , In c.
© AS A me r i ca s I n c . 2 014
Regular Screwdriver
Phillips Screwdriver
1" N.P.T. OR 1" C.W.T.
SUPPLY TO FLUSH VALVE
121mm
(4-3/4")
356mm
470mm
(14")
1 - 1/2
SPUD
419mm
(16-1/2")
FINISHED
FLOOR
238mm
(9-3/8")
2
CLOSET FLANGE
CLOSET BOLTS
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90°, and
slide into place 6" (152 mm) apart and parallel to wall.
Sealant
Tape Measure
Models 3249, 3463, 3464
FINISHED WALL
718mm
711mm
(28-1/4 " )
(28")
76mm
(3 " )
(13-5/16 " )
150mm
(5-7/8 " )
13mm
(1/2 " )
254mm
C/L OF OUTLET
(10 " )
10"
254mm
Carpenters Level
Flush Valve
470mm
(18-1/2 " )
C/L OF SEAT POST HOLES
140mm (5-1/2) CENTERS
438mm
(17-1/4 " )
419mm
(16-1/2 " )
FINISHED
FLOOR
338mm
3
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage),
and install wax ring evenly around waste flange
(horn), with tapered end of ring facing toilet. Apply
a thin bead of sealant around toilet base.
730116 6 -100 Rev. B
356mm
(14 " )
238mm
(9-3/8 " )
WAX RING
