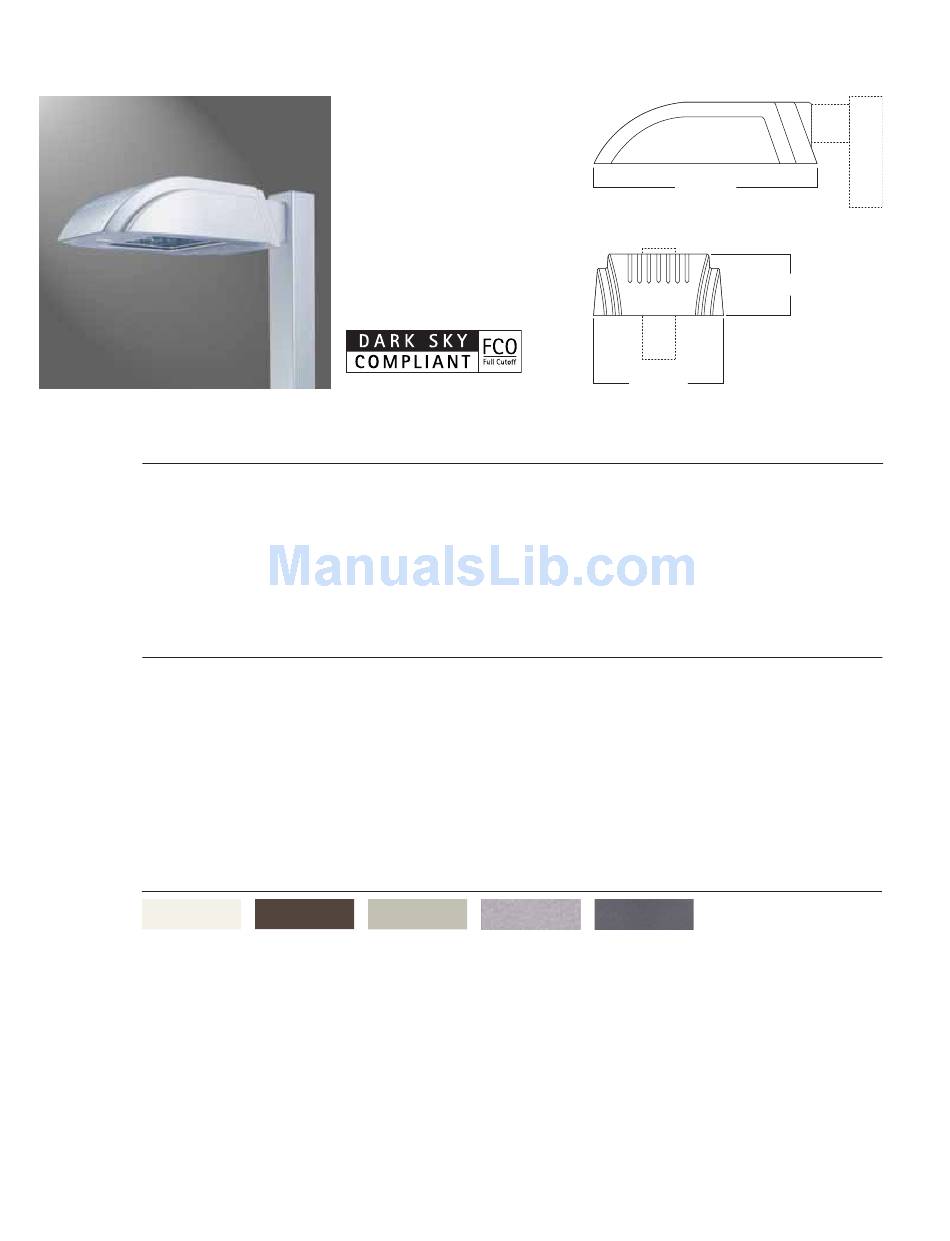

Cooper Lighting Vision AVM40MWW3S Specifications

A R E A
AVM VISION
A R C H I T E C T U R A L A R E A L U M I N A I R E
STREETWORKS ™
H O U S I N G O R D E R I N G I N F O R M AT I O N
Heavy wall die-cast aluminum housing
S A M P L E N U M B E R
maintains a nominal .120 thickness.
Vision is standard in black. Other
PRODUCT
colors available. Consult your
FAMILY 1
Streetworks Representative. U.L.
AVM=Vision
Listed and CSA certified. ANSI
Medium
wattage/source label.
T O O L L E S S E N T R Y
Entrance to the housing utilizes a two
point, toolless latch mechanism that
blends into the fixture providing an
unobtrusive, yet secure attachment.
D O O R / L E N S
O P T I O N S + A C C E S S O R I E S
Door is heavy wall die-cast aluminum
with integral insets for concealment of
OPTIONS (add as suffix)
hinging. Lens is thermal shock- and
1=Single Fuse (120, 277, or 347V)
impact-resistant clear tempered glass.
2=Double Fuse (208, 240, or 480V)
G A S K E T I N G
4=NEMA Twistlock Photocontrol Receptacle
Extruded high temperature silicone
WH=White
gasketing completely seals optical
BZ=Bronze
system from dirt and debris.
AP=Grey
DP=Dark Platinum
R E F L E C T O R A S S E M B LY
GM=Graphite Metallic
Optional high efficiency segmented or
B=Terminal Block
hydroformed reflectors available in a
H=House Side Shield
range of distributions. Reflector
M=Metal Oxide Varistors (MOV)
modules attach to the housing via
Q=Quartz Standby
toolless fasteners. All reflectors are
V=Vandal Shield
field rotatable in 90° increments.
T O O L L E S S P O W E R T R AY
O P T I O N A L C O L O R S
Ballast and related electrical
componentry are mounted to a
reinforced tray with integral handle for
ease of maintenance. Quick electrical
disconnects allow the tray to be
WH
completely removed from the housing
White
providing ample room for attachment
to the pole. Optional power tray fuse
connections offer a distinct and easy
to maintain alternative to common
inline fuse connections.
M O U N T I N G
Extruded aluminum arm available in
either 6" or 10" lengths. Integral
guides within arm allow fixture to be
easily secured to the pole or wall
mount plate. 10" arm required for 90°
mounting.
S H I P P I N G D ATA
Approximate Net Weight:
NOTE: 1 Fixture and arm standard color is black. Optional colors available. Consult your Streetworks Representative. 2 All lamps are mogul-base. 3 Use reduce envelope ED28 Lamp. 4 Required for mounting fixtures at 90°
52 lbs. (23.59 kgs.) increments.
90 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s
: A V M 4 0 M W W 3 S
LAMP
LAMP TYPE
WATTAGE 2 M=Metal Halide
10=100W S=High Pressure
15=150W Sodium
17=175W
20=200W
25=250W
40=400W 3
42=400/250W
[ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]
[ O t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]
BZ AP
Bronze Grey
BALLAST TYPE VOLTAGE
2=120V
C=CWI
0=208V
H=Reac./HPF
4=240V
K=10KV CW
7=277V
M=Mag. Reg.
N=HIX/NPF 8=480V
P=HIX/HPF 9=347V
R=Reac./NPF N=Multi-Tap wired 277V
W=CWA W=Multi-Tap wired 120V
ACCESSORIES (order separately)
MA1050=6" Arm for Square Pole (.50 EPA)
MA1051=10" Arm for Square Pole (1.0 EPA)
MA1052=6" Arm for Round Pole (.50 EPA)
MA1053=10" Arm for Round Pole (1.0 EPA)
MA1054=Wall Bracket
MA1056=Direct Mounting Kit for Square Pole
MA1057=Direct Mounting Kit for Round Pole
MA1207=Mast Arm Adapter
OA1016=Photocontrol–105V-285V
OA1027=Photocontrol–480V
DP
Dark Platinum
28" [724mm]
[432mm]
17" [432mm]
DISTRIBUTION
2F=Type II Formed
3F=Type III Formed
4F=Type IV Formed
5F=Type V Formed
2S=Type II Segmented
3S=Type III Segmented
4S=Type IV Segmented
5S=Type V Segmented
SL=Spill Light Eliminator
4
4
GM
Graphite Metallic
100-400W
MH/HPS
17"
OPTIONS +
ACCESSORIES
(See Below)
C o o p e r L i g h t i n g
