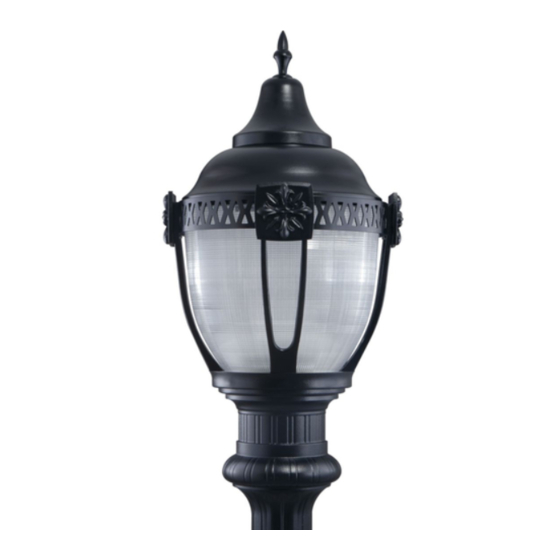

Cooper Lighting ACN-C ACN25MWW5C373 Specification Sheet

D E C O R AT I V E
ACN-C CUTOFF GENERATION SERIES
D E C O R AT I V E L U M I N A I R E
STREETWORKS ™
T O P S + F I N I A L S O R D E R I N G I N F O R M AT I O N
All hard mount tops are made of spun
S A M P L E N U M B E R
aluminum. Nostalgic and architectural
tops are provided with toolless access
for ease of maintenance. Finials are
PRODUCT
manufactured of cast aluminum.
FAMILY
ACN=Acorn
R E F L E C T O R
Highly specular multi-faceted CVL
reflector system provides a Type III or
V Cutoff Distribution. Vertical lamp
position maximizes light output,
ensures a uniform distribution and
minimizes direct glare.
G L O B E
Clear injection molded 9" globe is
offered in UV resistant acrylic.
D E C O R AT I V E C H I M N E Y
Chimney provided with brushed
aluminum finish standard. Optional
copper finished accents available for
chimney and access top.
C A G E A S S E M B L I E S
All uprights are manufactured of cast
aluminum. Banding is extruded
aluminum. All cage assemblies are
mounted to the exterior of the housing
O P T I O N S
via four (4) stainless steel fasteners. A
variety of finishes are available.
OPTIONS (add as suffix)
E L E C T R I C A L
1=Single Fuse (120 or 277V)
Available up to 400W MH and 250W
2=Double Fuse (208, 240 or 480V)
HPS. Ballast assembly is mounted on
Y=Black Chimney
a removable tray with quick
disconnects for ease of installation 4=Internal NEMA photocontrol Receptacle
and maintenance. Plug in starter
P=Polycarbonate Refractor
standard when applicable. Terminal
WH=White
block is hard mounted to the casting
BZ=Bronze
and easily accessible through the
door's wide entryway. UL listing and AP=Grey
optional induction fluorescent lamp
DP=Dark Platinum
available.
H=Hartford Green
U=UL Listed
H O U S I N G
Heavy duty-cast aluminum housing
C=Copper Accents
and door. Wide handhole provide
toolless entry for access to plug-in
starters and optional NEMA twistlock
O P T I O N A L C O L O R S
PCR. 1" ANSI wattage/source label.
Fixture is 3G vibration rated.
M O U N T I N G
Post top mount fits 3" OD tenons.
Four (4) stainless steel fasteners
WH
standard.
White
F I N I S H
O P T I O N A L M E TA L L I C C O L O R S
Standard polyester powder coat finish
in black. For more color options see
optional color or consult your
Streetworks represenatitive for
more information.
Sun Gold
E P A :
Effective Projective Area: 2.1
S H I P P I N G D ATA
NOTE: 1 85W QL Induction only. 120 or 240V only. 2 Metal Halide only. Not available in 480V. 3 Refer to technical section for lamp/ballast/voltage compatibility. 4 Medium-base lamp standard for 150W and below Metal Halide.
Approximate Net Weight:
400W Metal Halide requires reduced jacket ED28 lamp. 5 Available 120V only. 6 Available 50-150W, 120/240 or single voltage only. 7 Cage Type 1, 2, 3 will be finished same color as base. 8 Polycarbonate parts used with
Metal Halide lamps will eventually yellow. 9 Chimney and Access Top finished in copper.
50 lbs. (23 kgs.)
30 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s
: A C N 2 5 M W W 5 C 3 7 3
LAMP LAMP TYPE 3 BALLAST TYPE
M=Metal R=Reac./NPF
WATTAGE 3
Halide 4
H=Reac./HPF
50=50W
S=High N=Hi. Reac./NPF
70=70W
Pressure P=Hi. Reac./HPF
85=85W 1
Sodium
W=CWA
10=100W
Q=Induction 1 K=10KV CWA
15=150W
I=Induction
17=175W
25=250W
40=400W 2
[ M u s t b e o r d e r e d i n a l p h a n u m e r i c o r d e r ]
8
9
[ S t a n d a r d c o l o r i s b l a c k , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]
BZ AP
Bronze Grey
[ C l a s s i c a l , M o d e r n , a n d A r c h i t e c t u r a l C a g e Ty p e O n l y ]
Antique Gold Colonial Bronze
CVL
TM
REFRACTOR
3 VOLTAGE 3 CAGE TYPE
5 2=120V 1=CLASSICAL
TYPE
0=208V 3C=Cutoff III A=Classical/Sun Gold
4=240V B=Classical/Antique
5C=Cutoff V
7=277V Gold
8=480V C=Classical/Colonial
6 9=347V Bronze
W=Multi-Tap 2=MODERN
D=Modern/Sun Gold
wired 120V
N=Multi-Tap E=Modern/Antique Gold
wired 277V F=Modern/Colonial
Bronze
3=ARCHITECTURAL
G=Architectural/Sun
Gold
H=Architectural/Antique
Gold
J=Architectural/Colonial
Bronze
X=None
DP
Dark Platinum
18 3/4" [476mm]
7 TOP TYPE
FINIAL TYPE
4=Classical
1=Victorian
6=Nostalgic
2=Modern
(Top Access)
3=Architectural
7=Architectural
4=Nostalgic
(Top Access)
H
Hartford Green
7
50-400W
MH/HPS/QL
25 1/3"
[643mm]
OPTIONS
(See Below)
C o o p e r L i g h t i n g
