Summary of Contents for First Degree Fitness UB-E820
- Page 1 USER GUIDE UB - E820...

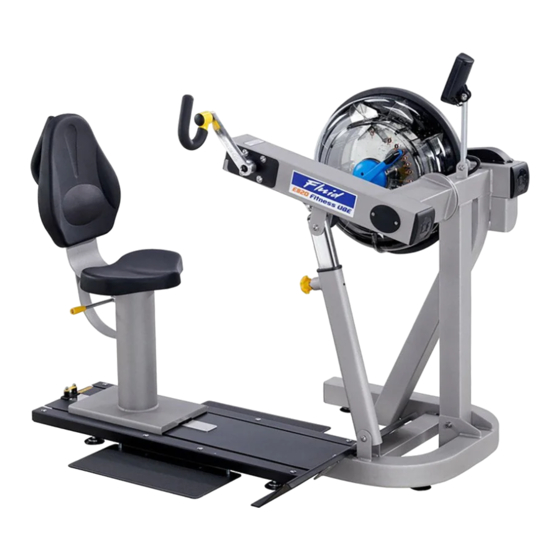

- Page 3 Training with the E820 Congratulations on your purchase of E820. FIRST DEGREE FITNESS is proud to present the Rower as a FULL COMMERCIAL USE product featuring patented Adjustable Fluid Resistance. As with any piece of fitness equipment, consult a physician before beginning your E820 exercise program.
-
Page 4: Table Of Contents
Contents Safety ................... 4 Assembly - UB-E820 ............... 6 UB-820 Box 1 & 2 Contents ............ 7 Assembly Instructions ............. 8 Operation Instructions ............... 12 Maintenance ................15 Troubleshooting ................16 Tank Belt Adjustment..............17 International Warranty ............18... -
Page 5: Safety
Safety Safety Information • Before using this product, it is essential to read this ENTIRE operation manual and ALL instructions. The Rower is intended for use solely in the manner described in this manual. • UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT •... - Page 6 Inspection • DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all FIRST DEGREE FITNESS equipment use only replacement parts supplied by FIRST DEGREE FITNESS. • EQUIPMENT MAINTENANCE - Preventative maintenance is the key to smooth operating equipment as well as to keep your liability to a minimum.
-
Page 7: Assembly - Ub-E820
Assembly - UB-E820 Product Specifications Product Class: SC Braking System: Speed Independent Product Net Weight: 84.6kg (186.12lb) Product Gross Weight: 107kg (235.4lb) Maximum Safe Operating Surface Area: 276cm (108.66”) Length x 222cm (87.40”) Width Dimensions: 1560mm (61.42”) Length x 1020mm (40.16”) Width x 140mm (55.12”) Height... -
Page 8: Ub-820 Box 1 & 2 Contents
UB-E820 Box 1 & 2 Contents Item Qty. Description Item Qty. Description Main Frame with Telescoping Tube M6 Washer and Internal Gas Assist Shock Baseplate 6mm Allen Key Seat Frame M10 Washer Seat Back M8 Springs Washer Lower Seat Foot Levelers... -
Page 9: Assembly Instructions
Assembly Instructions STEP 1 Mainframe Assembly Instructions REQUIRED Attach Telescoping Tube to the underside of the 4 x M8 x 15mm Blots [7] control arm using 4x M8x15mm Bolts[7] and 4x M8 Spring Washers[17]. 4 x M8 Spring Washers [17] Thread the 3x Foot levelers[18] into underside of base. - Page 10 Assembly Instructions STEP 3 Installing the Baseplate REQUIRED Tilt the T-Channel slightly to allow the footplate (with pre-installed bolts) to slide underneath as shown. T-Track Channel Right Channel Left 2 x Footplate Footplate T-Track 8 x M8x45mm Blots [10] Foot Leveler [18] Mount the Left Channel over the top of the footplate dome bolts and then slide forward.
- Page 11 Assembly Instructions STEP 4 Installing Baseplate to the Mainframe Mount the baseplate onto the Mainframe using REQUIRED mounting pins as a locator 3 x M10x20mm [11] Then, secure with 3x M10x20mm Bolt[11], 2x M10 2 x M10 Nylock Nut [13] Nylock Nut[13] and 3x M10 Washer[16].
- Page 12 Assembly Instructions STEP 6 Installing Seat to the Mainframe a) Seat Stop: Must be lowered to allow seat onto CAUTION Baseplate track. Must ALWAYS be in the LOCKED position when seat is occupied on Baseplate. Must be The Seat Stop Must be in lowered to allow seat removal.
-
Page 13: Operation Instructions
Operation Instructions E820 Control Arm Chain Tensioning Bolts: Allows for tightening the Chain or adjustment from side to side. Make sure when tightening only to adjust the same amount for both bolts, otherwise the sprocket will be misaligned. Note: Tightening the right bolt only will pull the right side of the crank assembly toward you, tightening the left will pull the left side toward you. - Page 14 Operation Instructions Tank Filling and Water Treatment REQUIRED Filling requires a large bucket (not Supplied) and the supplied Funnel and Hose [20] water Funnel and Hose [20]. Filling will take approximately 8 liters of water. Open the yellow fill plug on the back of the tank and insert hose CAUTION (rotating the impeller slightly may be necessary to allow the Use a drop cloth under...
- Page 15 Note: For complete operational instructions, please refer to the computer manual, which is included with your Rower. Using the FIRST DEGREE FITNESS USB Interface Description: The USB connectivity now built in to all new models of FDF Console and IPM allow you to enhance your exercise experience by connecting to your home PC or Laptop.
-
Page 16: Maintenance
FIRST DEGREE FITNESS equipment. FIRST DEGREE FITNESS is not responsible for performing regular inspection and mainte- nance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording. -
Page 17: Troubleshooting
Troubleshooting Fault Probable Cause Solution Water changes color Rower is in direct Change rower location to reduce direct or becomes cloudy. sunlight or has not exposure to sunlight. Add water treatment had water or change tank water as directed in the treatment. -
Page 18: Tank Belt Adjustment
Tank Belt Adjustment 2. Using a long tool, push out the rear 1. Remove large metal inspection plate. end cap as pictured below left. This will give you access to the tank End Cap 4. Using a 6mm Allen Key, tighten the 3. -
Page 19: International Warranty
Metal Frame – 10 Year Limited Warranty FIRST DEGREE FITNESS will repair or replace the metal Main Frame should it fail due to any defect in materials or workmanship within 10 years of the original purchase. Warranty does not apply to frame coating. - Page 20 CONTACT US For customer support please visit firstdegreefitness.com/support TAIWAN T: +886 3 478 3306 764 Chung Shan South Rd Yangmei Taoyuan Taiwan R.O.C.
