Contents 1 Safety Warnings ...................................5 2 Preparation ....................................8 Unpacking the TV ..........................................8 Installing / Removing the Base Stand ..................................9 − Installing the Base Stand ......................................9 − Mounting the TV to a Wall ....................................10 Front / Right Side View and Rear Controls................................11 Rear View and Sockets ........................................12 Installing Batteries in the Remote Control ................................13 Remote Control Operation Range ....................................13...
Page 4
Program (for DVD) ........................................... 60 Using the DVD General Setup Page ...................................61 Using the DVD Audio Setup Page ....................................62 Using the DVD Preference Setup Page ..................................62 10 Other Information ..................................64 Maintenance ............................................64 Hints and Tips ............................................ 65 Display Modes ...........................................
Safety Warnings Chapter Safety Warnings • Read all the instructions carefully before using the unit Wall Mounting and keep them for future reference. • Read the TV and wall mount instructions before mounting your TV on the wall. • Retain the manual. If you pass the unit onto a third party make sure to include this manual.
Page 6
Safety Warnings Mains Cable Earphones • Make sure the unit or unit stand is not resting on top of • Listening to loud sounds for prolonged periods of time may permanently damage your hearing. the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
Page 7
Safety Warnings Maintenance CAUTION • Ensure to unplug the unit from the mains socket before RISK OF ELECTRIC SHOCK DO NOT OPEN cleaning. • Do not use any type of abrasive pad or abrasive cleaning The lightning flash with arrowhead symbol, solutions as these may damage the unit’s surface.

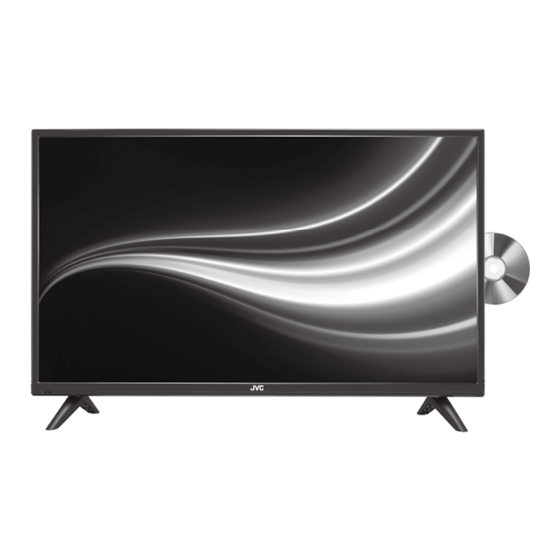

Preparation Thank you for purchasing your new JVC TV. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual so that you fully understand these features.
Preparation Installing / Removing the Base Stand • The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.
Preparation Mounting the TV to a Wall • Remove the stand assembly before mounting the TV onto the wall. • It is recommended that two people take part in the wall mounting. 1. To remove the stand assembly, untighten the screws holding the stand at the rear of the TV. Remove the TV stands out. Keep all the spare screws should you want to use the stand assembly option.
Preparation Front / Right Side View and Rear Controls INPUT Item Description Receives IR signals from the remote control. IR (Infrared Receiver) Do not put anything near the sensor, as its function may be affected. Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby POWER LED mode.
Preparation Rear View and Sockets PC AUDIO IN SCART HDMI1(ARC) HDMI2 Item Description Connects your TV to the internet router by an Ethernet cable. PC AUDIO IN / PC Connects to a computer or other devices with a VGA interface. SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
Preparation Installing Batteries in the Remote Control 1. Press and lift the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure the (+) and ( - ) ends of the batteries match the (+) and ( - ) ends indicated in the battery compartment.
Preparation Remote Control 1. Indicator Light The red indicator light flashes red to show that the remote is working and sending a signal. ASPECT Switch the TV between on and standby mode. 3. ASPECT Watch the screen in various formats: Auto / 4:3 / 16:9 / Smart Zoom / Zoom / Full / Subtitle.
Page 15
Preparation 19. Exit Exit the OSD menu. DVD SETUP ASPECT Display and exit the DVD setup menu. (DVD mode) 20. Coloured buttons • Access the TELETEXT items (ATV / DTV mode) • Access menu options. PROG (RED) • Access menu options. •...
Connections Chapter Connections Making Video and Audio Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and connection procedures. When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.
Connections Connecting a Soundbar - HDMI ARC (Audio Return Channel) The ARC (Audio Return Channel) function allows you to send audio from your ARC-compliant TV to ARC-compliant audio devices (e.g. soundbar) through a single HDMI connection. To enjoy the ARC function, please ensure your ARC-compliant audio devices are connected by an HDMI cable that support the ARC function to the HDMI 1(ARC) socket of your ARC-compliant TV.
Connections Connecting an AV Device Using a Component (YPbPr) Cable Rear Right Side View of TV 1. Connect the supplied component adapter cable Digital Audio Output COMMON INTERFACE (CI) HDMI3 (Optical) and a component cable (not included) from the YPbPr TV’s YPbPr input socket to an external AV device’s component output sockets.
Connections Connecting an AV Device Using Composite Cable Rear Right Side View of TV 1. Connect the supplied composite adapter cable Digital Audio Output COMMON INTERFACE (CI) HDMI3 (Optical) and an AV cable (not included) to connect the YPbPr TV’s AV input socket to an external AV device’s composite audio/video sockets.
Connections Connecting to Network Rear Right Bottom View of TV Connects your TV to the internet router by an PC AUDIO IN SCART HDMI1(ARC) HDMI2 Ethernet cable. It allows access to some IP channels that are available on T2 products. These are accessible through the normal EPG / channel list.
Chapter Initial Setup Turning the TV On for the First Time • This instruction manual explains the basic instructions for operating this unit. All pictures shown are for illustrative purpose only. Actual product may vary due to product enhancement. Unless otherwise stated, all operations described are based on remote control use.
Page 22
Initial Setup 2. The default on-screen menu language is set as English. First Time Installation Language English Deutsch Español Tuning Mode DTV ONLY Country Sorting by LCN Environment Home Mode Move Adjust Select EXIT Exit 3. Press the button to select Tuning Mode. Press the buttons to select DTV + ATV / First Time Installation DTV ONLY / ATV ONLY.
Initial Setup 7. Press the button to select Auto Tuning and then press the OK button. First Time Installation Auto Tuning Move Adjust Select EXIT Exit 8. Channel tuning will commence. This operation may take up to few minutes. Channel Tuning The display will show the progress of the tuning and the number of channels Channel(s) found.
Initial Setup Selecting the Input Source 1. Press the INPUT button to display the Input Source list. Input Source Digital TV 2. Press the buttons to select the input source that you want: Digital TV / Analogue TV / HDMI 1 / HDMI 2 / HDMI 3 / AV / SCART / YPbPr / DVD / Analogue TV PC / USB.
Chapter Customising TV Settings Picture Setting Allows you to set your preferred picture mode. 1. Press the MENU button to display the main menu. Press the buttons to select the PICTURE menu and then press the OK button. SOUND CHANNEL SOURCES PICTURE TIME...
Page 26
Customising TV Settings Aspect Ratio Allows you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Smart Zoom / Zoom / Full / Subtitle. Different screen adjustment options are displayed depending on the current input source. Alternative You may press the ASPECT button to select the aspect ratio directly.
Customising TV Settings Sound Setting Allows you to select an audio-enhancement technique. 1. Press the MENU button to display the main menu. Press the buttons to select the SOUND menu and then press the OK button. PICTURE CHANNEL SOURCES SOUND TIME LOCK SETTINGS...
Customising TV Settings Stereo / Dual Sound Reception (ATV Mode) When a programme is selected, press the AUDIO button to display the sound information for the selected station. Broadcast On Screen Display Mono MONO / NICAM MONO Stereo MONO / NICAM STEREO Dual MONO / NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II Mono sound selection...
Page 29
Customising TV Settings 3. Press the buttons to select the following options, and Channel Tuning Channel Tuning then press buttons to select the options. Tuning Mode Tuning Mode DTV ONLY ATV ONLY DTV + ATV ATV ONLY DTV + ATV DTV ONLY Tuning Mode Selects tune type: DTV ONLY / ATV...
Customising TV Settings Digital Manual Tuning (DTV Mode) Allows you to make manual fine tuning adjustments to the channel under DTV channel. 1. Press the MENU button to display the main menu. Press the buttons to select the CHANNEL menu and then press the OK button. PICTURE SOUND SOURCES...
Customising TV Settings 3. The Analogue Manual Tuning screen will pop up. Use the buttons Analogue Manual Tuning to select the following options and the buttons to adjust the setting. Storage To 1 System BG Storage To Presets the channel number. Current CH 1 System Selects the sound system: BG / I / DK.
Customising TV Settings c. Move (DTV channels) Ensure the LCN is set to Off (refer to page 29 for details). Press the YELLOW button and then press the buttons to move to the selected channel. Press the YELLOW button to confirm. d.
Customising TV Settings Common Interface (DTV Mode) The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.
Customising TV Settings Recorded List (DTV Mode) Views the recorded programmes in the Recorded List. 1. Press the MENU button to display the main menu. Press the buttons to select the CHANNEL menu and then press the OK button. PICTURE SOUND SOURCES CHANNEL...
Customising TV Settings 3. Press the buttons to navigate the list and then press the Schedule List 05:34 27 Oct. Edit Sort by Time/Channel Name Delete EPG Menu INDEX colour buttons to select the options (refer to page 49 for details on Time Date Programme Title...
Customising TV Settings PC Settings (PC Mode) Allows you to adjust the PC desktop content. 1. Press the MENU button to display the main menu. Press the buttons to select the PC menu and then press the OK button. PICTURE SOUND SOURCES TIME...
Customising TV Settings Time Settings Allows you to adjust power on / off time, sleep timer, OSD timer, auto standby and time zone. 1. Press the MENU button to display the main menu. Press the buttons to select the TIME menu and then press the OK button. PICTURE SOUND CHANNEL...
Customising TV Settings OSD Timer You can select a time that your on-screen menus will be displayed: Off / 5 / 15 / 30 / 60 seconds. If you select Off the menu will remain on the screen until you press a button to remove it.
Customising TV Settings Set Password 1. Press the MENU button to display the main menu. Press the buttons to select the LOCK menu and then press the OK button. PICTURE SOUND CHANNEL SOURCES TIME SETTINGS SYSTEM LOCK 2. Use the 0-9 buttons to input a 4-digit password to enter the Lock Please enter password System menu.
Customising TV Settings 2. Use the 0-9 buttons to input a 4-digit password to enter the Lock Please enter password System menu. The default password is “0000”. If you change the password, be sure to remember the new password! If you forget the new password, enter the master password“8899”.
Customising TV Settings 3. Ensure the System Lock is set to On. Press the buttons to select LOCK Parental Guidance and then press the OK button or the button to select System Lock an age rating: Off, 4-18. Set Password 4.
Customising TV Settings Setup Settings Language Allows you to select your desired on screen menu language. 1. Press the MENU button to display the main menu. Press the buttons to select the SETTINGS and then press the OK button. PICTURE SOUND CHANNEL SOURCES...
Customising TV Settings Subtitle Language (DTV Mode) Allows you to select your desired subtitle language or turn off the subtitle. (Only applicable when the TV programme has this feature.) 1. Press the MENU button to display the main menu. Press the buttons to select the SETTINGS and then press the OK button.
Customising TV Settings Blue Screen Allows the blue background to turn On or Off during weak or no signal conditions. 1. Press the MENU button to display the main menu. Press the buttons to select the SETTINGS and then press the OK button. PICTURE SOUND CHANNEL...
Page 45
Customising TV Settings 3. Press the buttons to select the following options, and then press HDMI CEC buttons to adjust each option’s setting or OK button to select the Device List options. HDMI CEC Auto Standby HDMI ARC CEC Menu Control Move Adjust Select...
Customising TV Settings Environment Allows you to select Home mode to maximize energy efficiency or Store mode if you would like your picture to be brighter. 1. Press the MENU button to display the main menu. Press the buttons to select the SETTINGS and then press the OK button. PICTURE SOUND CHANNEL...
Customising TV Settings 3. Press the buttons to select the following options, and then press Network buttons or 0-9 buttons to adjust each option’s setting or the OK IP Config button to select the options. Network Info IP Config Press the buttons to select Auto Mode or Manual Mode.
Customising TV Settings Software Update (USB) (DTV Mode) This function is only for servicing purposes. Any update information for this TV (if any) will be available at the following website or contact the our call centre: • For UK, www.knowhow.com or call our UK Call Centre on 0344 561 1234. •...
Chapter Using the Features EPG (Electronic Programme Guide) (DTV Mode) This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options. The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster).
Using the Features Red Button (Interactive Services) (DTV Mode) Red button services are available on BBC TV and Radio channels. The services are gradually changing to an internet based service rather than the conventual over air (though your aerial). To make the most out of the Red Button services make sure your TV is connected to the internet.
Chapter Entertainment Connecting a USB Storage Device Rear Right Side View of TV 1. Switch off the TV before connecting any USB storage device. Digital Audio Output COMMON INTERFACE (CI) HDMI3 (Optical) YPbPr 2. Connect your USB storage device to the USB port of your TV. 3.
Entertainment 5. Press the OK button or the i button to display the function bar. Press the buttons and then press the OK button to select the function: Previous / Next / Pause / Stop / FB / FF / Repeat / A-B Repeat / GOTO / ZOOM IN / ZOOM OUT / Playlist / Info. 6.
Chapter PVR (Personal Video Recorder) Time Shift Function This function allows you to pause live TV. The picture will pause and the programme will begin recording so you will not miss any of the programme. You need to have a USB storage device attached to the USB socket for Time Shift Recording to work. •...
PVR (Personal Video Recorder) Recording DTV Programme Use this function to record the DTV programme you are watching on the main screen and save it for future viewing. The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.
PVR (Personal Video Recorder) Timer Programming This function is used to perform scheduled recording. The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme. Please make sure the USB device is inserted. If not, a warning message will pop up. 1.
PVR (Personal Video Recorder) Playing Recorded Programme You can play a recorded programme from the recorded programme list in DTV mode. 1. Press the INPUT button then press the buttons to select the Digital Input Source TV mode and then press the OK button. Digital TV Alternative Analogue TV...
Chapter Using the DVD Features Using the Built-in DVD Player 1. Insert a disc with the label side facing towards the rear of the TV. (CD-R, CD-RW, DVD-R, DVD-RW, CD, DVD+R, or DVD+RW) Allow 10 seconds for the player to load the disc. If you insert the disc wrongly, an error message will be displayed.
Using the DVD Features Region Code Both the DVD player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play. The Region Number for this DVD player is described on the rear panel of the TV. Disc Type DVD-VIDEO Region code...
Using the DVD Features Repeat (for DVD / CD / Multimedia discs) Press the REPEAT button once to display the current repeat mode. • For CD discs, while playing in sequence, you may use the repeat playback. There are 2 repeat modes, press the REPEAT button to toggle between the different repeat modes in sequence.
Using the DVD Features Goto (for DVD / CD / Multimedia discs) This function allows you to play your favourite Title / Chapter / Time. Press the GOTO button to activate the on screen scroll-down menu for selecting. Input your Title / Chapter / Time by pressing the 0-9 buttons or input the playback time. After editing, press the OK button to start.
Using the DVD Features Using the DVD General Setup Page In the DVD mode, press the DVD SETUP button. Press the buttons to select the General Setup Page menu, and then press buttons to select the menu options. Press the DVD SETUP button to exit the menu. Option Description TV Display...
Using the DVD Features Using the DVD Audio Setup Page In the DVD mode, press the DVD SETUP button. Press the buttons to select the Audio Setup Page menu, and then press the buttons to select the menu options. Press the DVD SETUP button to exit the menu. Option Description Speaker Setup /...
Page 63
Using the DVD Features Option Description Audio Set the Audio language to your language of choice. - - Preference Page - - TV Type Audio English Subtitle Not all DVD discs support multiple audio languages. DiscMenu Parental Password Default Subtitle Select the Subtitle language.
Chapter Other Information Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to press the button on the rear panel of the TV or on the remote control to turn off the TV. Disconnect the mains cable from the mains socket before any cleaning.
Other Information Hints and Tips The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance: • For UK, please call our UK Call Centre on 0344 561 1234. For Ireland, please call our Ireland Call Center on 1 890 818 575. •...
Page 66
Other Information No sound when connecting HDMI • Check if the input source is HDMI1 / HDMI2 / HDMI3. Audio noise • Keep the RF coaxial cable away from other connected cables. • Adjust the SOUND MODE setting in the SOUND menu, depending on the type of program you are watching.
Page 67
Other Information • Some, but only a few, homes may be able to use a set top aerial. However, for a much better reception, we strongly recommend that you use a rooftop aerial. Can I watch Freeview using a • If you do not have access to a rooftop aerial – for example, if you rent a flat and portable set-top aerial? the aerial is the responsibility of your landlord, or if you’re using a second TV in the bedroom and don’t want the hassle and expense of using extension cables, a set...
Other Information Display Modes The screen resolution has been optimised during production for the display modes listed below. Although this TV is compatible with a 1080i/1080p input, it is possible that the screen may not display the exact resolution this resolution and consequently the picture quality will be adjusted accordingly.
Other Information Product Fiche and Specifications Brand Model LT-32C485 Energy Efficiency Class Screen Size (measured diagonally) Approx. 80 cm (31.5 inch) Power Consumption (In HOME mode) 31.0 W Average Annual Energy Consumption * 46 kWh (Please refer to *1 under this table) Standby Power Consumption 0.40 W...
Page 70
Other Information LT-32C485 kWh/annum Watt 31.5 inch 2017 2010/1062 -...
Other Information Remote Control Code Sky Code The code for controlling your TV using a Sky Remote Control is 3460. For instruction on how to use the code, see your Sky instruction manual. Useful Information and Licences Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
Page 72
EU declaration of conformity is available at the following internet address: https://www.teamknowhow.com/ Click on SEARCH and enter the model number. The product is distributed and warranted exclusive by DSG Retail Ltd. “JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license. (IB-LT-32C485-180807V4)
