- Page 1 Z5043 MAX Horizontal bracket Mounting instructions...
-
Page 2: General Information
Z5043 MAX Horizontal bracket References in the manual This refers to a potentially dan- WARNING! gerous situation which may lead to personal injury. This refers to a potentially danger- CAUTION! ous situation which may lead to equipment damage. This refers to a situation which may... -
Page 3: General Safety Advice
General Safety and Installation Advice General safety advice d&b loudspeakers should only ever be flown or installed using WARNING! recommended d&b rigging accessories. The d&b rigging accessories described in the d&b rigging accessories manual and the specific mounting instructions are designed and manufactured to have a high load safety factor for their intended role. -
Page 4: Safety Inspections
attached using a d&b rigging accessory must be capable of safely WARNING! and securely supporting the actual load. The rigging accessory used must be safely and securely fixed both to the loudspeaker and to the wall, floor or ceiling. Other points to consider are: When mounting rigging components on walls, floors or ceilings ensure that all fixings and fasteners used are of an appropriate size and load rating (DIN 18800 standards apply within Germany). - Page 5 Load safety factors Rigging accessories are safety critical components which can, by their failure, lead to injury or death. To maximise safety and to reduce the risk of the possible consequences of failure, there exist various recommendations which attempt to govern the safe design and construction of rigging components.
- Page 6 A 12X load safety factor is therefore recommended for the following components: Chains • Steel wire ropes (for lifting and securing) • Shackles • Eyebolts etc. • In contrast, the EU Machinery Directive (EN292-2) specifies the following load safety factors for rigging components: Rigging component Safety factors Steel wire ropes...
-
Page 7: Load Ratings

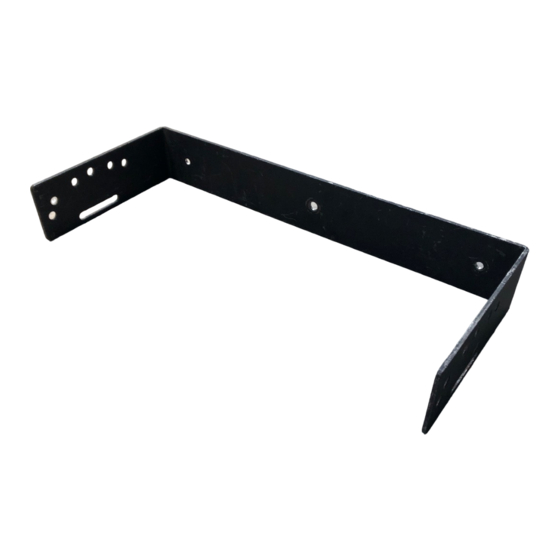

attached to d&b loudspeaker cabinets and are secured using either screws or bolts fastened to threaded inserts fitted in the loudspeaker cabinets. .or attaching rigging, d&b loudspeaker cabinets are fitted threaded inserts. Where provided, the supplied screws or bolts should be used to WARNING! attach rigging. - Page 8 Z5043 MAX Horizontal bracket The Z5043 Horizontal bracket enables MAX cabinets to be fixed to walls, ceilings or other suitable surfaces and set to a selected vertical coverage angle. The vertical coverage angle is set using one of six locating holes for cabinet mounting at each end of the bracket.
- Page 9 Declaration of Conformity to BGV C1 This declaration applies to the following components described in this Rigging Accessories Manual : (shipped after 27/11/97) (shipped after 12/2/98) (shipped after 3/4/98) (shipped after 27/8/97) d&b audiotechnik AG, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone +49-7191-9669-0, Fax +49-7191-95 00 00...
