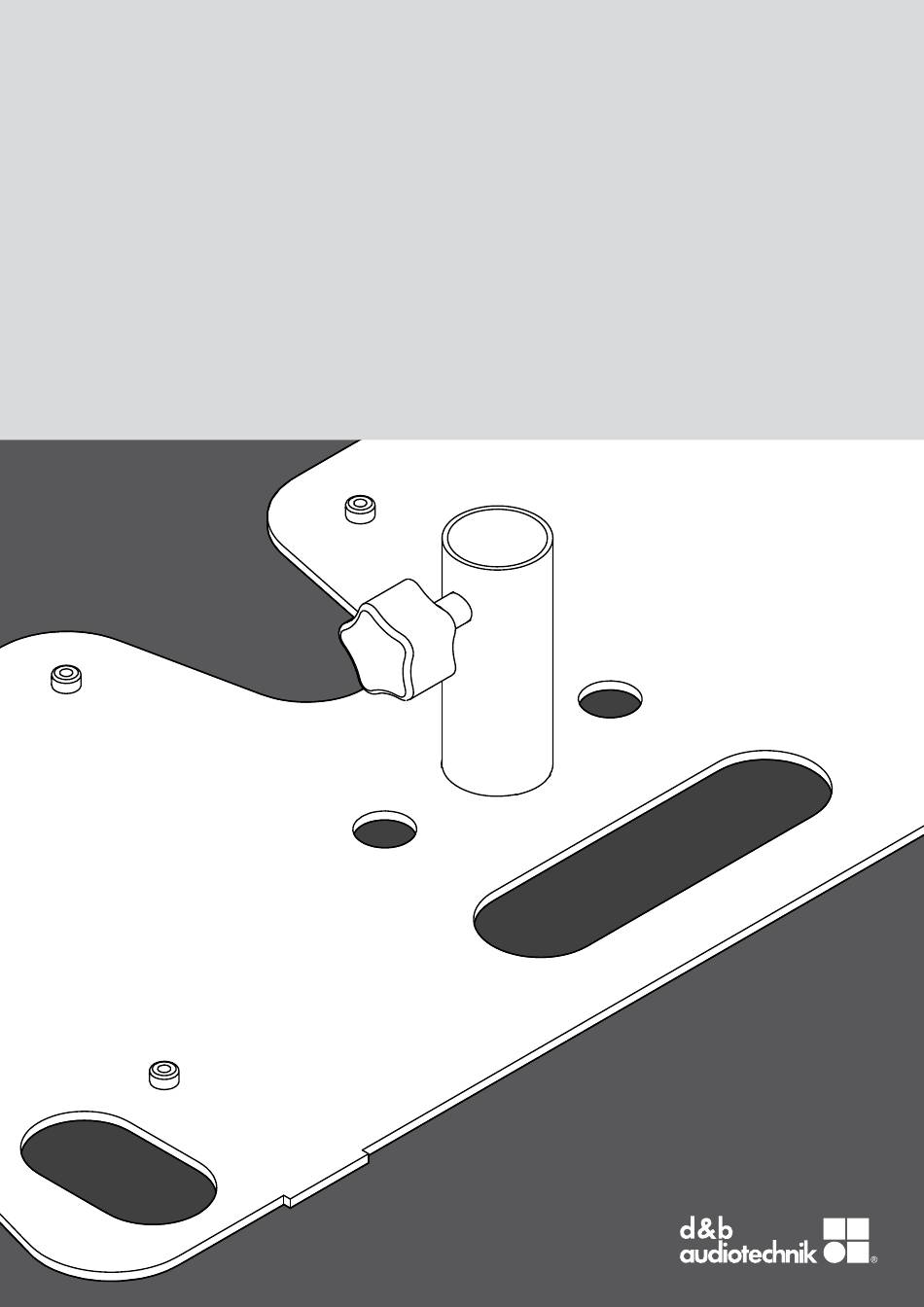

- Page 1 Z5460 Mounting instructions 1.1 en...
- Page 2 General information Z5460 Mounting instructions Version: 1.1 en, 04/2020, D2749.EN.01 Copyright © 2020 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference.
- Page 3 Contents Z5460 AL Stand adapter........... 4 1.1 Scope of supply................4 1.2 Safety precautions..............4 1.3 Intended use................4 1.4 Assembly..................5 Manufacturer's declarations........... 6 2.1 EU conformity (CE symbol)............6 2.2 Disposal..................6 d&b Z5460 Mounting instructions 1.1 en...
- Page 4 Load safety information NOTICE! The Z5460 AL Stand adapter is designed to carry the weight of one (1) AL60/ AL90 or ALi60/ALi90 cabinet mounted on the Z5458 AL Base plate. 1.3 Intended use...
- Page 5 4. Fold out and remove the Splay link of the cabinet. ↳ The tilt angle of the cabinet can be applied using the Splay link of the Base plate. For these purposes, please refer to the Z5458 Rigging manual. d&b Z5460 Mounting instructions 1.1 en...
- Page 6 When out of use the rigging components must be disposed of in accordance with the national environmental regulations. Ensure that damaged rigging components are disposed of in a way that they cannot be used again. d&b Z5460 Mounting instructions 1.1 en...
- Page 7 www.dbaudio.com...
