About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (accessory): Provides information about "Precautions", "Precautions for
installation" and the installation method.
• Basic Information (this document): Provides information about "Precautions for use" and "Detail
specifications".
• Operating Instructions (in the following website): Explains how to perform the settings and how
to operate this camera.
https://i-pro.com/global/en/surveillance/documentation_database
"<Control No.: C****>" used in these documents should be used to search for information on our support
website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information) and will
guide you to the right information.
• SDXC/ SDHC/ SD memory card is described as SD memory card.
• The external appearance and other parts shown in this manual may differ
from the actual product within the scope that will not interfere with normal
use due to improvement of the product.
Basic Information

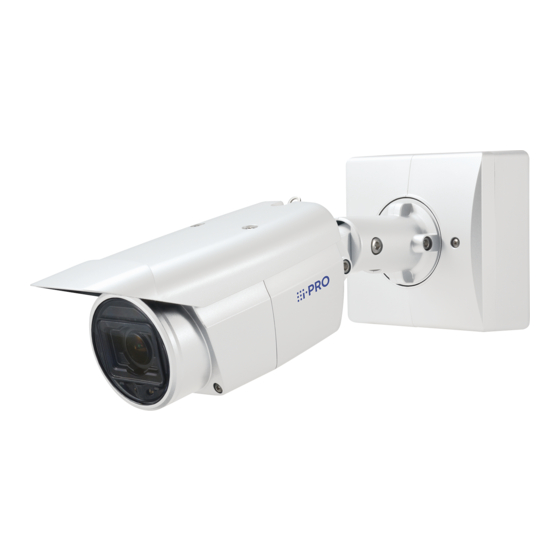

Network Camera
WV-X1571LN
Model No.
WV-X1551LN
Advertisement
Table of Contents
Related Manuals for i-PRO WV-X1571LN
Summary of Contents for i-PRO WV-X1571LN
- Page 1 “<Control No.: C****>” used in these documents should be used to search for information on our support website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information) and will guide you to the right information. • SDXC/ SDHC/ SD memory card is described as SD memory card.
-
Page 2: Table Of Contents
Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 About notations ..........................4 System requirements for a PC ...................... 4 Network security ........................... 5 Precautions for use ........................6 Parts and functions ........................9 Troubleshooting ........................... 13 Detail specifications ........................15... -
Page 3: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 4: About Notations
The following notations are used when describing the functions limited for specified models. The functions without the notations are supported by all models. X157x The functions with this notation are available when using the model WV-X1571LN. The functions with this notation are available when using the model WV-X1551LN. X155x System requirements for a PC ®... -
Page 5: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. A Leakage or theft of information through this unit B Use of this unit for illegal operations by persons with malicious intent C Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. -
Page 6: Precautions For Use
Precautions for use When the product is accessible from the About the automatic status detection Internet function To prevent unauthorized access, note the When this product malfunctions due to following. exogenous noise, etc. for 30 seconds or more, the product will automatically restart and will return •... - Page 7 What to do if “WARMING UP-PLEASE WAIT” Cleaning of the front panel appears on the display. • When cleaning the front panel, hose or spray This message indicates that the temperature fresh water that is not containing lubricant inside the camera has become extremely low. agent or silicon substances and wash away adherents such as grain of sand.
- Page 8 Product disposal/transfer Data saved on this product or a storage device used with this product may lead to personal information leakage. When it is necessary to dispose or give this product to someone, even when for repair, make sure that there is no data on this product.
-
Page 9: Parts And Functions
Parts and functions Cables cable Ethernet (category 5e or better, straight, 【1】 RJ45 Network cable 4 pairs (8 pins)) 【5】 4P alarm cable (accessory) 【5】 EXT I/O cable 【2】 2P power cable (accessory) 12 V DC (red) 【2】 Power supply cable GND (black) 【3】... - Page 10 【2】 Power supply cable / 2P power cable (accessory) Connect the output cable of the DC power supply to the 2P power cable. IMPORTANT: • Be sure to use the 2P power cable provided with this product. • Be sure to fully insert the 2P power cable into the power supply cable. Otherwise, it may damage the camera or cause malfunction.
- Page 11 【5】 EXT I/O cable / 4P alarm cable (accessory) Note: • Off, input, and output of the ALARM IN2 and 3 can be switched by configuring the setting. Refer to the Operating Instructions for further information about the ALARM IN2 and 3 settings (“Off”, “Alarm input”, “Alarm output”...
- Page 12 【6】 MONITOR OUT terminal (factory shipment: NTSC monitor) Used to connect a monitor used for adjustments during installation or when performing service. IMPORTANT: • The adjustment monitor is used for checking the adjustment of the angular field of view when installing the camera or when servicing.
-
Page 13: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE device for power supply... - Page 14 Reference Symptom Cause/solution pages • Check the following. • Grounding of the camera, a switching hub or periph- eral devices are not done. • The camera is used near an electrical power line. • The camera is used near a device which produces Audio input contains Installation strong magnetic field or radio waves (such as near a...
-
Page 15: Detail Specifications
With adapter box : Approx. 2.2kg {4.86 lbs} Without adapter box : Approx. 1.7kg {3.75 lbs} Finish: Main body: Aluminum die cast and resin, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Front panel: Polycarbonate resin (with ClearSight coating), Clear... - Page 16 *1 Refer to our support website <Control No.: C0106> for further information about Power source and Power consumption information. *2 When using with the IR LED light constantly lit, the upper limit of the operating temperature range is +50 °C {+122 °F}. X157x This camera is not equipped with the function to change the audio output to the monitor output.
- Page 17 Super Dynamic: On/ Off The level can be set in the range of 0 to 31. Dynamic range: Max. 132 dB (Super Dynamic: On, Level: 31, 15 fps * Maximum gain: The level can be set in the range of 0 to 11. Adaptive black stretch: The level can be set in the range of 0 to 255.
- Page 18 –190° to +100° (Adjust by azimuth (YAW) angle) * You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle. Dimensions: 130 mm {5-1/8 inches} (W) × 130 mm {5-1/8 inches} (H) (Camera mount bracket installation section) Finish: Aluminum die cast, i-PRO white...
- Page 19 • Network Network: 10BASE-T/100BASE-TX, RJ45 connector [16:9 mode*] *[4:3 mode] is not supported. Resolution * H.265/ H.264 X157x 3840×2160/ 2560×1440/ 1920×1080/ 1280×720/ 640×360/ 320×180 JPEG (MJPEG) X155x 3072×1728 * / 2560×1440/ 1920×1080/ 1280×720/ 640×360/ 320×180 Image compression method: H.265/ H.264 * Transmission priority: Constant bit rate/ VBR/ Frame rate/ Best effort Frame rate:...
- Page 20 Up to 16 camera images can be displayed simultaneously on a multi- screen. (Including the camera itself) Compatible SDXC/SDHC/SD It is recommended to use an SDXC/SDHC/SD memory card for i-PRO memory card * devices. (SD speed class 6 or higher) SDXC memory card: 64 GB, 128 GB, 256 GB...
- Page 21 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB i-PRO Co., Ltd. Amsterdam, Netherlands Fukuoka, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 N0620-2042 PGQP2892XA...
