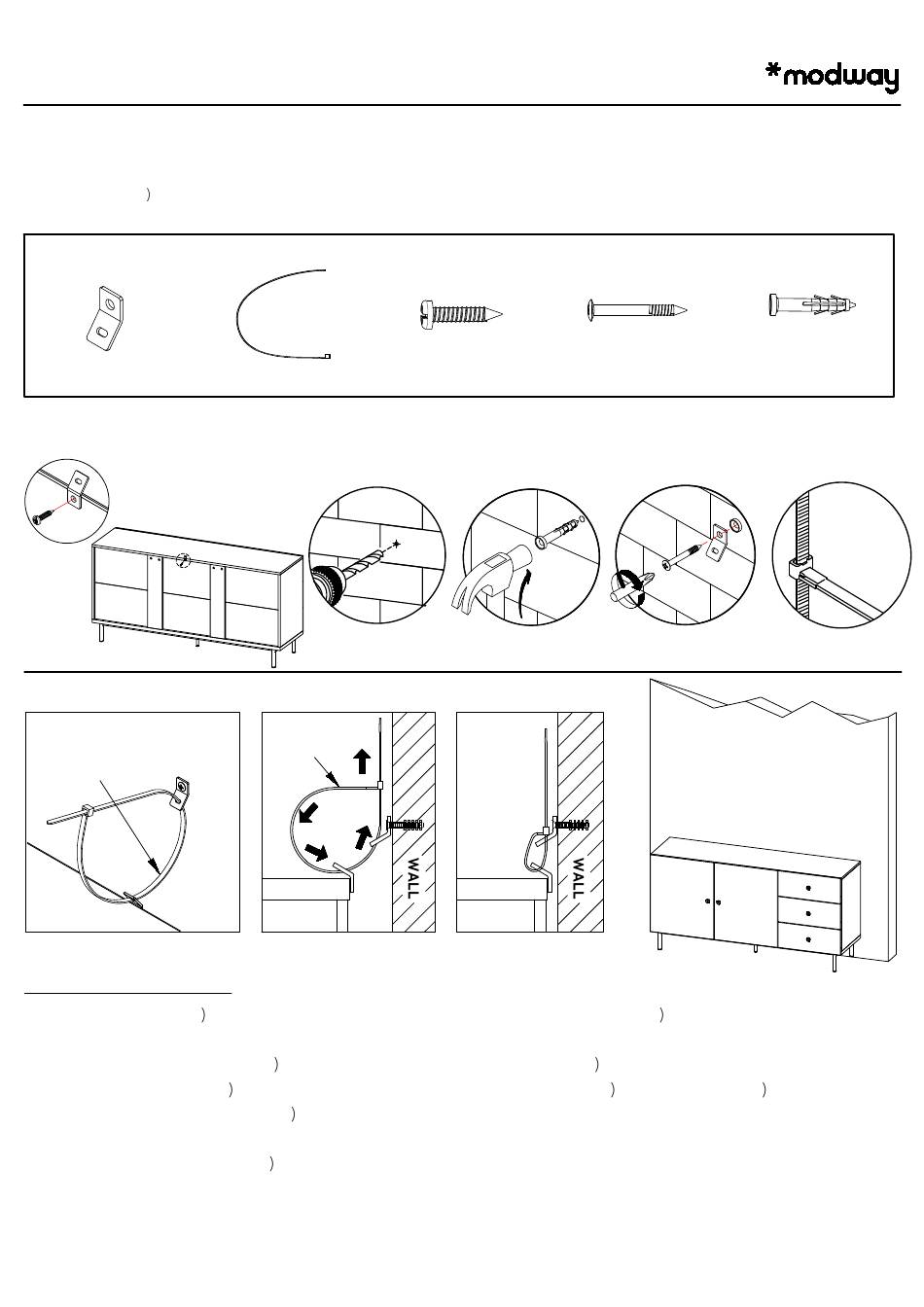

TIPPING RESTRAINTS KIT INSTALLATION GUIDANCE
Different wall materials require unique wall fasteners.
The wall plugs (P5 are designed for fixing to concrete walls only.
Please consult your local hardware store to ensure you are using the correct hardware for your wall type
P - Anti Tipping Kits x 1
1) V Bracket x 2
STEP 1
P1
P3
Grid Surface
P2
P1
P1
Installation Instruction:
1. Attach a bracket (P1 securely to the back top rail of the furniture using screw (P3
provided through the smaller hole.
2. Make a hole for wall plugs (P5 position on the wall above the bracket ( P1 that secured to the back unit.
Attach the wall plug (P5 into the hole by hammer. Fix the other bracket (P1 to the wall plug (P5 through
the smaller hole using screw (P4 .
3. Place the furniture unit into position so both mounting brackets are vertically in line.
4. Lace the end of cable tie (P2 through the larger hole in each mounting bracket, bring both ends together
and slide the flat end through the locking end and draw it through until all slack is removed.
5. Make sure the strap is securely laced and locked.
2) Cable Tie x 1
3) 5/8" Screw x 1
STEP 5
Tighten
CABINET
4) 1-1/2" Screw x 1
STEP 2
P5
STEP 6
CABINET
5) Nylon Wall Plug x 1
STEP 3
STEP 4
P4
P1
PAGE
P2
15
OF
15
