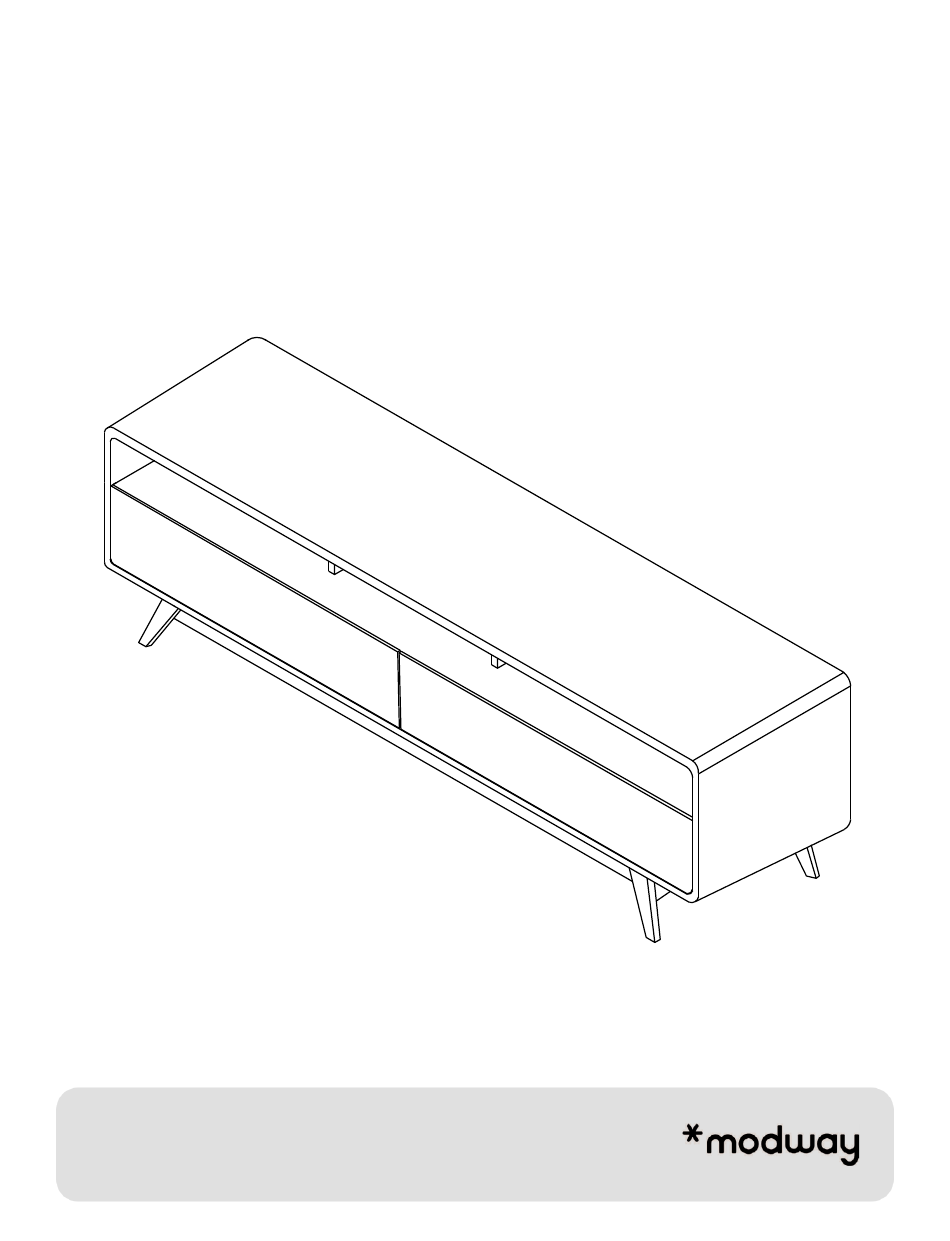

- Page 1 A S S E M B L Y I N S T R U C T I O N S EEI-6231 V1. 12.29.22 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com Page 1 of 14...
-
Page 2: Let's Get Started
JCBC M6 x 80mm Drawer Runner Right JCBC M6 x 60mm C/board Screw Ø4 x 38mm Metal Plate Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com Page 2 of 14... - Page 3 Step 1 H A R D W A R E Wooden Dowel Ø6 x 30mm Floor Glide B321 C/board Screw Ø3.5 x 16mm C O M P O N E N T S Top Panel Bottom Panel Back Panel Front Leg Panel Back Leg Panel Right Leg Support Left Leg Support...
- Page 4 Step 3 H A R D W A R E C/board Screw Ø3.5 x 16mm C/board Runner Left C/board Runner Right C O M P O N E N T S Right Side Panel Left Side Panel Down Support FRONT Step 4 Step 4.1 Step 4.2...
- Page 5 Step 5 Step 5.2 Step 5.1 H A R D W A R E JCBC M6 x 30mm Cam Lock Ø15 x 12mm Allen Key C O M P O N E N T S Step 5.3 Front Leg Panel Right Leg Panel Left Leg Panel Step 6...
- Page 6 Step 7 H A R D W A R E Cam Lock Ø15 x 12mm Step 7.1 Hole Plug 15mm C O M P O N E N T S Top Panel Fixed Shelf Middle Support Step 7.2 Page 6 of 14...
- Page 7 Step 8 C O M P O N E N T S Top Panel Back Panel Page 7 of 14...
- Page 8 Step 9 H A R D W A R E Cam Lock Ø15 x 12mm C O M P O N E N T S Bottom Panel Back Panel Down Support Step 10 H A R D W A R E Bottom View Cam Lock Ø15 x 12mm C/board Screw Ø3.5 x 16mm...
- Page 9 Step 11 H A R D W A R E JCBC M6 x 80mm JCBC M6 x 60mm Allen Key C O M P O N E N T S Bottom Panel H&G Front Leg Panel Back Leg Panel Right Leg Panel Left Leg Panel Page 9 of 14...
- Page 10 Step 12 H A R D W A R E Metal Plate C O M P O N E N T S Bottom Panel Center Leg Remove the Protective Cap Before Installation Page 10 of 14...
- Page 11 Step 13 H A R D W A R E Wooden Dowel Ø6 x 30mm Cam Bolt Ø6 x 32mm C O M P O N E N T S Drawer Right Drawer Left Drawer Back Drawer Head Drawer Support Step 14 Front View Back View...
- Page 12 Step 15 Step 16.2 Step 16.1 H A R D W A R E Cam Lock Ø15 x 9.9mm C O M P O N E N T S Drawer Base Drawer Right Drawer Left Drawer Back Drawer Head Drawer Support Step 16 H A R D W A R E C/board Screw Ø3.5 x 16mm...
- Page 13 Step 17 Page 13 of 14...
-
Page 14: Connect With Us
Never use harsh chemicals, as they could damage the finish or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and Max 77 lb / 35 kg #modway for a chance to be featured. Max 22lb / 9.9kgs Page 14 of 14...
