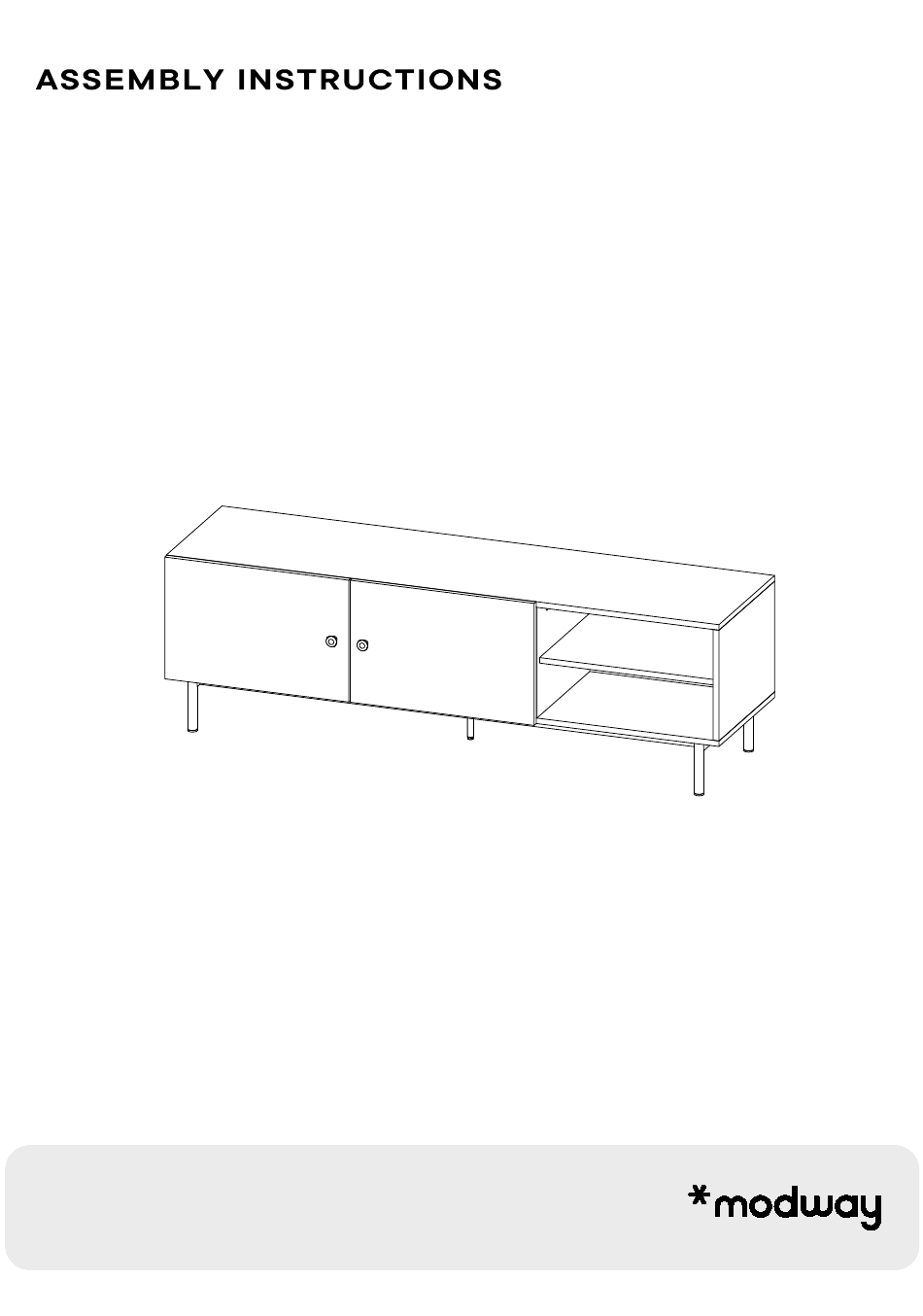

- Page 1 EEI-6282 V1.15.01.23 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
- Page 2 Allen Key M4 C.B Screw M3.5 x 16mm C.B Screw M4 x 25mm Stud Stud Screw JCBC Screw M6 x 35mm Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE...
- Page 3 Minifix Screw Top Panel Cam Lock Wood Dowel M8 x 30mm Side Panel - L Side Panel - R Center Panel - L Center Panel - R Body Support PAGE...
- Page 4 Plastic Cap Top Panel Side Panel - L Side Panel - R Center Panel - L Center Panel - R Body Support Back Panel PAGE...
- Page 5 CSK Cap Wood Screw M6 x 50mm Allen Key M4 Bottom Panel Allen Key M4 JCBC Screw M6 x 50mm Metal Leg Metal Leg Support PAGE...
- Page 6 Allen Key M4 JCBC Screw M6 x 35mm Metal Leg Metal Leg Support C.B Screw M3.5 x 16mm Stud Stud Screw Metal Leg Please note that hardware M has a Plastic adjuster at the bottom to unscrew and adjust the height of hardware M if necessary.
- Page 7 Metal Shelf Support Shelf Panel PAGE...
- Page 8 C.B Screw M3.5 x 16mm C.B Screw M4 x 25mm Handle 209 Knob Soft Closing 5/8 Hinges Door Panel C.B Screw M3.5 x 16mm Fix hardware L into panel (3) and (6) by using hardware E. (Repeat 4 times for each hardware.) Tighten or loosen the screw to adjust STEP 1 position of panel (9).
- Page 9 Not contract grade. Clean using a non-abrasive cloth and a mild cleaner. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE...
