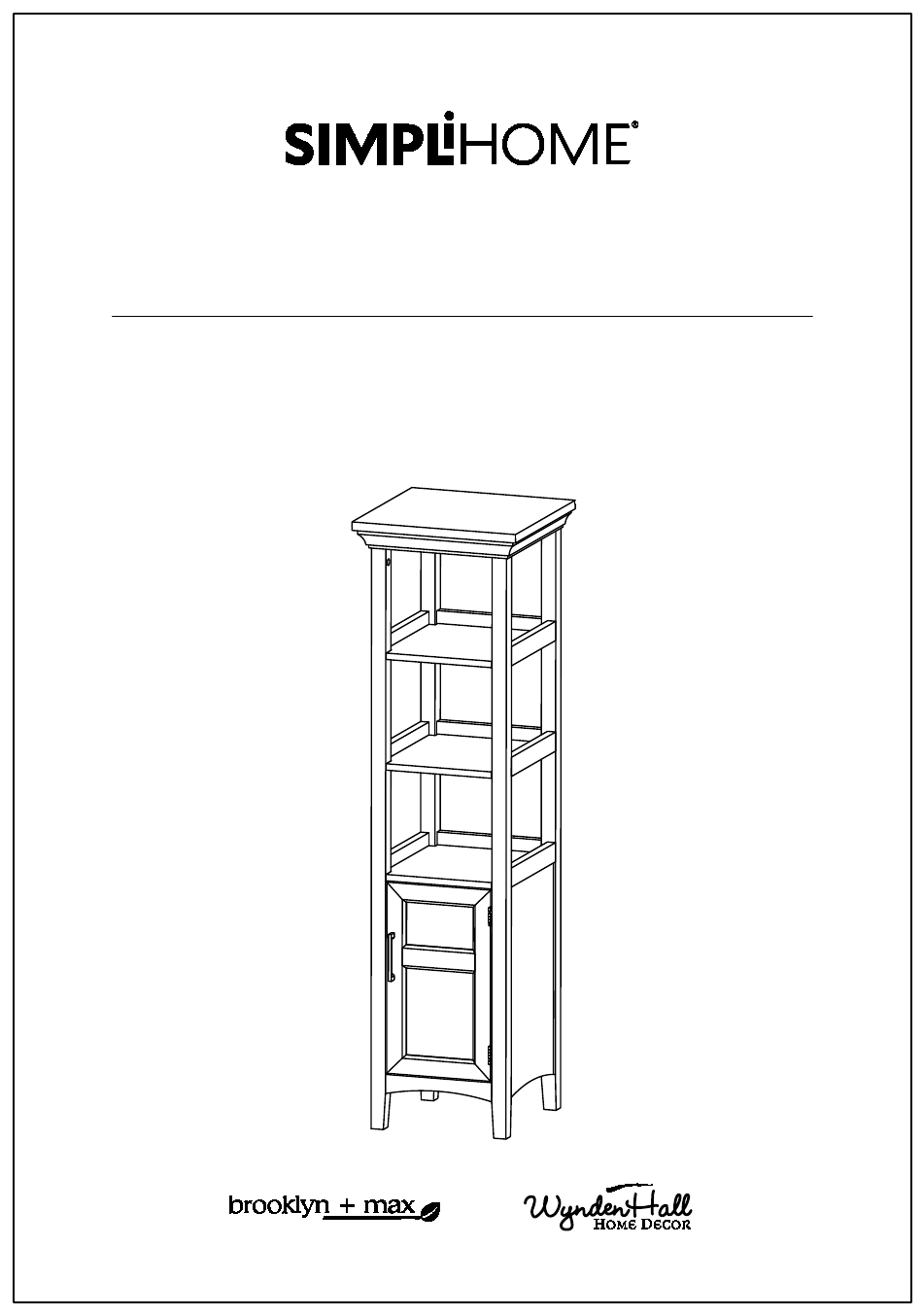

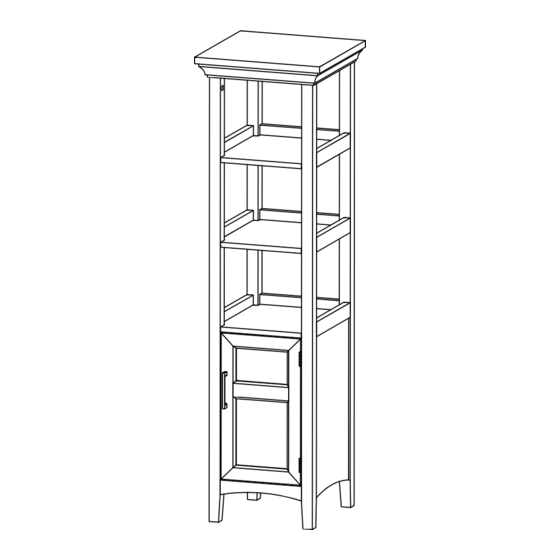

- Page 1 Avington / Mia / Hayes Bath Storage Tower Model # AXCBSAVN05-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information This furniture is designed for indoor use. CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. - Page 6 Pre-Assembly Information Model # AXCBSAVN05-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF SHELF BACK BAR QTY 1 QTY 3 QTY 2 BACK BAR FRONT BAR BACK PANEL DOOR QTY 1 QTY 1 QTY 1 QTY 1...
- Page 7 Pre-Assembly Information Model # AXCBSAVN05-WH Hardware Description CAM LOCK PIN WOOD DOWEL CAM LOCK HINGE Ø8 X 30mm QTY 20 SETS QTY 2 QTY 16 PHILLIPS SCREW HANDLE M4 X 25 mm M3 X 15mm MAGNET AND PLATE QTY 1 SET QTY 12 QTY 1 SET PHILLIPS SCREW ROUND HEAD...
- Page 8 Components - Key Diagram Model # AXCBSAVN05-WH...
- Page 9 Assembly Model # AXCBSAVN05-WH Step 1 1. Insert four Dowels 2 into guide holes on each part E , F , G . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 10 Assembly Model # AXCBSAVN05-WH Step 2 1. Attach Cam Lock Pins 1 into pre-drilled holes on each part A , BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 4. Use Phillips screwdriver to secure Screws. Do not over-tighten.
- Page 11 Assembly Model # AXCBSAVN05-WH Step 3 1. Align Wood Dowels with guide holes on part BL and attach parts E , F , G to Left Side BL . 2. Align Cam Lock Pins with guide holes on parts C , D and attach parts C , D to Left Side BL .
- Page 12 Assembly Model # AXCBSAVN05-WH Step 4 1. Repeat Step 3 for the Right Side BR .
- Page 13 Assembly Model # AXCBSAVN05-WH Step 5 1. Align Cam Lock Pins with guide holes and attach part A to Sides BL ,BR. 2.Insert two Cam Locks 1 into guide holes on each part BL ,BR. Step 6 Note: 1. Attach the Back Panel H to back frame using Phillips Screws Round Head 7 through guide holes from Back Panel.
- Page 14 Assembly Model # AXCBSAVN05-WH Step 7...
- Page 15 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 8 NOTE: The screwdriver is not included in the hardware pack.
- Page 16 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
