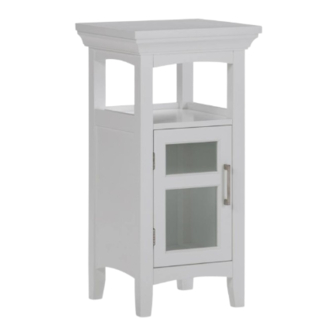

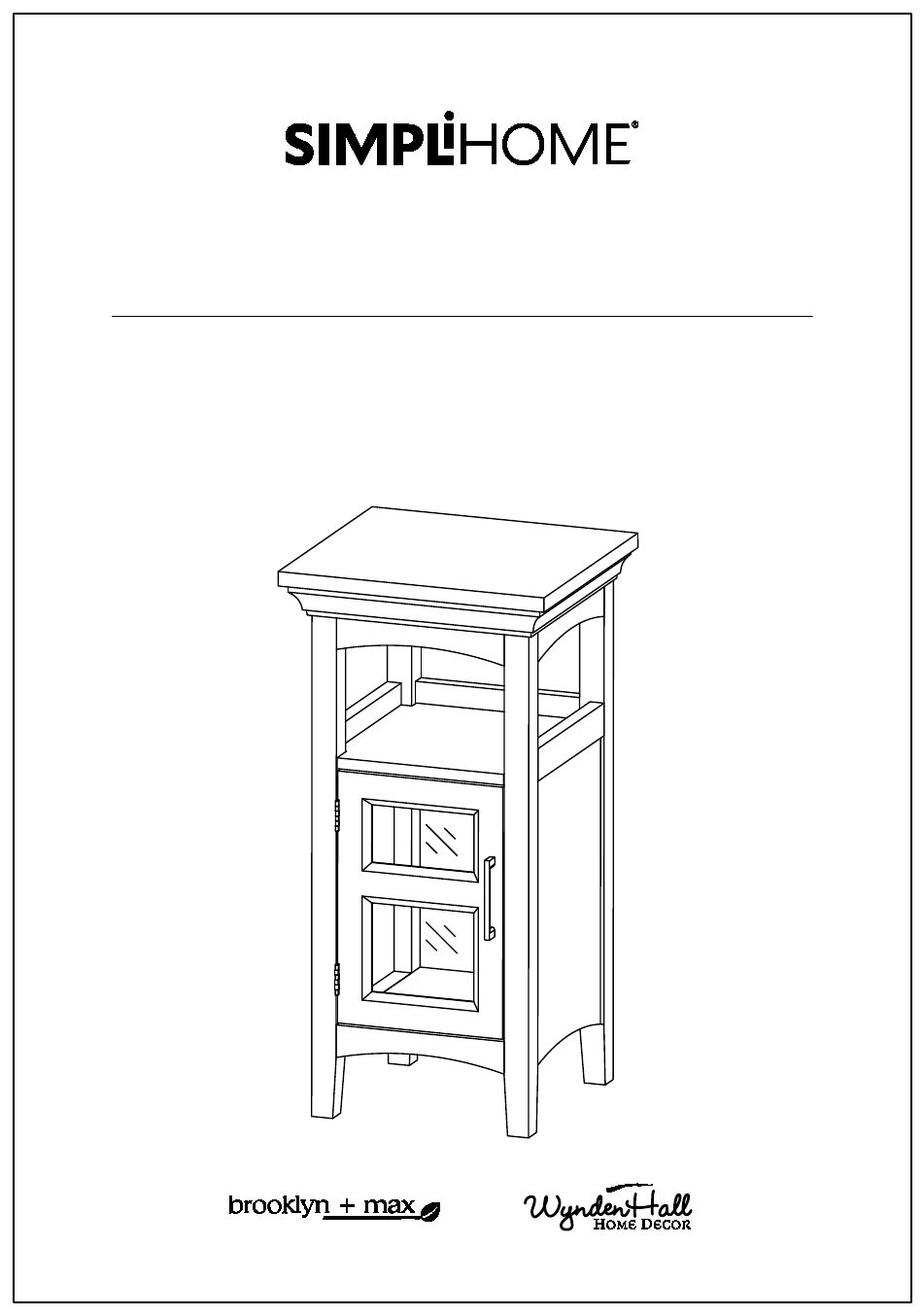

- Page 1 Avington / Mia / Hayes Floor Storage Cabinet Model # AXCBSAVN01-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information This furniture is designed for indoor use. CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. - Page 6 Pre-Assembly Information Model # AXCBSAVN01-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 MIDDLE SHELF BOTTOM SHELF BACK BAR QTY 1 QTY 1 QTY 1 FRONT BAR BACK PANEL DOOR QTY 2 QTY 1 QTY 1...
- Page 7 Pre-Assembly Information Model # AXCBSAVN01-WH Hardware Description CAM LOCK PIN WOOD DOWEL CAM LOCK HINGE Ø8 X 30mm QTY 8 SETS QTY 2 QTY 24 PHILLIPS SCREW PHILLIPS SCREW MAGNET AND PLATE M4 X 50mm M3 X 15mm QTY 1 SET QTY 4 QTY 12 HANDLE...
- Page 8 Components - Key Diagram Model # AXCBSAVN01-WH...
- Page 9 Assembly Model # AXCBSAVN01-WH Step 1 1. Attach four Cam Lock Pins 1 into pre-drilled holes on each Side BL , BR . 2. Insert two Dowels 2 into guide holes on each Side BL , BR . 3. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 10 Assembly Model # AXCBSAVN01-WH Step 2 1. Insert four Dowels 2 into guide holes on each part C , D , E , F . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 Assembly Model # AXCBSAVN01-WH Step 3 1. Align Cam Lock Pin and Wood Dowels with guide holes on parts BR , C , D and attach parts C , D to Right Side BR . 2. Insert two Cam Locks 1 into guide holes on each part C , D . 3.
- Page 12 Assembly Model # AXCBSAVN01-WH Step 5 1. Repeat Step 3 and Step 4 for the Left Side BL .
- Page 13 Assembly Model # AXCBSAVN01-WH Step 6 1. Align Wood Dowels with guide holes and attach Top A to Sides BL , BR . 2. Use four Phillips Screws 5 to attach Top A through guide holes from Sides BL , BR to pre-drilled holes of Top A . 3.
- Page 14 Assembly Model # AXCBSAVN01-WH Step 8 Step 9...
- Page 15 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 10 NOTE: The screwdriver is not included in the hardware pack.
- Page 16 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
