Avington / Mia / Hayes

Space Saver Cabinet

Model # AXCBSAVN07-WH

Need help?

Do you have a question about the Avington AXCBSAVN07-WH and is the answer not in the manual?

Questions and answers

Summary of Contents for SIMPLIHOME Avington AXCBSAVN07-WH

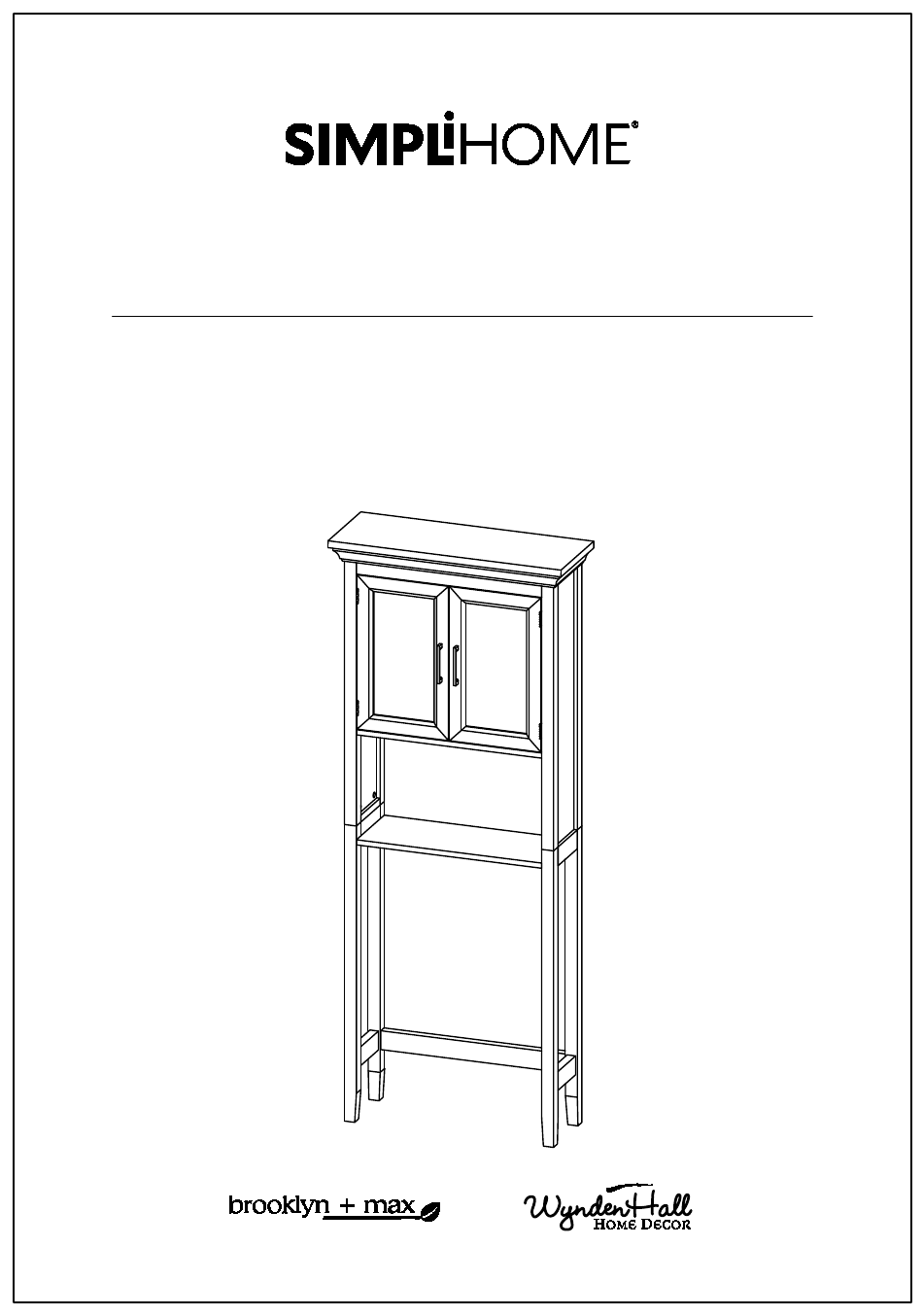

Page 1 Avington / Mia / Hayes Space Saver Cabinet Model # AXCBSAVN07-WH...
Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information This furniture is designed for indoor use. CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall.
Page 6 Pre-Assembly Information Model # AXCBSAVN07-WH Part Description TOP LEFT SIDE TOP RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM LEFT SIDE BOTTOM RIGHT SIDE MIDDLE SHELF QTY 1 QTY 1 QTY 1 BOTTOM SHELF TOP BAR BOTTOM BAR QTY 1 QTY 1 QTY 1...
Page 7 Pre-Assembly Information Model # AXCBSAVN07-WH Part Description DOOR (L&R Same) TOP BACK PANEL MIDDLE BACK PANEL QTY 2 QTY 1 QTY 1 BOTTOM BACK PANEL JOINING STRIP SHELF QTY 1 QTY 1 QTY 1...
Page 8 Pre-Assembly Information Model # AXCBSAVN07-WH Hardware Description CAM LOCK PIN WOOD DOWEL CAM LOCK HINGE MAGNET AND PLATE Ø8 X 30mm QTY 18 SETS QTY 4 QTY 2 SETS QTY 12 HANDLE PHILLIPS SCREW SHELF SUPPORT BRACKET M4 X 25 mm M4 X 50mm QTY 4 QTY 2...
Page 9 Components - Key Diagram Model # AXCBSAVN07-WH...
Page 10 Assembly Model # AXCBSAVN07-WH Step 1 2. Use Phillips screwdriver to secure Screws. Do not over-tighten. 3. Insert four Dowels 2 into guide holes on part F . 4. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
Page 11 Assembly Model # AXCBSAVN07-WH Step 2 1. Attach Cam Lock Pins 1 into pre-drilled holes on each part A , BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
Page 12 Assembly Model # AXCBSAVN07-WH Step 3 1. Align Wood Dowels with guide holes on part BL and attach part F to Left Side BL . 2. Align Cam Lock Pins with guide holes on part D and attach part D to Left Side BL . 3.
Page 13 Assembly Model # AXCBSAVN07-WH Step 4 1. Repeat Step 3 for the Right Side BR .
Page 14 Assembly Model # AXCBSAVN07-WH Step 5 1. Align Cam Lock Pins with guide holes and attach part A to Sides BL , BR . 2. Insert two Cam Locks 1 into guide holes on each part BL , BR . 4.
Page 15 Assembly Model # AXCBSAVN07-WH Step 6 1. Attach five Cam Lock Pins 1 into pre-drilled holes on each part CL , CR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Dowels 2 into guide holes on parts G , CL , CR . 4.
Page 16 Assembly Model # AXCBSAVN07-WH Step 7 1. Align Wood Dowels and Cam Lock Pins with guide holes and attach parts E , G to part CL . 2. Insert Cam Locks 1 into guide holes on parts E , G . 3.
Page 17 Assembly Model # AXCBSAVN07-WH Step 8 1. Repeat Step 7 for the Bottom Right Side CR .
Page 18 Assembly Model # AXCBSAVN07-WH Step 9 1. Align Wood Dowels and Cam Lock Pins with guide holes on top fame and attach top frame to bottom frame. 2. Insert four Cam Locks 1 into guide holes on top fame . 4.
Page 19 Assembly Model # AXCBSAVN07-WH Step 10 Warning Label Note: 1. Attach the Back Panels I , I1 , I2 to back frame using Phillips Screws Round Head 11 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
Page 20 Assembly Model # AXCBSAVN07-WH Step 11 1. Use four Shelf Supports 7 for Shelf K in desired location .
Page 21 Assembly Model # AXCBSAVN07-WH Step 12...
Page 22 Assembly Model # AXCBSAVN07-WH Step 13...
Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.

This manual is also suitable for:

Mia axcbsavn07-wh Hayes axcbsavn07-wh
