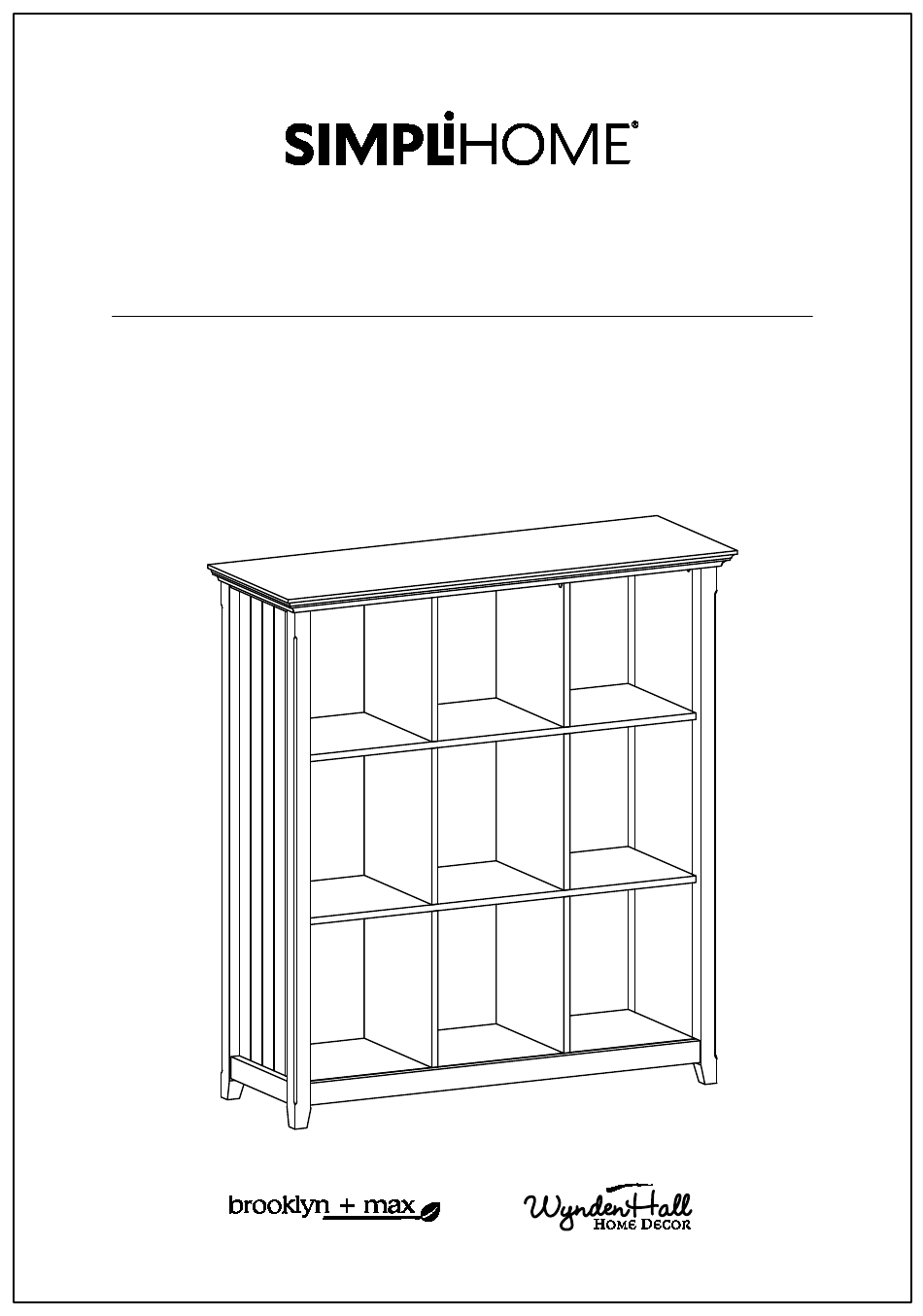

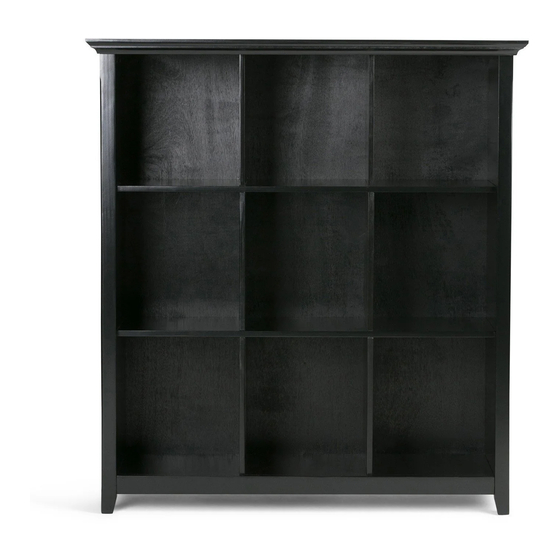

- Page 1 Acadian / Normandy / Brunswick 9 Cube Bookcase and Storage Unit Model # AXCB222-GR...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCB222-GR Part Description V16-A V16-BL V16-BR LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 V16-C V16-C1 V16-C2 BOTTOM DIVIDER MIDDLE DIVIDER TOP DIVIDER ( L&R Same) ( L&R Same) ( L&R Same) QTY 2... -
Page 8: Pre-Assembly Information
Pre-Assembly Information Model # AXCB222-GR Hardware Description CAM LOCK PIN ALLEN KEY SCREW CAM LOCK M6 X 30mm ALLEN KEY QTY 30 SETS QTY 6 QTY 1 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1... - Page 9 Components - Key Diagram Model # AXCB222-GR V16-A V16-BR V16-FL V16-F1 V16-FR V16-BL V16-D V16-C2 V16-C2 V16-D V16-C1 V16-C1 V16-C V16-C V16-E...
- Page 10 Assembly Model # AXCB222-GR Step 1 V16-C V16-C V16-E 1. Attach Bottom Dividers V16-C using six Allen Key Screws 1 through guide holes on Bottom Shelf V16-E . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten Step 2...
- Page 11 Assembly Model # AXCB222-GR Step 3 V16-E V16-C1 V16-C1 V16-D 1. Align Wood Dowels with guide holes on Top Shelf V16-D and attach Bottom Dividers V16-C1 to Top Shelf V16-D . V16-C1 V16-E V16-C1 V16-D V16-C1 Step 4 V16-D V16-E V16-D 1.
- Page 12 Assembly Model # AXCB222-GR Step 5 V16-BL V16-BR 1. Attach nine Cam Lock Pins 2 into pre-drilled holes on each Side V16-BL , V16-BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 13 Assembly Model # AXCB222-GR Step 6 V16-BR V16-D V16-D V16-E 1. Align Cam Lock Pin with guide holes on parts V16-E , V16-D and attach Right Side V16-BR to parts V16-D , V16-E . V16-BR V16-D V16-D V16-E 2. Insert three Cam Locks 2 into guide holes on each part V16-D , V16-E .
- Page 14 Assembly Model # AXCB222-GR Step 7 V16-BL V16-D V16-BR V16-E V16-BL V16-D V16-BR V16-E 1. Repeat Step 6 for the Left Side V16-BL .
- Page 15 Assembly Model # AXCB222-GR Step 8 V16-E V16-D V16-BL V16-C2 V16-C2 V16-BR 1. Align Wood Dowels with guide holes on Top Shelf V16-D and attach Top Dividers V16-C2 to Top Shelf V16-D . V16-D V16-E V16-BL V16-C2 V16-C2 V16-BR...
- Page 16 Assembly Model # AXCB222-GR Step 9 V16-A 1. Attach twelve Cam Lock Pins 2 into pre-drilled holes on Top V16-A . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 17 Assembly Model # AXCB222-GR Step 10 V16-BL V16-A V16-E V16-C2 V16-BR 1. Align Cam Lock Pin with guide holes on parts V16-BL , V16-BR , V16-C2 and attach Top V16-A to parts V16-BL , V16-BR , V16-C2 . V16-BL V16-A...
- Page 18 Assembly Model # AXCB222-GR Step 11 V16-A Warning Label V16-FL V16-F1 V16-FR Note: V16-A V16-FL V16-F1 V16-FR 1. Attach the Back Panels V16-FL , V16-FR , V16-F1 to back frame using Phillips Screws Round Head 4 through guide holes from Back Panels.
- Page 19 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 12 NOTE: The screwdriver is not included in the hardware pack.
- Page 20 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
