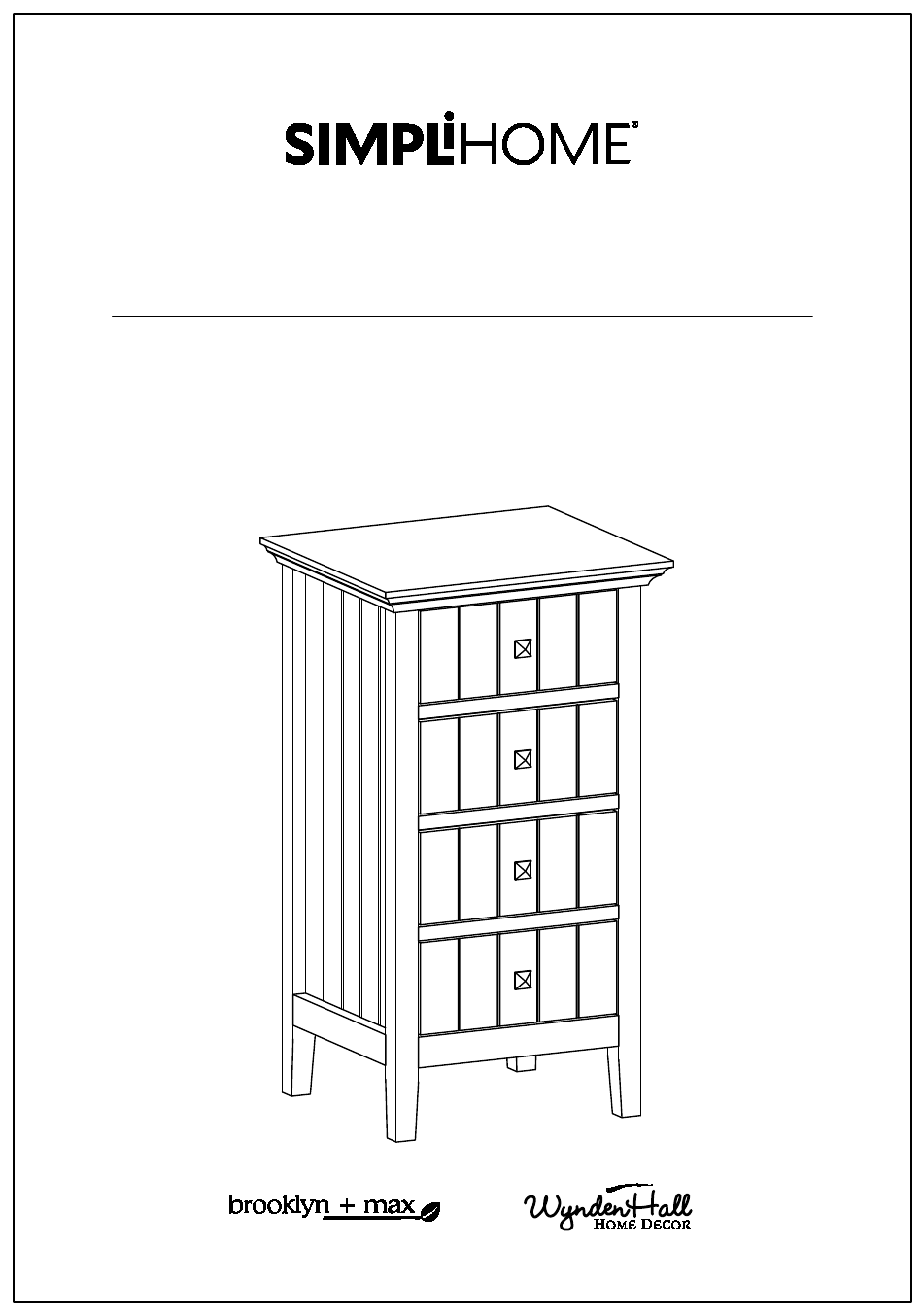

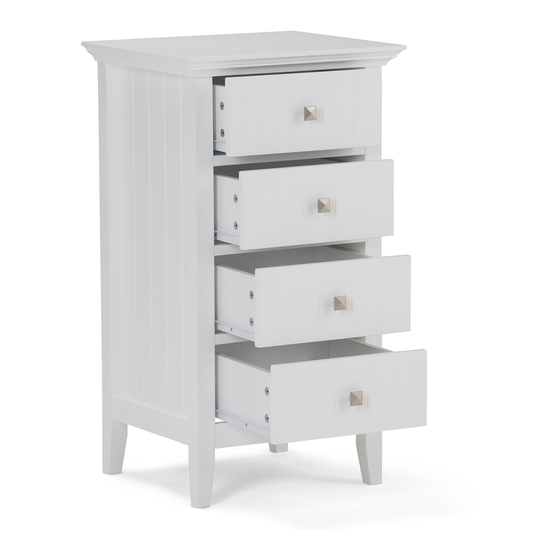

- Page 1 Acadian / Normandy / Brunswick Four Drawer Floor Cabinet Model # AXCBSACA02-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information This furniture is designed for indoor use. CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. -
Page 6: Drawer Bottom
Pre-Assembly Information Model # AXCBSACA02-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 CROSS BAR CROSS BAR DRAWER FRONT QTY 2 QTY 3 QTY 4 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 4 QTY 4 QTY 4 DRAWER BOTTOM BACK PANEL... - Page 7 Pre-Assembly Information Model # AXCBSACA02-WH Hardware Description CAM LOCK PIN WOOD DOWEL HANDLE CAM LOCK Ø8 X 30mm M4x25mm QTY 26 SETS QTY 16 QTY 4 SETS PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15mm M4 X 40mm QTY 14 QTY 1 SET QTY 16 Required -...
- Page 8 Components - Key Diagram Model # AXCBSACA02-WH...
- Page 9 Assembly Model # AXCBSACA02-WH Step 1 1. Attach Cam Lock Pins 1 into pre-drilled holes on each part A , BL , BR . 2. Insert Wood Dowels 2 into guide holes on each part BL , BR , C , D . 3.
- Page 10 Assembly Model # AXCBSACA02-WH Step 2 1. Align Wood Dowels and Cam Lock Pins with guide holes and attach parts C , D to Right Side BR . 2. Insert one Cam Lock 1 into guide holes on each part D . 3.
- Page 11 Assembly Model # AXCBSACA02-WH Step 3 1. Repeat Step-2 for the Left Side BL . Step 4 1. Align Dowels and Cam Lock Pins with guide holes and attach Top A to Sides BL , BR . 2. Insert two Cam Locks 1 into guide holes on Sides BL , BR . 3.
- Page 12 Assembly Model # AXCBSACA02-WH Step 5 Note: 1. Attach the Back Panel I to back frame using Phillips Screws Round Head 4 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. Step 6 1.
- Page 13 Assembly Model # AXCBSACA02-WH Step 7 7. Use Phillips screwdriver to attach Handle 3 to Drawer Front E .
- Page 14 Assembly Model # AXCBSACA02-WH Step 8 1. Insert assembled drawers into glides on assembled cabinet.
- Page 15 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 9 NOTE: The screwdriver is not included in the hardware pack.
- Page 16 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
