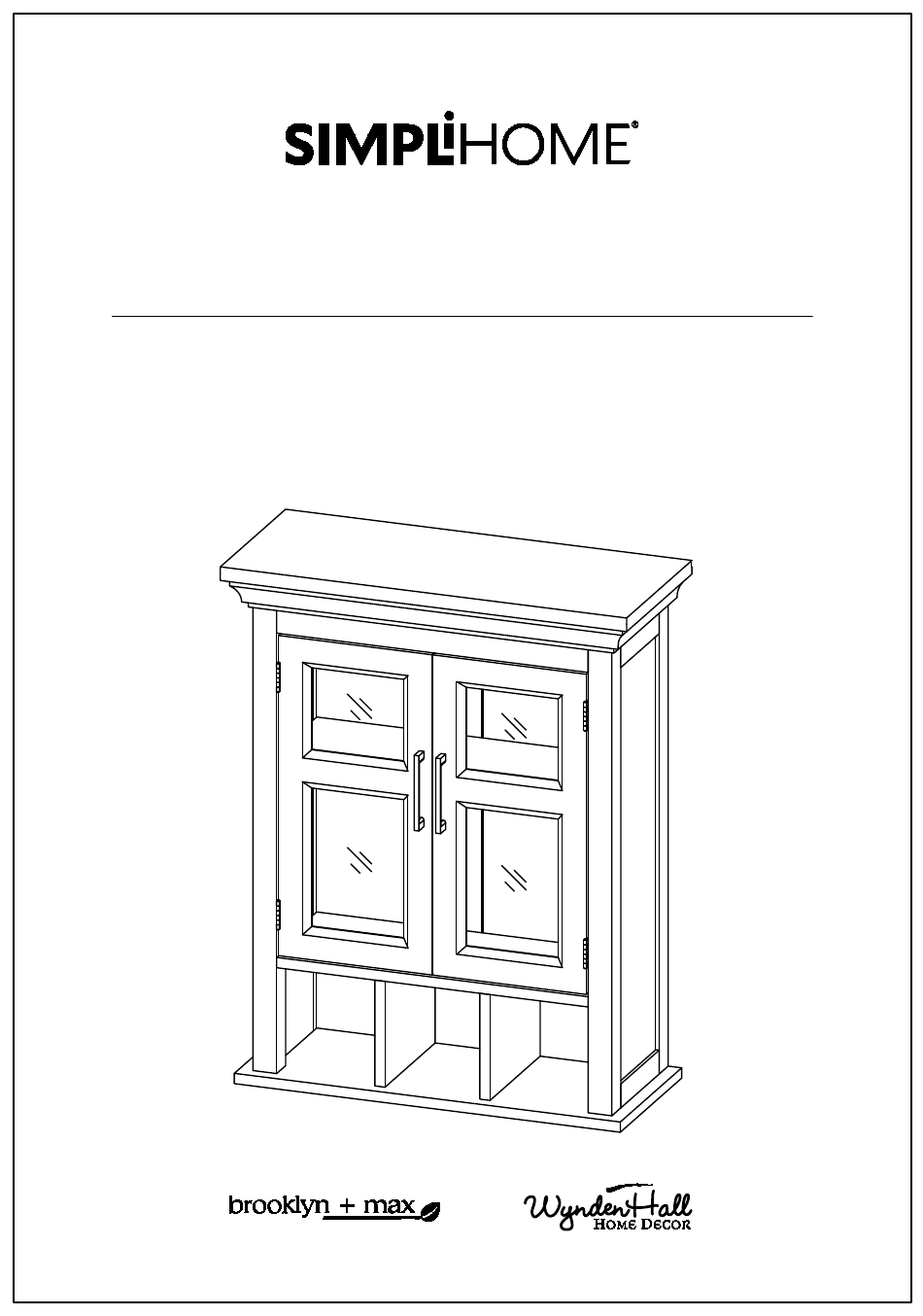

- Page 1 Avington / Mia / Hayes Two Door Wall Cabinet With Cubbies Model # AXCBSAVN04-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information This furniture is designed for indoor use. Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. -
Page 6: Bottom Shelf
Pre-Assembly Information Model # AXCBSAVN04-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF DIVIDER MIDDLE SHELF QTY 1 QTY 2 QTY 1 FRONT BAR BACK BAR LEFT BACK PANEL QTY 1 QTY 1 QTY 1... - Page 7 Pre-Assembly Information Model # AXCBSAVN04-WH Part Description Warning Label RIGHT BACK PANEL LEFT DOOR RIGHT DOOR QTY 1 QTY 1 QTY 1 WALL MOUNT BAR SHELF JOINING STRIP QTY 1 QTY 1 QTY 1...
- Page 8 Pre-Assembly Information Model # AXCBSAVN04-WH Hardware Description CAM LOCK PIN WOOD DOWEL CAM LOCK HINGE Ø8 X 30mm QTY 8 SETS QTY 4 QTY 26 PHILLIPS SCREW PHILLIPS SCREW MAGNET AND PLATE M4 X 50mm M3 X 15mm QTY 2 SETS QTY 9 QTY 24 HANDLE...
- Page 9 Components - Key Diagram Model # AXCBSAVN04-WH...
- Page 10 Assembly Model # AXCBSAVN04-WH Step 1 1. Attach Cam Lock Pins 1 into pre-drilled holes on parts A , BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert three Dowels 2 into guide holes on each Side BL , BR . 4.
- Page 11 Assembly Model # AXCBSAVN04-WH Step 2 2. Use Phillips screwdriver to secure screws . Do not over-tighten. Step 3 1. Insert four Dowels 2 into guide holes on each part D , E , F , G . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 12 Assembly Model # AXCBSAVN04-WH Step 4 1. Align Wood Dowels with guide holes and attach parts E , F , G to Left Side BL . 2. Insert two Cam Locks 1 into guide holes on Bottom Shelf E . 3.
- Page 13 Assembly Model # AXCBSAVN04-WH Step 5 1. Repeat Step 4 for the Right Side BR .
- Page 14 Assembly Model # AXCBSAVN04-WH Step 6 1. Align Wood Dowels with guide holes and attach Divders D to Middle Shelf E . 2. Align Wood Dowels with guide holes and attach Divders D and Sides BL , BR to Bottom Shelf C . 3.
- Page 15 Assembly Model # AXCBSAVN04-WH Step 7 Warning Label Warning Label 3. Use four Phillips Screws Round Head 10 to attach Back Panels HL , HR through guide holes. 4. Use Phillips screwdriver to secure Screws. Do not over-tighten.
- Page 16 Assembly Model # AXCBSAVN04-WH Step 8 1. Align Cam Lock Pin and Wood Dowels with guide holes on Sides BL , BR and Top A and attach Top A to Sides BL , BR . 2. Insert two Cam Locks 1 into guide holes on each Side BL , BR . 3.
- Page 17 Assembly Model # AXCBSAVN04-WH Step 9 Step 10...
- Page 18 Assembly Model # AXCBSAVN04-WH Step 11...
- Page 19 Assembly Model # AXCBSAVN04-WH Step 12 - Positioning 1. Determine the location for the unit on the wall. The Top A should be approximately 1 ¼” above the top of the Wall Mount Bar J when mounted. 2. Place the Wall Mount Bar J at the predetermined height. Use a level to ensure that it is straight.
- Page 20 Assembly Model # AXCBSAVN04-WH Step 14 1. Align the top of the Wall Mount Bar J with the bottom of the angled bracket on the back of the Cabinet. 2. Gently slide the Cabinet down on to the Wall Mount Bar J .
