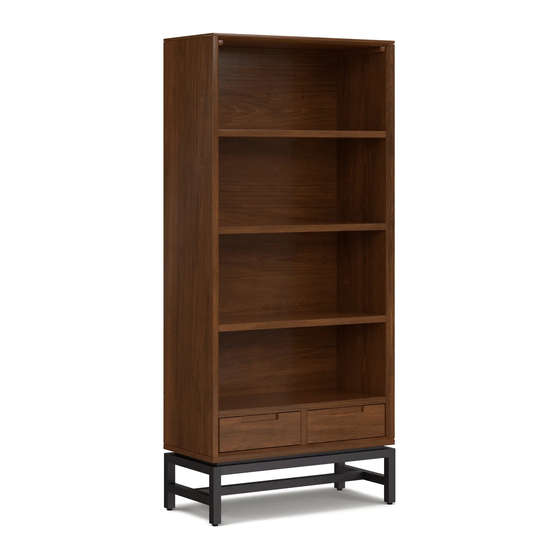

Banting / Devlin / Argyle
Mid Century Bookcase
Model # AXCBAN-12
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn+Max AXCBAN-12 and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME WyndenHall Brooklyn+Max AXCBAN-12

Summary of Contents for SIMPLIHOME WyndenHall Brooklyn+Max AXCBAN-12

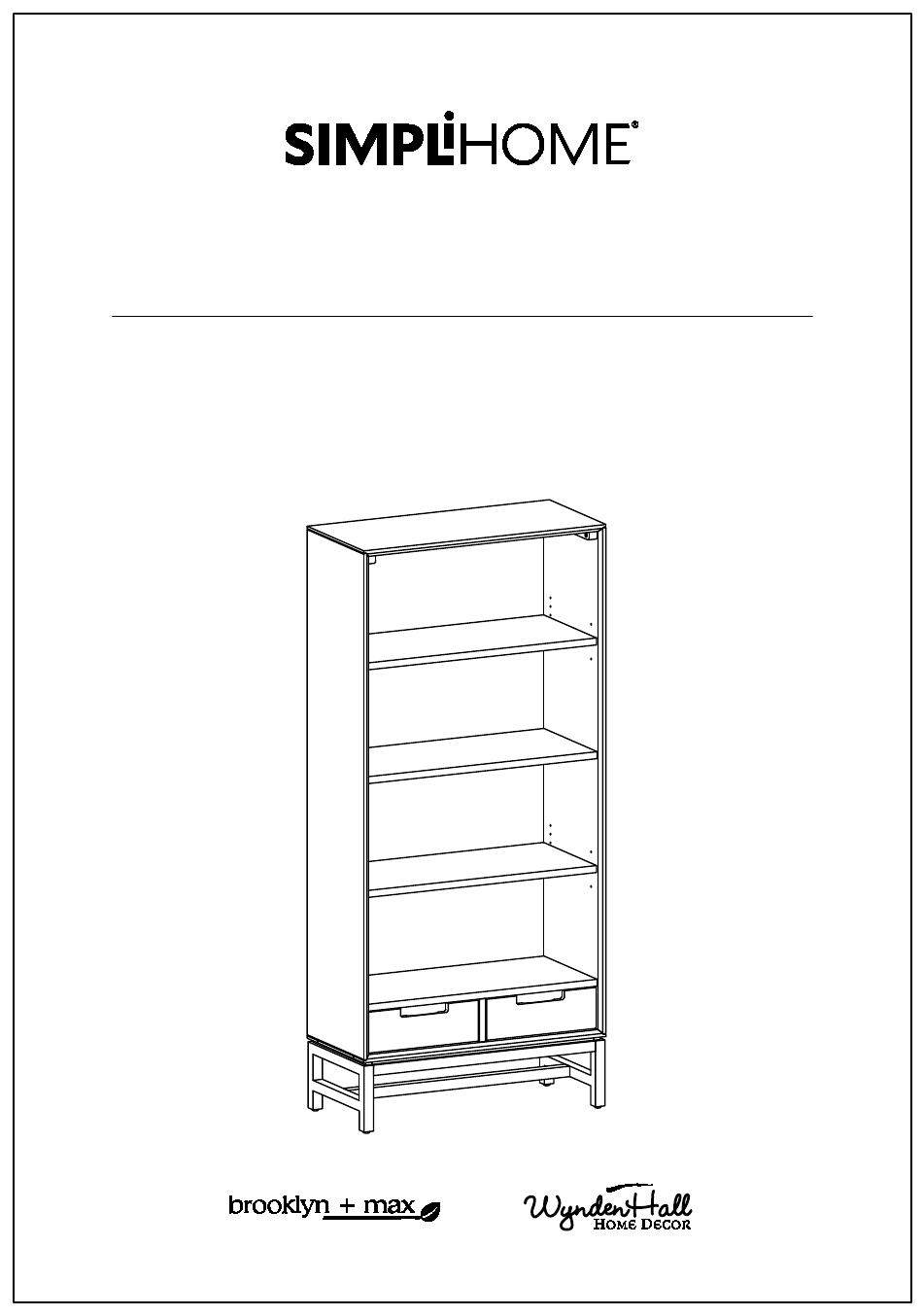

  • Page 1 Banting / Devlin / Argyle Mid Century Bookcase Model # AXCBAN-12...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 7: Bottom Shelf

    Pre-Assembly Information Model # AXCBAN-12 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 SHELF CABINET SHELF CABINET SHELF QTY 2 QTY 1 QTY 1 Warning Label BOTTOM SHELF DIVIDER TOP BACK PANEL QTY 1 QTY 1 QTY 1...

  • Page 8: Drawer Bottom

    Pre-Assembly Information Model # AXCBAN-12 Part Description BOTTOM BACK PANEL MIDDLE BACK PANEL DRAWER FRONT QTY 1 QTY 3 QTY 2 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 2 QTY 2 QTY 2 LEG UPPER CONNECTOR DRAWER BOTTOM LEG (L&R Same) QTY 2 QTY 2...
  • Page 9 Pre-Assembly Information Model # AXCBAN-12 Hardware Description WOOD DOWEL CAM LOCK PIN ALLEN KEY Ø8 X 30mm CAM LOCK QTY 1 QTY 20 QTY 16 SETS ALLEN KEY SCREW ALLEN KEY BOLT ALLEN KEY BOLT M6 X 30mm M6 x 30 mm M6 x 15 mm QTY 14 QTY 12...
  • Page 10 Components - Key Diagram Model # AXCBAN-12...
  • Page 11 Assembly Model # AXCBAN-12 Step 1 1. Attach four Cam Lock Pins 3 into pre-drilled holes at back of Drawer Front K . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
  • Page 12 Assembly Model # AXCBAN-12 Step 3 Step 4 1. Align Drawer Back M with Drawer Bottom N and press firmly into slot . 2. Attach Drawer Back using two Allen Key Screws 4 through drilled holes on each Drawer Side LL , LR . 3.
  • Page 13 Assembly Model # AXCBAN-12 Step 5 1. Insert four Dowels 1 into guide holes on Cabinet Shelf E . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach two Cam Lock Pins 3 into pre-drilled holes at Cabinet Shelf E . 4.
  • Page 14 Assembly Model # AXCBAN-12 Step 7 1. Align Wood Dowels with guide holes on Cabinet Shelf E ; align Cam Lock Pins with guide holes on Divider G and attach Divider G .
  • Page 15 Assembly Model # AXCBAN-12 Step 8 1. Insert four Dowels 1 into guide holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
  • Page 16 Assembly Model # AXCBAN-12 Step 9 1. Align Wood Dowels with guide holes on Right Side BR and attach Cabinet Shelf E to Right Side BR . 2. Use two Allen Key Screws 4 to attach Cabinet Shelf E through guide holes from 3.
  • Page 17 Assembly Model # AXCBAN-12 Step 10 1. Insert four Dowels 1 into guide holes on Cabinet Shelf D . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 11 1.
  • Page 18 Assembly Model # AXCBAN-12 Step 12 1. Align Wood Dowels with guide holes on Left Side BL ; align Cam Lock Pins with guide holes on Cabinet Shelf D and attach Left Side BL . 2. Insert three Cam Locks 3 into guide holes on Cabinet Shelf D . Use Phillips screwdriver to secure Cam Locks.
  • Page 19 Assembly Model # AXCBAN-12 Step 13 1. Align Wood Dowels with guide holes on Bottom Shelf F attach Divider G , Sides BL , BR to Bottom Shelf F . 2. Use six Allen Key Bolts 5 to attach Sides BL , BR through guide holes from Bottom Shelf F to Sides BL , BR .
  • Page 20 Assembly Model # AXCBAN-12 Step 14 1. Align Wood Dowels with guide holes on Top A and attach Top A to Sides BL , BR . 2. Use six Allen Key Bolts 5 to attach Sides BL , BR through guide holes from Sides BL , BR to Top A .
  • Page 21 Assembly Model # AXCBAN-12 Step 15 1. Align Parts P , Q to Leg O . 2. Use one Bolt 6 , one Lock Washer 7 and one Washer 8 to secure each part P , Q with O . 3.
  • Page 22 Assembly Model # AXCBAN-12 Step 16 1. Repeat Step 1 for second Leg O . 2. Use Allen Key 2 to tighten Bolts.
  • Page 23 Assembly Model # AXCBAN-12 Step 17 1. Align iron dowels with guide holes on wooden frame and attach the assembled metal frame to bottom wooden frame . 2. Use four Bolts 6 , four Lock Washers 7 and four Washers 8 to secure metal frame and wooden frame .
  • Page 24 Assembly Model # AXCBAN-12 Step 18...
  • Page 25 Assembly Model # AXCBAN-12 Step 19 Warning Label Note: The back of the cabinet frame does not have pre-drilled holes to attach the back panels. 1. Attach the Top Back Panel H to back frame using Phillips Screws Round Head 9 through guide holes on Top Back Panel to the back of Bookcase.
  • Page 26 Assembly Model # AXCBAN-12 Step 20 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 10 for each Cabinet Shelf C in desired location . 2. Two Shelf Supports 10 may be used on back top of each Cabinet Shelf C as a tipping restraint.
  • Page 27 Assembly Model # AXCBAN-12 Step 21 1. Insert assembled drawers into glides on assembled Bookcase. Step 22 Note: Levelers on bottom of legs can be adjusted if floor is uneven.
  • Page 28 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 23 NOTE: The screwdriver is not included in the hardware pack.
  • Page 29 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
