iC7-Automation Frequency Converters Quick Installation Guide
Installation Guide
1 Instructions
1.1 Safety and Installation Awareness
A quick installation guide and a safety guide are provided with the drive. Before starting installation, read all safety guidelines and
precautions in the safety guide (136R0243). For details on cyber security, see Security Features in the application guide (136R0283).
Additional resources - including a design guide, an application guide, and a comprehensive installation guide - can be downloaded
at www.danfoss.com/service-and-support.
1.2 Required Tools
• Lifting aid
• Measuring tape
• Wrench with extensions and 8, 17, 19 mm sockets
• Torx and slotted screwdrivers (T25, SL1, and SL2)
• Wire crimper
• Sheet metal punch and/or pliers for cable entry plate
1.3 Verifying the Shipment and the Contents
Make sure that the items supplied and the information on the product label correspond to the order confirmation. The product
label is placed on the lower right corner of the exterior door and also on the interior of the drive.
1
2
3
1
4
2
3
4
5
6

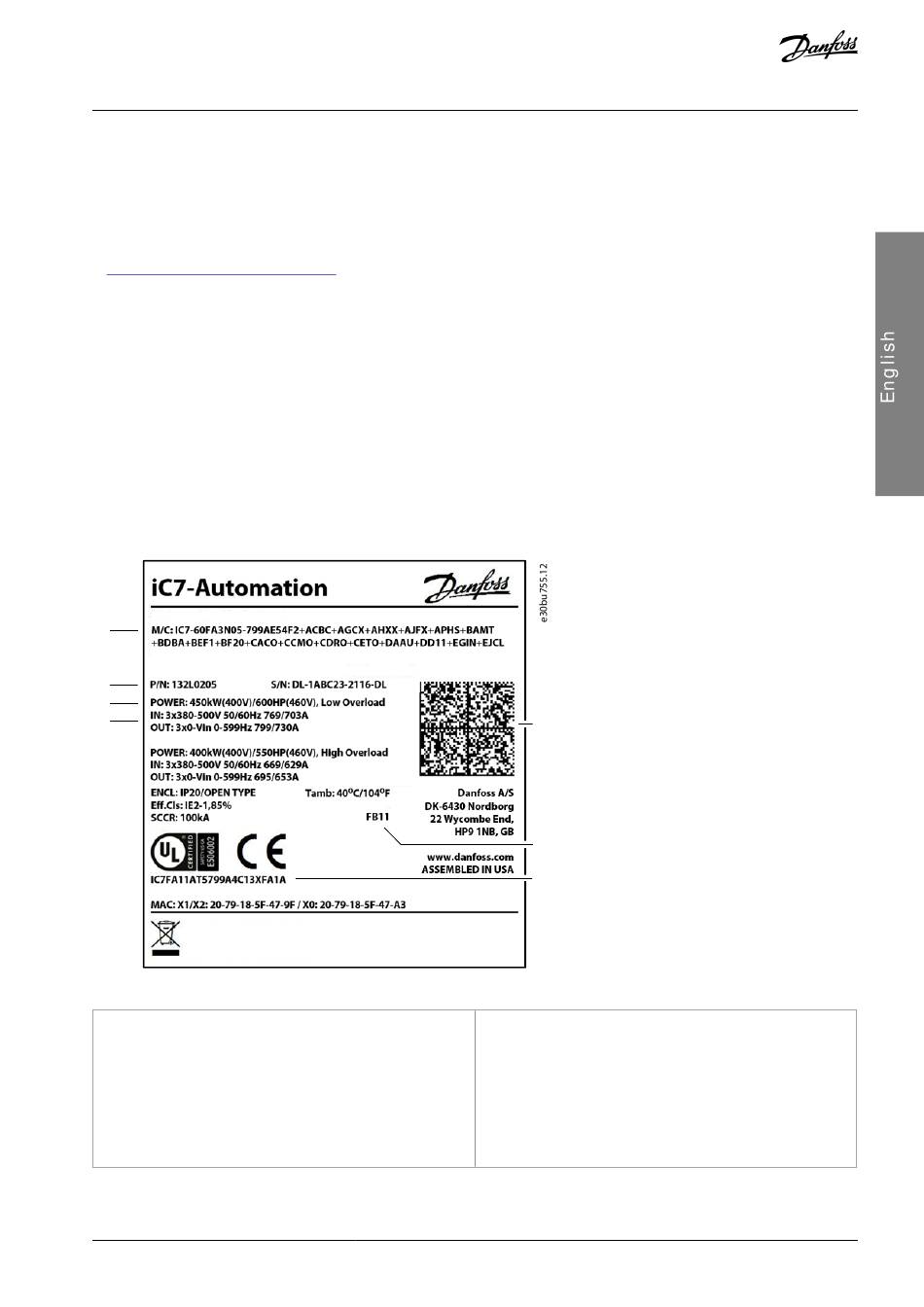

Illustration 1: Example of the Model Code on the Product Label
1 Model code
2 Code number, serial number, and manufacture date
(YYWW)
3 Power rating
4 Input and output voltage, frequency, and current
Danfoss A/S © 2023.05
5
6
7
5 2D code – accessible by using a Datamatrix ECC 200
compatible barcode reader – containing the model
code, code number, serial number, and manufacture
date
6 Frame designation
7 Compliance code
AN35344302649001-000201 / 136R0272 | 5
Instructions
