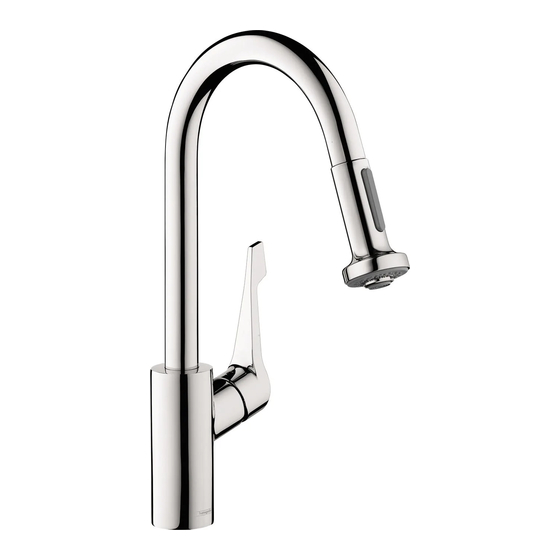

- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Cento 04705xx5 Talis Loop 04702xx5...
-
Page 2: Installation Considerations
English Français Technical Information Données techniques Recommended water pressure 15 - 75 PSI Pression d’eau recommandée 15 - 75 PSI Max. water pressure 145 PSI Pression d’eau maximum 145 PSI Recommended hot water temp. 120° - 140° F* Température recommandée 120° - 140° F* Max. hot water temp 176°F* d'eau chaude Flow rate max. 1.75 GPM Température maximum d'eau chaude 176°F* Hole size in mounting surface 1½" Capacité nominale 1.75 GPM Max. depth of mounting surface 2⅜" Dimension du trou dans la surface 1½ po de montage Profondeur maximale de la surface 2⅜ po *Please know and follow all applicable local plumbing de montage codes when setting the temperature on the water heater. Installation Considerations * Vous devez connaître et respecter tous les codes de plomberie locaux applicables pour le réglage de la • For best results, Hansgrohe recommends that... -
Page 3: Datos Tecnicos
Español Datos tecnicos Tools Required / Outiles Utiles / Herramientas Útiles Presión recomendada en servicio 15 - 75 PSI Presión en servicio max. 145 PSI Temperatura recomendada del 120° - 140° F* agua caliente Temperatura del agua caliente max. 176° F* Caudal máximo 1.75 GPM Tamaño del orificio en la superficie 1½" de montaje 9 mm Profundidad máxima de la 2⅜" 16 mm superficie de montaje *Debe conocer y cumplir todos los códigos locales aplicables para ajustar la temperatura del calentador de agua. Consideraciones para la instalación • Para obtener mejores resultados, la instalación debe estar a cargo de un plomero profesional matriculado. - Page 4 Talis Loop Cento 04702xx5 04705xx5 9⅝" 9⅝" 1⅛" 1⅛" 8⅞" 8⅞" 3¾" 4⅝" 6" 2⅝" 3" 4¼" 1⅛" 2" Ø 2" Ø Ø 2" 1⅜" Ø 1⅜" 1⅜" ⅜ ⅜ ⅜ 9⅝" 1⅛" 8⅞" 3¾" 2⅝" Ø 2" 1⅜"...
-
Page 5: Installation / Installation / Instalación
Installation / Installation / Instalación English Français Español Place the faucet and sealing ring Placez l'anneau d'étanchéite Coloque el oro de sellado y on the mounting surface. et le robinet sur la surface de el grifo sobre la superficie de montage. montaje. Install the plastic washer, fric- tion washer, metal washer, and Installez la rondelle de plas- Instale la arandela plástica, la mounting nut. tique, la rondelle en fibre, la arandela de fibra, la aran- rondelle de friction, et l'écrou de dela de fricción y la tuerca de... - Page 6 CLICK! English Français Español Connect the hot and cold supply Connectez les tuyaux d'arrivée Conecte las mangueras de sumi- hoses to the stops. d'eau chaude et d'eau froide nistro de agua caliente y fría a aux tuyau d'alimentation. las alimentaciones de la red. Use two wrenches. Servez-vous de deux Use dos llaves, como se Do not allow the supply clés, tel qu'illustre dans illustra en el diagrama. hoses to twist. le schema. Serrez ferme- ment a l'aide des clés.
- Page 7 CLICK! English Français Español Install the hose weight on the Installez le contrepoids sur le Instale el contrapeso. handshower side of the hose, tuyau. near the loop. Tire del rociador de mano. Debe Tirez sur la douchette. Elle moverse con facilidad y retraerse Test the handspray hose. If it devrait coulisser facilement et se suavemente. Reposicione el con- does not retract smoothly, reposi- rétracter sans à-coups. Modifiez trapeso según sea necesario.
- Page 8 > 2 min English Français Español Remove the sprayhead. Retirez la douchette. Retire la ducha. Remove the hose filter. Retirez le filtre. Retire el filtro. Flush the faucet for at least two Rincez le robinet pour un mini- Enjuague el grifo durante un minutes. mum de deux minutes. mínimo de dos minutos. Flush the hose filter. Rincez le filtre. Enjuague el filtro. Instale el filtro y la ducha. Reinstall the hose filter and Installez le filtre et la douchette.
- Page 9 Set the High Temperature Limit Stop (optional) / Réglage de la butée limite d’eau chaude (en option) / Ajuste el tope de límite de alta temperatura (opcional) 4 mm 140°F 50° F 44 PSI 4 mm...
- Page 10 Replacement Parts / Pièces détachées / Repuestos 97735000 96338000 95562xx0 95140000 95498xx0 96338000 95008000 37x2 97209000 97350000 92730000 13913xx0 41x2 97523000 88658xx0 96316001 95561000 88624000 95049000 xx = Colors / Couleurs / Acabados 00 = Chrome 82 = Steel Optik...
- Page 11 User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrado cold froid chaud frío caliente Press the diverter bar to obtain the spray mode. Release the diverter bar to return to the aerated mode. Pour activer le mode jet, appuyez sur l’inverseur et retenez-le. Lorsque vous relâchez l’inverseur, le robinet retourne en mode normale. Presione ye mantenga oprimido el distribuidor para activar el modo de rociado. Suéltelo para volver al modo de corriente.
- Page 12 Cleaning / Nettoyage / Limpieza Maintenance / Entretien / Mantenimiento...
- Page 13 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it. For best results: • Prevent the buildup of mineral scale and /or soap residue by cleaning your Hansgrohe product(s) when needed. • Select a cleaning agent specifically intended for the type of product. • Do not use these types of cleaners as they will cause damage to your Hansgrohe product: Any cleaning agent containing hydrochloric acid, formic acid, lye, or acetic acid. Abrasive cleaning powders, pads, or brushes. Steam cleaners. “No rinse” cleaning agents. • Always follow the instructions provided by the manufacturer of the cleaning agent. • Do not mix cleaning agents, unless directed by the manufacturer. • Do not spray cleaners directly onto the product as drops could enter openings and gaps and cause damage. When using spray cleaners, spray the cleaner onto a soft cloth or sponge. • Always rinse your Hansgrohe product thoroughly with clear water and polish dry with a soft cloth after cleaning. Important • Residue from soaps, shampoos, hair dye, and other toiletries and cosmetics can cause damage. Rinse the prod- uct with clean water after each use.
- Page 14 Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l'eau propre après chaque utilisation. • Le résidu provenant des nettoyants pour cuvette/baignoire/carrelage peut endommager les robinets et les raccords de tuyauterie. Rincez immédiatement toute surpulvérisation sur le produit Hansgrohe. • De meme, il est interdit de stocker des detergents ou des produits chimiques sous les produits, par ex. dans un meuble sous lavabo, car les vapeurs qui s'en degagent risquent d'abimer les produits. • Les dommages au produit causés par un mauvais entretien ou par l'utilisation de produits de nettoyage inadéquats ne sont pas couverts par la garantie. • Si un composant du produit est endommagé, remplacez-le, car il existe un risque de blessure.
-
Page 15: Limited Consumer Warranty
Limited Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products that are purchased by a consumer in the United States or Canada after March 1, 1996, and installed in either the United States or in Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original purchaser only. This warranty is non-transferable. WHAT IS COVERED BY THE WARRANTY The warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material or workmanship as follows: Hansgrohe will replace at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be made in timely fashion, Hansgrohe may elect to refund the purchase price in exchange for the return of the product. LENGTH OF WARRANTY Replacement or repaired parts of products will be covered for the term of this warranty, as stated in the following two sentences. If you are a consumer who purchased the product for use primarily for personal, family or household purposes, this warranty extends for as long as you own the product and the home in which the product is originally installed. If you purchased the product for use primarily for any other purpose, including, without limitation, a com- mercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe & Commercial products, and (ii) for 5 years, with respect to Axor products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: Conditions, malfunctions or damage not resulting from defects in material or workmanship. - Page 16 EXCLUSIONS AND LIMITATIONS REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES,REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER.HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT. HANSGROHE SHALL NOT BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL,SPECIAL OR CONSEQUENTIAL DAMAGES,ARISING OUT OF BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY (INCLUDING BUT NOT LIMITED TO ANY IMPLIED...
