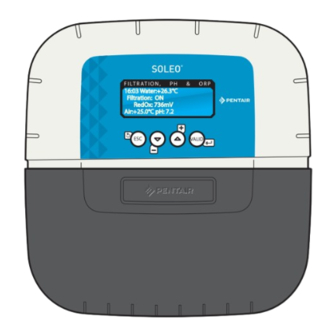

SOLEO
®
INSTALLATION AND USER GUIDE
IMPORTANT SAFETY INSTRUCTIONS,
READ AND FOLLOW ALL OF THE INSTRUCTIONS,
KEEP THESE INSTRUCTIONS
PENTAIR WATER SOLUTIONS
SB-CU-IMP-058A
(this version 03/2019)
SOLEO
®
F I LT R AT I O N ,
P H
&
O R P
16:03 Water:+26.3°C
Filtration: ON
RedOx: 736mV
Air:+25.0°C pH: 7.2
ESC
VALID
SB-PF-SOL-003C
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLEO SB-PF-SOL-003C and is the answer not in the manual?

Questions and answers

Summary of Contents for Pentair SOLEO SB-PF-SOL-003C

  • Page 1 F I LT R AT I O N , & O R P 16:03 Water:+26.3°C Filtration: ON RedOx: 736mV Air:+25.0°C pH: 7.2 VALID SB-PF-SOL-003C INSTALLATION AND USER GUIDE IMPORTANT SAFETY INSTRUCTIONS, READ AND FOLLOW ALL OF THE INSTRUCTIONS, KEEP THESE INSTRUCTIONS PENTAIR WATER SOLUTIONS SB-CU-IMP-058A (this version 03/2019)
  • Page 2 Pentair. Those names and brands may be the trademarks or the registered trademarks of...
  • Page 3: Table Of Contents

    Summary PRESENTATION > Safety instructions p 02 > Content of packaging p 04 > Description, general operation and functions of the device p 05 INSTALLATION - SPECIFIC POINTS > General installation p 06 > Mounting p 07 > Electrical installation p 08 >...
  • Page 4: Safety Instructions P

    IMPORTANT SAFETY GUIDELINES, READ AND FOLLOW ALL OF THE INSTRUCTIONS, KEEP THESE INSTRUCTIONS GENERAL POINTS - DANGER - INSTALLERS, POOL SPECIALISTS AND OWNERS MUST CAREFULLY READ THESE WARNINGS AND ALL INSTRUCTIONS BEFORE USING THIS PRODUCT. - WARNING - Most countries regulate the construction, installation and operation of public swimming pools and spas, and the construction of residential pools and spas.
  • Page 5 - DANGER - DO NOT LET CHILDREN OPERATE THIS EQUIPMENT. - WARNING – Strictly respect the safety and handling procedures from the acid manufacturers, including protective measures for hands, body and eyes during transferring and using acid. Follow the prescribed safety precautions for handling muriatic acid intended for checking the water pH. Muriatic acid may cause serious physical harm and may damage the swimming pool equipment.
  • Page 6: Content Of Packaging P

    For mounting the water temperature probe CABLE GLANDS x 2 Screw thread: 1/2 inch The 2 cable glands are compatible with 1/2’’ threading for assembly on a bypass. However Pentair advises installing the pH and RedOx probes in a probe holder.
  • Page 7: Description, General Operation And Functions Of The Device P

    Description SOLEO is the brain of the system. SOLEO calculates automatically and controls the operating time of each piece of the equipment. - Access to information in the technical housing: - SOLEO supplies the information on a backlit display. - Control of the equipment in the technical room: SOLEO supplies the dry contacts to which the classic equipment of the technical room is connected (filtration pump, disinfectant [electrolyser, dosing pump], pH pump).
  • Page 8: General Installation P

    General diagram (with Speedeo) SOLEO SPEEDEO ® ® F I LT R AT I O N , & O R P VA R I A B L E S P E E D P U M P 01/04/2019 15:23:48 28/04/2017 15:23:48 Water temp.: +29.0°C Water temp.: +29.0°C pH:7.8...
  • Page 9: Mounting P

    Back of the device Location of fastening screw head Centre axis between both blocking screws and fastening screw Centre axis of two locking screws 185 mm Caps (Do not remove) Wall fixing - This device is intended to be used inside, installed in a technical room which cannot be accessed by children.
  • Page 10: Electrical Installation P

    Basis for settings in an existing installation The 3-position switch is kept. FILTRATION SOLEO ® FORCED OPERATION F I LT R AT I O N , & O R P 01/04/2019 15:23:48 Water temp.: +29.0°C pH:7.8 ORP:607mV Cond:5264uS 3.28g/l It makes it possible to rinse the filter using the STOP VALID AUTO-CLOCK...
  • Page 11 Electrical connections regulation - The device must be installed by a qualified technician according to valid local regulation - This device is permanently connected. - The power supply to the device is cut by its interrupter, which must be close and must remain accessible at all times.
  • Page 12: Connecting The Probes P

    3 - Connect each lug according to the indicator under each terminal block 4 - Tighten using a 2.5 mm/0.5-0.6 Nm slotted screwdriver 5 - Securely re-tighten the strain relief bushing by hand Only Pentair probes are compatible and guarantee proper functioning of the device.
  • Page 13: Water And Air Temperature Sensors P

    Water and air temperature probes. SOLEO is supplied with a temperature probe which is suitable for water. It is possible to mount a second temperature probe for the air temperature used to manage the frost protection process of heated technical rooms.
  • Page 14: Filtration - Connections And Settings P

    Filtration - connection and settings If SOLEO is linked to a SPEEDEO, the SOLEO filtration outlet is only supplied with power when SPEEDEO starts the VS pump (whatever the speed). This SOLEO filtration outlet can for example be used to supply a UV light.
  • Page 15 Connection of a safety filtration feedback system To prevent any acid or chlorine being added without any water flow, it is possible to secure the operation of SOLEO by connecting a flow switch after the filtration pump. SOLEO will only start the pH or ORP control (never at the same time) if the contact of this flow switch is closed.
  • Page 16: Sanitizer Pump - Connections And Settings P

    Connection and configuration of a 220 V dosing pump for disinfectant at the disinfection outlet. The disinfection outlet is valid for any type of disinfection. It is a dry contact and does not supply any voltage. 1 - Connect the cables in accordance with the diagram. 2 –Select AUTO in the sub-menu Disinfectant/Mode so that the dosing pump supplies the disinfectant until the set value is reached.
  • Page 17: Electrolyser P

    The RedOx/ORP (oxidation reduction potential) is the disinfectant concentration level (chlorine, bromine, active oxygen, etc.) present in the pool. Keeping within 650 mV and 750 mV is recommended for this 'disinfection power' measurement. The oxidation reduction potential indicates the oxidiser quality present in the water. It is the result of the disinfectant quantity/pollution quantity ratio.
  • Page 18: Ph Pump - Connections And Settings P

    Connection and configuring a 220 V pH corrector injection pump. The pH pump outlet is a dry contact and does not supply any voltage. 1 - Connect the cables in accordance with the diagram. 2 -In the pH/Mode sub-menu, select AUTO so that the dosing pump supplies the pH corrector until the set value is reached.
  • Page 19: Radio Menu (Peering) P

    Calibrating the pH probe before the bathing season is strongly advised, and then every 3 to 6 months after this. The service life of a pH probe is 18/24 months on average, according to the flow which passes through the probe. The Pentair pH probe is available from your swimming pool supplier. Welcome menu > calibration menu : This setting makes it possible to deliberately correct any difference with another reference thermometer.
  • Page 20: Assisted Washing: Washing Support For The Filter On The 6-Way Valve. P

    Assisted backwash: Backwash support for the filter on the 6-way valve. SOLEO supports you in washing the filter by chronologically proposing the different required steps. Welcome menu > filtration menu: On the Filter washing sub-menu, enter the desired washing period (factory pre-set at -Manual Backwash 70 secs) and enter the desired rinsing duration (factory pre-set at 20 secs).
  • Page 21: Time Set Menu, Information Menu, Languages Menu And History Menu P

    Time setting menu: This adjustment makes it possible to set the time of the device. If the power supply is interrupted for more than 30 min., reinstalling the time is necessary. Welcome menu > Time setting menu : - H o u r : 1 6 h -H ou r : 16 h M i n u te : 03 m i n .
  • Page 22: Navigation Menus P

    Navigation menus (1/2) - Filtration Filtration: AUTO, SHOCK, TIMER, OFF, ON Start: 07:00 End: Auto mode: Eco, Normal, Turbo ORP priority: ON, OFF Frost prevention: +3 °C Algorithm: t=T VS, BlueVS, T/2Cla, BluCla Eco mode: -30% Turbo mode: +30% Flow switch: YES, NO - Filter washing Manual washing: 'Valid' to start washing Washing: 70 secs...
  • Page 23 Navigation menus (2/2) - Setting the time Time: 7 hours Minute: 45 min. - Calibration Temp. Water: 25.1 °C Temp. air: 27.8 °C pH: 7.0, pH: 4.0 - Information Firmware version - Languages LANGUAGE: FRANCAIS, ENGLISH - Update Firmware update: 'insert the USB stick and hold down the Up key' - Radio Radio channel: 01 (set the same as Speedeo) - History (press ESC KEY in the main menu)
  • Page 24: Assembling Ph And Orp Probes P

    MAINTENANCE - Cleaning of the pH or ORP probe. Deposition of scale or suspended elements in the pool may occur. The probes are fragile measuring parts, they need to be carefully cleaned. In particular, do not scratch the platinised surfaces of the electrodes of the conductivity probe. Physical cleaning of the probe if there is an object present in the protective cage: Depending on the probe environment, organisms may grow and disrupt the measurement.
  • Page 25: Updating Internal Firmware P

    How to update the internal firmware 1.1 - Unzip the SoleoXXX.zip file to obtain the Soleo.bin file. 1.2 - Copy the soleo.bin file to the main folder of the USB stick formatted recognised in FAT 16 or FAT 32. 2.1 - Remove the soft cover, then remove the orange cover SOLEO ®...
  • Page 26: Ph / Redox / Chlorine Ratio P

    Variations in the RedOx (ORP) according to the pH and the chlorine rate in water without a stabiliser at a temperature of 18°C.
  • Page 28 Ave. de Sevellin 18, CH-1004 - LAUSANNE, Switzerland Copyright – Limited Licence: except as speci cally permitted herein, no portion of the content of this document may be reproduced in any form or by any means without the prior written permission of Pentair International SRL.
