APG HU-L24 User Manual

APG HU-L24 User Manual

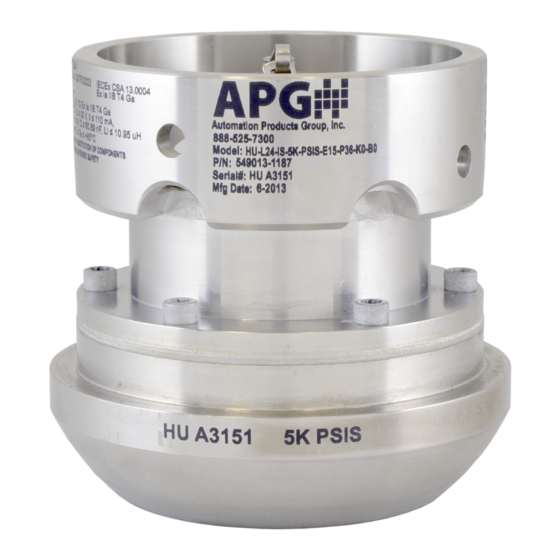

Hammer union pressure transmitter

Advertisement

Quick Links

Hammer Union Pressure Transmitter
APG
1.888.610.7664
User Manual
For The HU-L24 & HU-L27
R
www.calcert.com
15
10
20
5
25
0
30
Doc #9002480
Part #200074
Rev B4, 08/18
sales@calcert.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HU-L24 and is the answer not in the manual?

Questions and answers

Summary of Contents for APG HU-L24

  • Page 1 Hammer Union Pressure Transmitter User Manual For The HU-L24 & HU-L27 Doc #9002480 Part #200074 Rev B4, 08/18 1.888.610.7664 www.calcert.com sales@calcert.com...
  • Page 2: Table Of Contents

    Table of Contents Introduction ........................ iii Warranty and Warranty Restrictions ..............iv Chapter 1: Specifications and Options..............1 Dimensions ............................1 Specifications ............................1 Model Number Configurator ......................2 Electrical Connectors and Pinout Table ..................3 Chapter 2: Installation and Removal Procedures and Notes ......4 Tools Needed .............................
  • Page 3: Introduction

    NACE standards. Reading your label Every APG instrument comes with a label that includes the instrument’s model number, part number, serial number, and a wiring pinout table. Please ensure that the part number and pinout table on your label match your order.
  • Page 4: Chapter 1: Specifications And Options

    Chapter 1: Specifications and Options • Dimensions Hammer Union with 1502 Fitting Hammer Union with 2002, 2202 Fitting • Specifications Performance Pressure Ranges 0 to 20K PSIS (Per Part Number) Analog Output 4-20mA, 0-5VDC Over Pressure 1.5X Full Scale, 22.5 kpsi, or limit of WESCO fitting, whichever is smallest Burst Pressure 3.0X Full Scale, 22.5 kpsi, or limit of WESCO fitting,...
  • Page 5: Model Number Configurator

    • Model Number Configurator Part Number: HU - _____ - IS - _____ - PSIS - _____ - _____ - _____ A. Output D. Fitting □ □ 4-20 mA P34 Large HU 1502 Weco fitting □ □ 0-5 VDC P35 Small HU 2002 / 2202 Weco fitting □ P36 Large Welded HU 1502 Weco fitting □...
  • Page 6: Electrical Connectors And Pinout Table

    • Electrical Connectors and Pinout Table Face view of male connector on HU + Signal Red Wire – Signal Black Wire Shunt Cal Yellow Wire Flying Leads & Terminal Strip Wiring 3-Pin Threaded 3-Pin 5-Pin 4-Pin MS3102 Bayonet Mini Style Mini Style Connector Connector...
  • Page 7: Chapter 2: Installation And Removal Procedures And Notes

    Chapter 2: Installation and Removal Procedures and Notes • Tools Needed You will need the following tools to install your 1502 or 2002 / 2202 Hammer Union Pressure Transmitter: • A hammer • 1502 or 2002 / 2202 wing nut DANGER: Mismatched unions and nuts can result in dangerous or hazardous equip- ...
  • Page 8: Shunt Calibration Procedures

    Two-Pin Shunt Calibration Procedure APG’s Hammer Union Pressure Transmitters with two-pin shunt cal provide a full scale output (20.0 mA or 5 VDC) when + Shunt is shunted to - Shunt. This is usually accomplised via an external switch. See the pinout chart on your Hammer Union Pressure Transmitter’s label.
  • Page 9: Chapter 3: Maintenance

    DANGER: Removing your Hammer Union Pressure Transmitter while there is still  pressure in the line could result in injury or death. Chapter 3: Maintenance • General Care Your Hammer Union Pressure Transmitter is designed to be maintenance free. As such, there are no customer servicable parts on or in the device.
  • Page 10: Chapter 4: Hazardous Location Installation And Certification

    Chapter 4: Hazardous Location Installation and Certification • Intrinsically Safe Wiring Diagram 1.888.610.7664 www.calcert.com sales@calcert.com...
  • Page 11: Csa Certificate Of Compliance

    • CSA Certificate of Compliance Certificate of Compliance Certificate: 1916494 Master Contract: 237484 (237484) Project: 70177689 Date Issued: 2018-06-26 Issued to: Automation Products Group Inc 1025 West 1700 North Logan, Utah 84321 Attention: Joseph James The products listed below are eligible to bear the CSA Mark shown with adjacent indicators 'C' and 'US' for Canada and US or with adjacent indicator 'US' for US only or without either indicator for Canada only.
  • Page 12 Certificate: 1916494 Master Contract: 237484 Project: 70177689 Date Issued: 2018-06-26 Conditions of Acceptability  To maintain IP67/65 rating, the equipment shall be installed with a certified IP67/65 mating connector.  This device must be connected to a NRTL approved safety barrier Note: Suffixes are added to indicate options not affecting safety.
  • Page 13 Certificate: 1916494 Master Contract: 237484 Project: 70177689 Date Issued: 2018-06-26 MARKINGS The manufacturer is required to apply the following markings:  Products shall be marked with the markings specified by the particular product standard.  Products certified for Canada shall have all Caution and Warning markings in both English and French. Additional bilingual markings not covered by the product standard(s) may be required by the Authorities Having Jurisdiction.
  • Page 14 Certificate: 1916494 Master Contract: 237484 Project: 70177689 Date Issued: 2018-06-26 Supplement to Certificate of Compliance Certificate: 1916494 Master Contract: 237484 (237484) The products listed, including the latest revision described below, are eligible to be marked in accordance with the referenced Certificate. Product Certification History Project Date...
  • Page 15: Ec Declaration Of Conformity

    Automation Products Group, Inc. 1.888.610.7664 www.calcert.com sales@calcert.com...
