3.2 Complete Initial Assembly of the RMU-2000 ACC

Before being placed into service, the RMU-2000 ACC unit should be completely assembled and
operationally checked to ensure that all components are present and functional, per the procedure
detailed in Section 3.12, "Assembling and Testing the RMU-2000 ACC." Sections 3.3 through 3.11
describe the components of the RMU-2000 ACC system and their basic functionality.

3.3 The Backboard

The Backboard is the base for the RMU-2000 ACC system. It is placed under the patient and
has pins that serve as attachment points to which the Frame latches. There are no moving
parts on the Backboard.

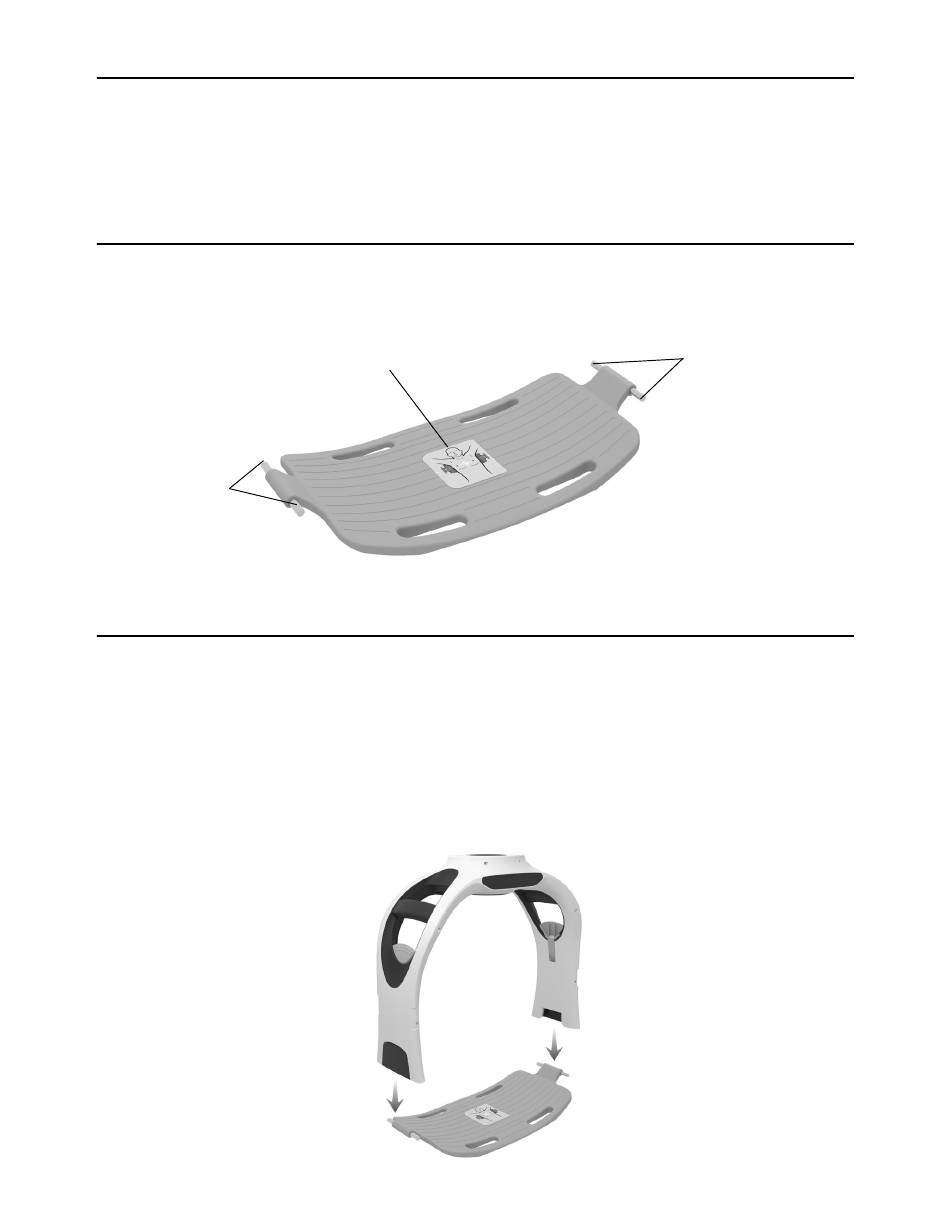

Backboard
Pins

3.4 The Frame

The Frame holds the Compression Module. It attaches to the Backboard and is used to maintain
the Compression Module's position over the patient.
To attach the Frame to the Backboard:
• Place the Backboard on a flat surface, such that the patient position diagram is visible.
• Attach the Frame to the Backboard by aligning the Frame latches over the Backboard Pins
and pushing down until the latches click into place. The latches may be clicked into place
one at a time or simultaneously.
18
RAC-A2510EN-DC rev B
Patient Position Diagram
Backboard
Pins
