  • Page 1 Defibtech DDU-2300 Semi-Automatic External Defibrillator User Manual DAC-2513EN-AB...
  • Page 2 PRESS “ON” BUTTON aPPly PadS FOllOW aEd iNSTRUcTiONS iF iNSTRUcTEd, PRESS“ShOck” BUTTON...

  • Page 3: Limited Warranty

    Notices Defibtech shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. Information in this document is subject to change without notice. Names and data used in the examples are fictitious unless otherwise noted.

  • Page 4: Table Of Contents

    Setting Up The DDU-2300 AED ..............3-1 Overview ..........................3-1 Connecting The Pads ......................3-1 Installing The Defibtech Data Card (DDC card) (Optional) ..........3-2 Installing And Removing the Battery Pack ................3-3 Checking The DDU-2300 AED Status ................. 3-3 Completing The Installation ....................
  • Page 5 Data Cards .......................... 7-1 USB Cable ........................... 7-1 Event Viewing ..................... 8-1 DefibView II ........................8-1 Defibtech Data Cards (DDC cards) ..................8-1 Downloading The Internal Data Log ................... 8-1 Technical Specifications ................9-1 Defibtech DDU-2300 AED ....................9-1 Battery Packs ........................9-5 Self-Adhesive Defibrillation Pads ..................

  • Page 6: Introduction To The Ddu-2300 Aed

    (impedance varies with the electrical resistance of the patient’s body). The DDU-2300 AED user interface is clear and concise. It has two primary push-button controls and a display screen. Easily understandable voice messages and text and video prompts guide the operator through the use of the unit.

  • Page 7: The Defibtech Ddu-2300 Aed

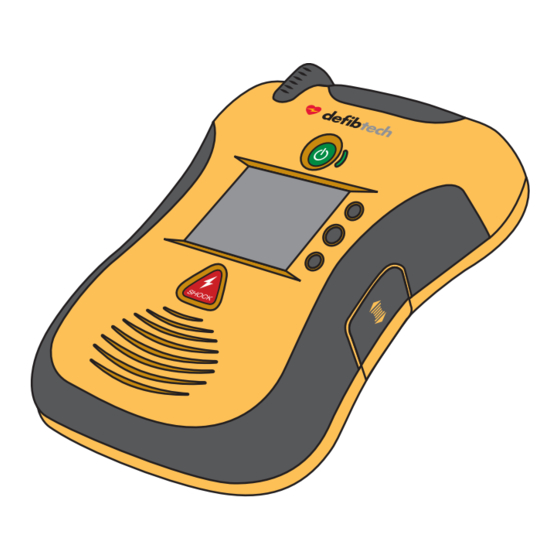

    F. Active Status Indicator (ASI) D. ON/OFF Button A. Speaker. The speaker projects the voice J. USB and Defibtech Data Card (DDC card) Access Door. Behind the access door is the prompts when the DDU-2300 AED is on. C. Display Screen The speaker also emits a “beep”...

  • Page 8: Indications

    • Has a detectable pulse Operator Training Requirements In order to safely and effectively operate the DDU-2300 AED, a person shall have met the following requirements: • DDU-2300 AED and/or defibrillation training as required by local, state, provincial, or national regulations.

  • Page 9: Dangers, Warnings, And Cautions

    • Do not immerse battery pack in water or other liquids. Immersion in fluids may result in fire or explosion. • Do not let fluids get into the DDU-2300 AED. Avoid spilling fluids on the AED or its accessories. Spilling fluids into the DDU-2300 AED may damage it or cause a fire or shock hazard.

  • Page 10: Cautions

    • If possible, disconnect the DDU-2300 AED from the patient prior to use of other defibrillators. • Do not connect the DDU-2300 to a PC or other device (using the USB port) while the unit’s electrodes are still connected to the patient.

  • Page 11: Setting Up The Ddu-2300 Aed

    Connecting The Pads The DDU-2300 AED defibrillation pads are supplied sealed in a package with the connector and part of the cable exposed. This allows the pads to be stored in a pre-connected state for rapid deployment during an emergency.

  • Page 12: Installing The Defibtech Data Card (Ddc Card) (Optional)

    Installing The Defibtech Data Card (DDC card) (Optional) The Defibtech Data Card (“DDC card”) is used to store event and audio information collected by the AED. All DDU- 2300 AEDs will operate without DDC cards and will still store critical event information internally. DDC cards may be reviewed with a separate Defibtech PC-based software package.

  • Page 13: Installing And Removing The Battery Pack

    Active Status Indicator (ASI) Once a fully functional battery pack is installed in the DDU-2300 AED, an LED indicator located to the right of the ON/OFF button actively indicates unit status. If the unit is ready for use, the Active Status Indicator (“ASI”) will flash green.

  • Page 14: Completing The Installation

    Completing The Installation Once you have completed the previous steps to set up your DDU-2300 AED, follow this procedure: 1. Turn the unit on by pressing the power ON/OFF button. 2. Listen for the “Call for Help” voice prompt.

  • Page 15: Using The Ddu-2300 Aed In Rescue Mode

    Using The DDU-2300 AED In Rescue Mode This chapter describes how to use the DDU-2300 AED in rescue mode. The DDU-2300 AED was designed for simple operation, allowing the operator to focus on the patient. There are two primary control buttons and a display screen.

  • Page 16: Preparation

    • Flashing Green: DDU-2300 AED is OFF and ready for use. • Solid Green: DDU-2300 AED is ON and ready for use. • Flashing or Solid Red: DDU-2300 AED needs immediate service. Refer to the “Troubleshooting” section in Chapter 5 of this manual or call Defibtech for service Active •...
  • Page 17 Turning On The DDU-2300 AED Press the green ON/OFF button to turn the DDU-2300 AED on. The unit will emit a “beep” and the display screen will turn on. The ASI indicator next to the ON/OFF button will illuminate green anytime the AED is on. (To turn the unit off, press AND HOLD the ON/OFF button for approximately two seconds;...
  • Page 18 Applying Pads To The Patient Apply pads correctly to patient. Follow AED voice and text prompts. Correct pad placement is essential for effective analysis of the patient’s cardiac rhythm and subsequent shock delivery (if required). Remove the pads from the pads package by tearing the package along the dotted line near the top of the package. Follow the directions and diagram showing proper defibrillation pad placement located on the defibrillation pads package and on the pads.

  • Page 19: Heart Rhythm Analysis

    Follow DDU-2300 AED Instructions At this point, the DDU-2300 AED will check to make sure that the pads are well connected to the patient and that an adequate ECG signal is being received. Do not touch the patient. Eliminate any patient movement, and cease CPR at this time.

  • Page 20: Post Use Procedures

    Call For Help Purpose: As soon as the DDU-2300 is turned on, the user will be prompted to “call for help.” This indicates that the first step in a rescue should always be to contact professional emergency services. If another person is available, the user should direct that person to call for help and then continue the rescue without delay.
  • Page 21 Apply Pads to Patient Purpose: The DDU-2300 AED has determined that the pads are not placed on the patient or not properly applied. Place pads on the patient following instructions on the pads package. If the prompts continue, try replacing the pads with a new set.
  • Page 22 “No shock advised” No Shock Advised Purpose: The DDU-2300 AED has determined that a shock is not required. The unit will NOT charge and the SHOCK button will NOT be enabled. The user will be prompted to begin CPR. “Shock advised”...
  • Page 23 Purpose: After shock is advised, the DDU-2300 AED will prompt user to press the flashing shock button. If after 30 seconds the shock button is not pressed, the DDU-2300 AED will give this prompt and immediately go to CPR mode.

  • Page 24: Operational Environment

    Operational Environment The Defibtech AED is designed to operate in a wide range of environmental conditions. To ensure the reliability and safety of the AED in a given environment, refer to the “Environmental” section in Chapter 9 of this manual for a detailed list of approved environmental conditions.

  • Page 25: Maintenance And Troubleshooting

    (Refer to the “Contacts” section in Chapter 12 of this manual.) If the ASI is flashing red, turn the DDU-2300 AED on. If the unit does not turn on or does not speak, the AED is non- operational and requires servicing. If the unit does turn on, then turn the unit off and the voice prompts will indicate the nature of the problem.
  • Page 26 “Service code ‘xxxx’ ” Service Code “xxxx” Purpose: The DDU-2300 AED will report this message when it powers off, indicating a service code that was previously detected. “Service required”...
  • Page 27 Replacing Pads The Defibtech defibrillation pads are intended for one time use only. The pads must be replaced after each use or if the package has been damaged. The DDU-2300 AED defibrillation pads are supplied in a sealed pouch with the connector and part of the cable exposed.
  • Page 28 Checking The DDC Card, If One Is Installed Each time the DDU-2300 AED is used, an event file is created on the DDC card (if installed). If the unit was used to treat a patient, the DDC card in the unit should be removed and provided to the patient’s care provider. A new DDC card should be installed before the next use.

  • Page 29: Self-Tests

    Manual Self-Tests Manually initiated self-tests may be run at any time by the user to test the DDU-2300 AED’s systems, including the charging and shocking functions (the shock is internally dissipated; i.e., no voltage will be present at the pads).

  • Page 30: Operator's Checklist

    The following checklist may be used as the basis for an Operator’s Checklist. The table should be copied and filled out as recommend by the schedule in the “Routine Maintenance” section of this chapter. As each item is completed it should be checked off. Defibtech DDU-2300 Operator’s Checklist Defibtech Serial Number: DDU-2300 ___________________________________________________...

  • Page 31: Troubleshooting

    Troubleshooting The following table lists the symptoms, the possible causes, and the possible corrective actions for common problems. Refer to the other sections of the user manual for detailed explanations on how to implement the corrective actions. If the unit continues to be non-functional, refer the unit for servicing. (Refer to Chapter 12 of this manual for contact information.)

  • Page 32: Repair

    “ Pads missing” prompt Pads not connected to unit correctly and fully inserted into unit Repair The DDU-2300 AED contains no user serviceable parts. If the unit needs servicing, call Defibtech. (Refer to Chapter 12 of this manual for contact information.) DAC-2513EN-AB...

  • Page 33: Maintenance Mode

    Maintenance Mode Overview Maintenance Mode for the Defibtech DDU-2300 permits the user to perform maintenance-related actions such as viewing unit information, initiating unit self-tests, changing unit parameters, downloading rescue data, and upgrading software. Maintenance Mode is navigated through a series of screens, menus, and menu options. In Maintenance Mode, the softkey buttons located directly to the right of the display screen are used to scroll through and select menu options.

  • Page 34: Entering Maintenance Mode

    Entering Maintenance Mode Before You Begin: Make certain the DDU-2300 is turned off and a battery pack is installed. STEP 1 – Press and release the CENTER softkey button. Result – The unit will turn on and display the AED Status Screen for short period of time.

  • Page 35: Aed Maintenance Screen

    The Upgrade AED menu selection is a method of performing a unit upgrade and will activate the system upgrade procedure from a Defibtech Data Card (DDC card) containing an upgrade application. Note: Upgrades can also be performed directly from the AED Status Screen if an upgrade card is present when the AED Status Screen mode is launched.
  • Page 36 Transfer Data To Card Transfer data to card will initiate a data transfer from the DDU-2300 AED to a Defibtech Data Card (DDC card) inserted in the device. Internal event data and device history is written to the DDC card.

  • Page 37: Aed Options Screen

    ➜ Run Application From Card Run application from card will initiate a card application on the Defibtech Data Card (DDC card). The most typical application is a software upgrade. Before you begin: Be sure the unit is in Maintenance Mode. Be sure a DDC Card, with a card application, is installed in the device.
  • Page 38 ➜ System Time The System time option allows the user to set the time of the internal AED clock. Before you begin: Be sure the unit is in Maintenance Mode. To enter: Navigate to System time: AED Main Menu AED options System time ➜...

  • Page 39: Rescue Options Screen

    Audio Recording The Audio recording option allows the user to enable or disable recording of event audio data to a Defibtech Data Card (DDC card). Before you begin: Be sure the unit is in Maintenance Mode. To enter: Navigate to Audio recording:...
  • Page 40 This code is custom generated by Defibtech. If the code is not entered correctly the protocol will not be changed. Based on the protocol code entered, the currently selected protocol will be changed to that described by the special protocol code.

  • Page 41: Help Topics Screen

    Help Topics Screen The Help Topics option on the AED Main Menu provides a list of available help topics. Before you begin: Be sure the unit is in Maintenance Mode. To enter: Navigate to Help topics: AED Main Menu Help topics ➜...

  • Page 42: Ddu-2300 Aed Accessories

    Battery Packs The DDU-2300 AED uses a lithium battery pack to provide the AED with a long shelf and standby life. The battery pack is inserted into the battery pack opening on the back of the AED and latches into place. Battery packs are not rechargeable.

  • Page 43: Event Viewing

    WARNING Defibtech Data Cards (DDC cards) If a DDC card is installed in the unit, every time the DDU-2300 AED is turned on, the following information is recorded on a new file on the card: • The time the AED was turned on.

  • Page 44: Technical Specifications

    Technical Specifications Defibtech DDU-2300 AED General category Specification 7.3 x 9.5 x 2.3 inches Size 18.5 x 24 x 5.8 cm Weight Less than 3 lbs (1.4 kg) (with battery) Power Battery Pack (not rechargeable) Meets applicable requirements of • IEC 60601-1 •...
  • Page 45 Defibtech DDU-2300 AED (continued) Waveform Specifications The DDU-2300 AED delivers a 150J Biphasic Truncated Exponential waveform to patients with impedances ranging from 25 to 180 ohms. V max V min The waveform is adjusted to compensate for measured patient impedance.
  • Page 46 ETSI EN 301 489-3 V1.4.1 (2002-08) Patient Analysis System The DDU-2300 Patient Analysis System ensures that the pad/patient impedance is within the proper range and analyzes the patient’s ECG rhythm to determine whether a shock is required. On detection of a non-shockable rhythm, the user is prompted to perform CPR.
  • Page 47 Defibtech DDU-2300 AED (continued) Shockable Rhythm Criteria When placed on a patient meeting the indications for use criteria, the DDU-2300 AED is designed to recommend a defibrillation shock when it detects proper pad impedance and one of the following: Ventricular Fibrillation: Peak-to-peak amplitude at least 200 µVolts.

  • Page 48: Battery Packs

    6 discharges IEC 60601-2-4 requirements Standby-life (installed in unit) 4 years* *typical, new battery, at 25°C Self-Adhesive Defibrillation Pads Use only Defibtech Pads with your DDU-2300 AED. Defibtech self-adhesive defibrillation pads have the following characteristics: Model number ddP-2001 ddP-2002 Type Adult Child/Infant <...

  • Page 49: Event Documentation

    Recycling Information At the end of useful life, recycle the defibrillator and its accessories. Recycling Assistance For recycling assistance contact your local Defibtech distributor. Recycle in accordance with local and national regulations. Preparation For Recycling Items should be clean and contaminant-free prior to being recycled.

  • Page 50: 10 Electromagnetic Conformity

    10 Electromagnetic Conformity Guidance And Manufacturer’s Declaration The DDU-2300 is intended for use in the electromagnetic environment specified below. The customer or the user of the DDU-2300 should assure that it is used in such an environment. ElEcTROMaGNETic EMiSSiONS Emissions test compliance Electromagnetic environment –...
  • Page 51 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the DDU-2300 is used exceeds the applicable RF compliance level above, the DDU-2300 should be observed to verify normal operation.
  • Page 52 Regulatory Compliance Changes or modifications of this product, not expressly approved by Defibtech, may void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules and Industry Canada Radio Standard RSS-210. Operation is...

  • Page 53: Glossary Of Symbols

    Glossary Of Symbols Symbol Meaning High voltage present. SHOCK Button – Delivers defibrillation shock to the patient when the device is ready to shock. ON/OFF Button • Turns the device ON when it is OFF. • Turns the device OFF when it is ON. Caution, consult accompanying documents.
  • Page 54 Glossary Of Symbols (continued) Symbol Meaning Catalogue number. Keep dry. Handle with care. Transportation and storage requirements. See environmental requirements. Authorized European Representative. Does not contain latex. LATEX Lot number. I P 5 5 Dust protected; Protected against water jets. Classified by TUV Rheinland of NA with respect to electric shock, fire, and mechanical hazard only in accordance with UL 60601-1, CAN/CSA C22.2 No.601.1-M90, IEC 60601-1, and IEC 60601-2-4.
