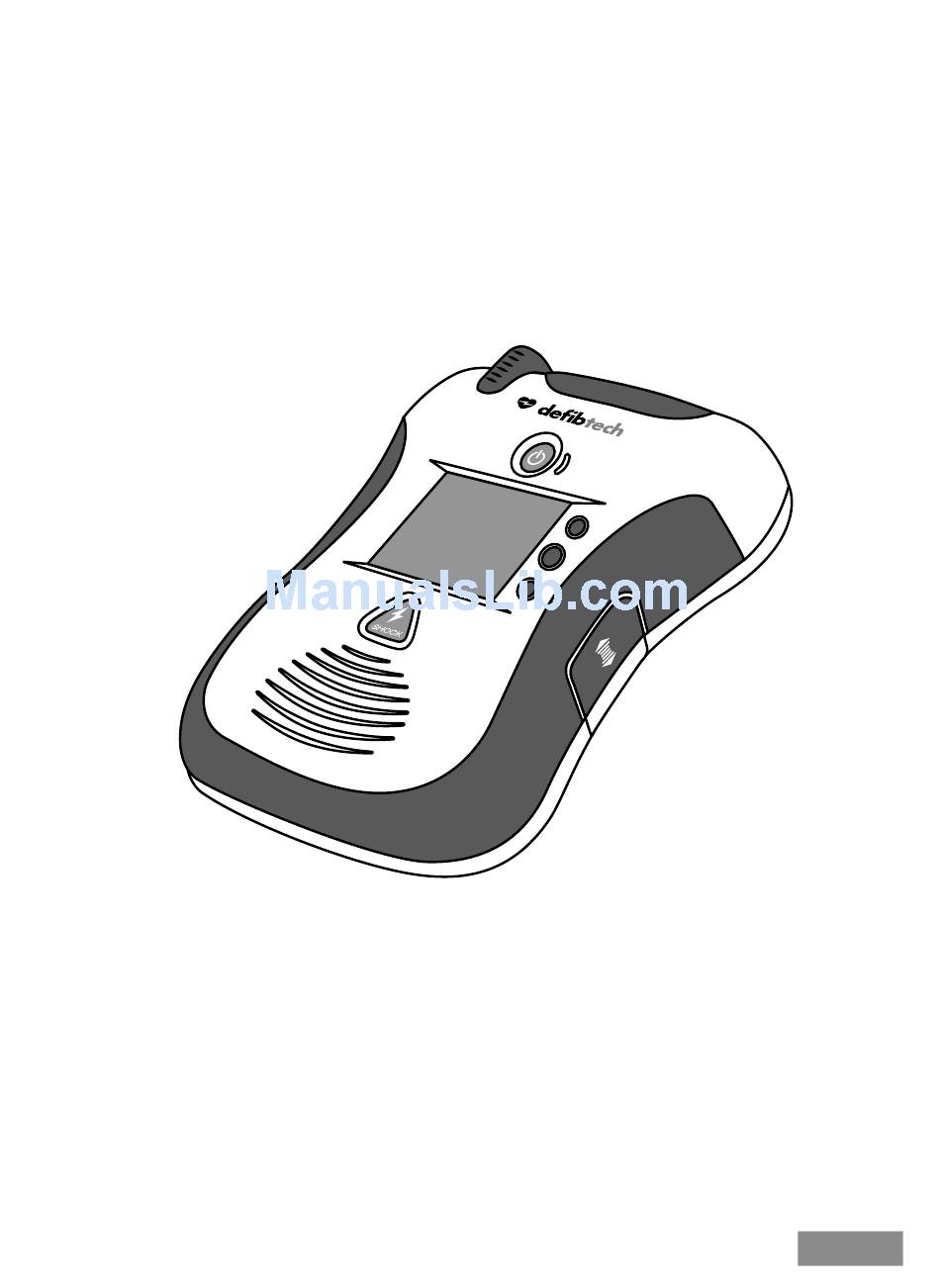

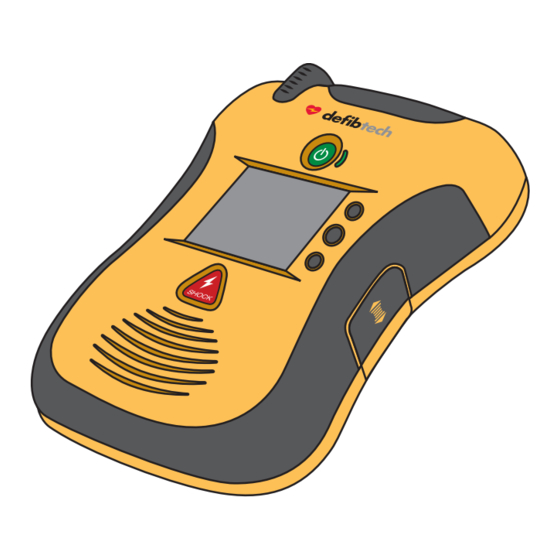

  • Page 1 Defibtech Automated External Defibrillator • Lifeline/ReviveR VIEW DDU-2300 • Lifeline/ReviveR ECG DDU-2450 Operating Guide For concise guidance on set-up, use, maintenance and technical specifications ELECTRONIC DISTRIBUTION DAC-A2530EN-BK...

  • Page 2: Table Of Contents

    When to Use (Indications, Contraindications, Summary of Primary Clinical Studies, Potential Adverse Effects of the Device on Health, The Lifeline/ReviveR VIEW is referred to as the DDU-2300 from this point forward in this manual. Operator Training Requirements) ............5 The Lifeline/ReviveR ECG is referred to as the DDU-2450 from this point forward in this manual.

  • Page 3: Quick Use Instructions

    QUICK USE INSTRUCTIONS WHEN TO USE INDICATIONS Lifeline/ReviveR VIEW DDU-2300 and Lifeline/ReviveR ECG DDU-2450 Automated External Defi brillators (AEDs) are indicated for use on victims of sudden cardiac PRESS “ON” arrest (SCA) who are: BUTTON • Unconscious and unresponsive • Not breathing or not breathing normally Lifeline/ReviveR VIEW DDU-2300 and Lifeline/ReviveR ECG DDU-2450 AEDs may be used with Defi btech adult defi brillation pads (model number DDP-2001).

  • Page 4: Diagram Of Components

    DIAGRAM OF COMPONENTS Pads Connector Socket – Active Status Indicator (ASI) – Socket for pads connector Indicates the current status of the AED Battery Pack Battery Pack Opening ON/OFF Button – Eject Release Turns AED on and off Latch Softkey Buttons (Top, Center, Bottom) –...

  • Page 5: Setting Up The Aed

    SETTING UP THE AED With the AED off, The DDU-2000 Series AED is designed to be stored in a “ready” press and release the state so that few steps are required to begin using the AED. AED status CENTER softkey button. Battery status Ensure that the AED CHECK THE...

  • Page 6: Using The Aed

    USING THE AED If the patient is unconscious or unresponsive, and is Note : When this Information Softkey Icon is present on the screen, not breathing or not breathing normally, ensure emergency the user may press the corresponding softkey button for additional information with video instruction.
  • Page 7 USING THE AED (continued) Note : When this Information Softkey Icon is present on the screen, the user may press the corresponding softkey button for additional information with video instruction. To exit, press the softkey button again. STAND CLEAR PERFORM CPR Follow instructions to perform CPR, if needed.

  • Page 8: Using The Aed - Ecg Display (Ddu-2450 Only)

    USING THE AED - ECG DISPLAY THE DEFIBRILLATION PADS (DDU-2450 ONLY) HOW TO CONNECT THE PADS SELECTING ECG DISPLAY Insert the connector end of the defi brillation pad cable into the pads Mode of Operation The DDU-2450 allows the user to display connector socket on the top-left corner of the DDU-2000 Series AED as the patient ECG when the unit is being shown.

  • Page 9: The Battery Pack

    THE DEFIBTECH DATA CARD (OPTIONAL) HOW TO INSERT AND HOW TO INSERT AND REMOVE THE DEFIBTECH DATA CARD REMOVE THE BATTERY PACK The optional Defi btech Data Card (DDC card) is used to store event and audio information Before inserting the battery pack into the DDU- collected by the AED.

  • Page 10: Checking Aed Status

    CHECKING AED STATUS MAINTENANCE ROUTINE MAINTENANCE ACTIVE STATUS INDICATOR (ASI) The DDU-2000 Series AED is designed to be very low maintenance. Simple maintenance tasks The Active Status Indicator (ASI) should be visually checked on a regular basis to ensure that are recommended to be performed regularly to ensure its readiness (see sample maintenance the AED is ready for use.
  • Page 11 MAINTENANCE (continued) MAINTENANCE MODE (AED Maintenance) CLEANING AED Maintenence The AED Maintenance screen allows the user to select After each use, clean the DDU-2000 Series AED of any dirt or contaminants on the case and Rescue now such options as AED tests, software upgrades, data connector socket.

  • Page 12: Troubleshooting

    TROUBLESHOOTING The following table lists the symptoms, the possible causes, and the possible corrective actions Symptom Possible Cause Corrective Action for common problems. Refer to the User Manual (available at www.defi btech.com) for detailed Make sure pads connector explanations on how to implement the corrective actions. If the unit continues to be non- “...

  • Page 13: Warnings And Cautions

    WARNINGS AND CAUTIONS WARNINGS (continued) WARNINGS (continued) • Some very low amplitude or low frequency VF rhythms may not • While in demonstration mode, the AED cannot perform a rescue. WARNINGS (continued) be interpreted as shockable. Some very low amplitude or low If at any time during the demonstration there is a need to perform •...

  • Page 14: Technical Specifications

    TECHNICAL SPECIFICATIONS (see User Manual for complete specifi cations) DEFIBRILLATION / MONITORING PADS OPERATING MODES MODEL SURFACE AREA TYPE AED MODE (ALL MODELS) ECG DISPLAY (DDU-2450 ONLY) Adult: DDP-2001 Adult: 12 inches (77cm Pre-connected, single-use, High resolution video display Displays ECG data and event information Child/Infant: DDP-2002 (nominal, each pad) non-polarized, disposable,...

  • Page 15: Glossary Of Symbols

    GLOSSARY OF SYMBOLS Symbol Meaning Symbol Meaning  Classified by TUV Rheinland of NA with respect to electric shock, fire, and mechanical hazard only in accordance with UL 60601-1, CAN/CSA C22.2 No.601.1-M90, IEC 60601-1, High voltage present. and IEC 60601-2-4. Conforms to UL Standard UL 60601-1. Certified to CAN/CSA Standard C22.2 No.

  • Page 16: Warranty Information

    Keep dry. whether purchased concurrently with the defibrillator as part of replacement, Defibtech shall have the right at its sole of a configuration or separately, shall be substantially free discretion to replace the item with a new, or refurbished, same from defects in material and workmanship.

  • Page 17: Contacts

    CONTACTS Manufacturer Defibtech, L.L.C. 741 Boston Post Road, Suite 201 Guilford, CT 06437 USA Y Y Y Y Y Y Y Y Tel.: 1-(866) 333-4241 (Toll-free within North America) 1-(203) 453-4507 Fax: 1-(203) 453-6657 Email: sales@defibtech.com (Sales) reporting@defibtech.com (Medical Device Reporting) service@defibtech.com...
