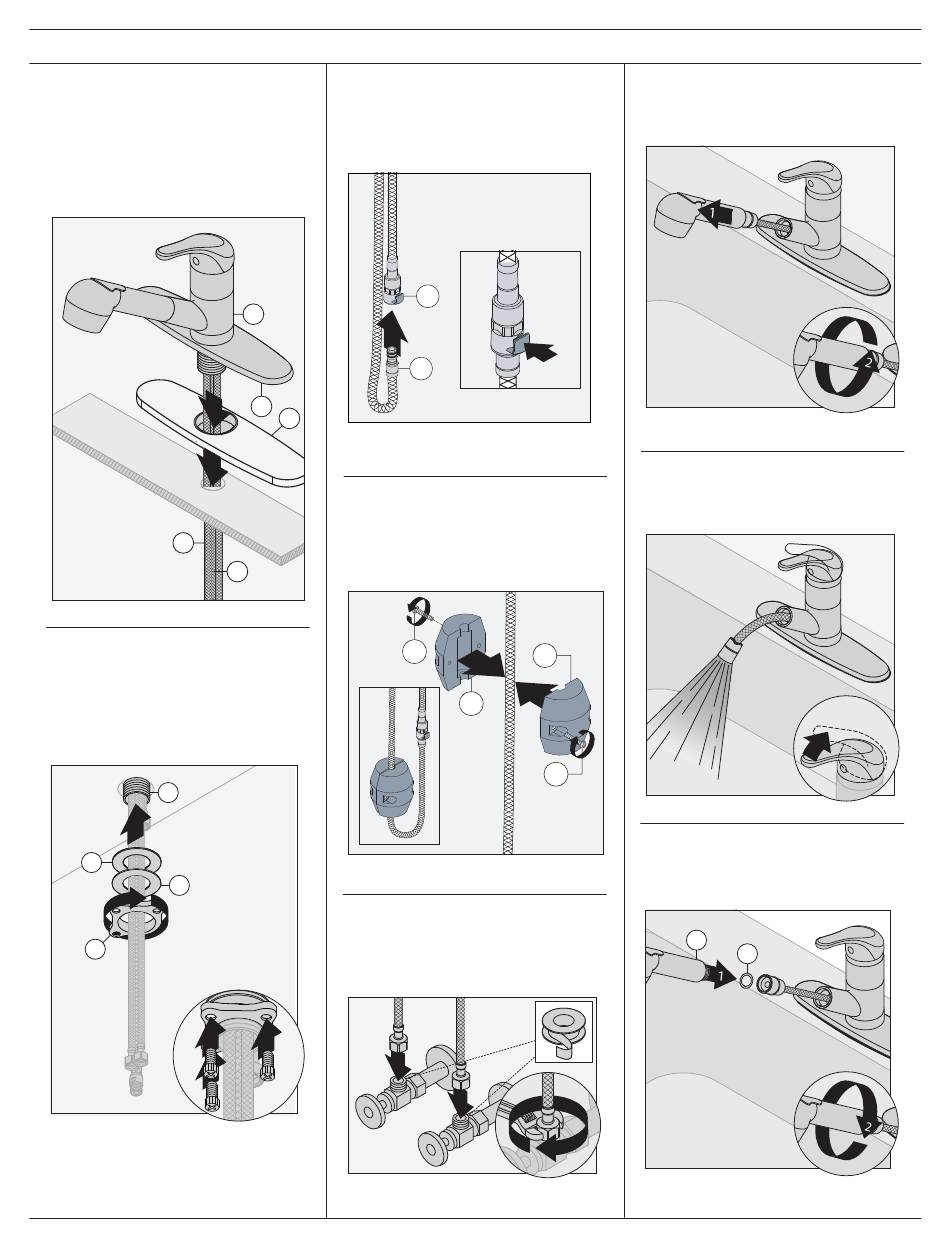

Installation

1) Insert supply line hoses (P), wand
hose (O) and shank of faucet body
(J) through deck plate (R), mount-
ing gasket (K) and deck surface.
P
2) From below, install rubber washer
(L), metal washer (M), and nut (N)
to shank of faucet body (J). Secure
with three screws.
J
1
L
M
2
N
3
3
3) Attach outlet end of pull-down
hose (O) to hose adapter (Q).
Press tab on hose adapter (Q) to
disconnect as shown above.
J
R
K
4) Attach counterweight (X) to
outlet end of pull-down hose.
Countereight should be places
above the house loop. Secure
with 2x screws (W).
O
W
5) Attach supply lines to shut-off
valves and hand tighten. Using a
wrench, finish with one-half turn.
DO NOT overtighten.
3
2
1
PRESS TAB
TO DISCONNECT
Q
O
X
X
W
1
2
3
6) Remove wand from hose.
7) Turn on faucet to flush out debris.
8) Install large sealing washer (T) to
pull out hose. Replace wand (H)
onto hose.
H
T
