DESCRIPTION

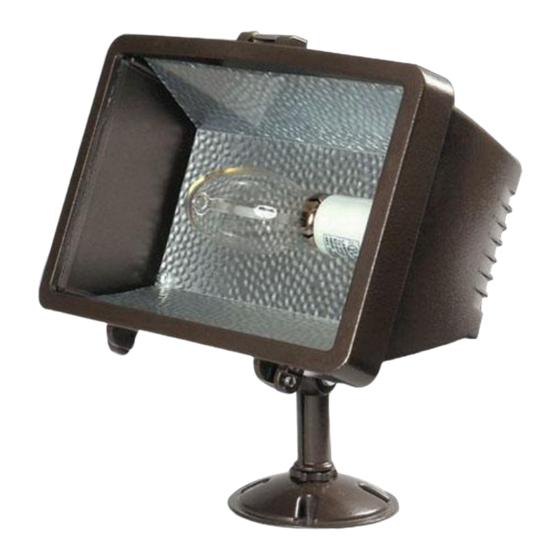

The Lumark Falcon is a stylish and rugged luminaire that combines value
and performance with a soft, architecturally appealing form. This soft
rounded corner, die-cast construction is excellent for applications that have
a high visibility and where a uniform beam distribution is desired.
The Falcon floodlight can be wall or pole mounted, making it ideal for all
commercial, industrial and residential low wattage floodlighting
applications.
SPECIFICATION FEATURES
A ... Door + Latch
Tempered glass lens is impact and
thermal shock resistant. Easily
released die-cast aluminum
doorframe with stainless steel
toolless latch allows easy access
for re-lamping. Enclosure latch can
be secured with a single point
stainless steel screw, provided, or
with optional vandal resistant
head.
DIMENSIONS
10 11/16"
[272mm]
10 1/2" [267mm]
Specifications and Dimensions subject to change without notice.
COOPER LIGHTING - LUMARK
B ... Housing
Die-cast aluminum housing is
finished in weather and abrasion
resistant dark bronze polyester
powder paint. Optional colors are
available.
C ... Gasket
Full-circumference silicone gasket
seals out external contaminants.
D ... Socket
Pulse rated, 4KV, medium-base
porcelain lamp socket standard for
HID. Electronic compact 4-pin
fluorescent sockets standard for CF
lamp options.
LAMP TYPE
WATTAGE
Metal Halide
50, 70 100, 175W
High Pressure Sodium
35, 50, 70, 100, 150W
Compact Fluorescent
26, 32, 42, (2) 26, 57, 60, (2) 32, 70W
TRUNNION-MOUNT DRILLING DIMENSIONS
7 1/2" [189mm]
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
E ... Reflector
Formed aluminum hammered
reflector optimized beam efficiency
and control.
F ... Mounting
Adjustable ANSI 1G rated stem
mounting arm fits 1/2" NPS outlet
box cover. (RBC round outlet box
cover not included, order
separately). Optional heavy-gauge
steel adjustable trunnion mounting
provides additional durability
when required.
A
B
C
D
E
F
5" [127mm]
3" [77mm]
[51mm]
.45" Dia.
[12mm]
Type
Date
FALCON
High Pressure Sodium
Metal Halide
Compact Fluorescent
LOW WATTAGE
FLOODLIGHT
T E C H N I C A L D AT A
UL1598 Listed;
IP66 Rating
25°C Maximum Ambient Temperature
External Supply Wiring 60°C Minimum
E N E R G Y D AT A
Reactor Ballast Input Watts
35W HPS NPF/HPF (46 Watts)
50W HPS NPF/HPF (58 Watts)
70W HPS NPF/HPF (82 Watts)
100W HPS NPF/HPF (115 Watts)
150W HPS NPF/HPF (170 Watts)
High Reactance Ballast Input Watts
50W HPS HPF (66 Watts)
50W MH HPF (72 Watts)
70W HPS HPF (91 Watts)
70W MH HPF (90 Watts)
100W HPS HPF (130 Watts)
100W MH HPF (129 Watts)
150W HPS HPF (188 Watts)
CWA Ballast Input Watts
175W MH HPF (210 Watts)
Electronic Ballast Input Watts
26W CF HPF (29 Watts)
32W CF HPF (36 Watts)
42W CF HPF (46 Watts)
52W CF HPF (54 Watts)
57W CF HPF (59 Watts)
2"
60W CF HPF (70 Watts)
64W CF HPF (68 Watts)
70W CF HPF (75 Watts)
S H I P P I N G D AT A
Approximate Net Weight:
18 lbs. (8 kgs.)
ADH060025
10/02/2008 10:10:30 AM
®
SF
35 - 175W
26 - 70W
