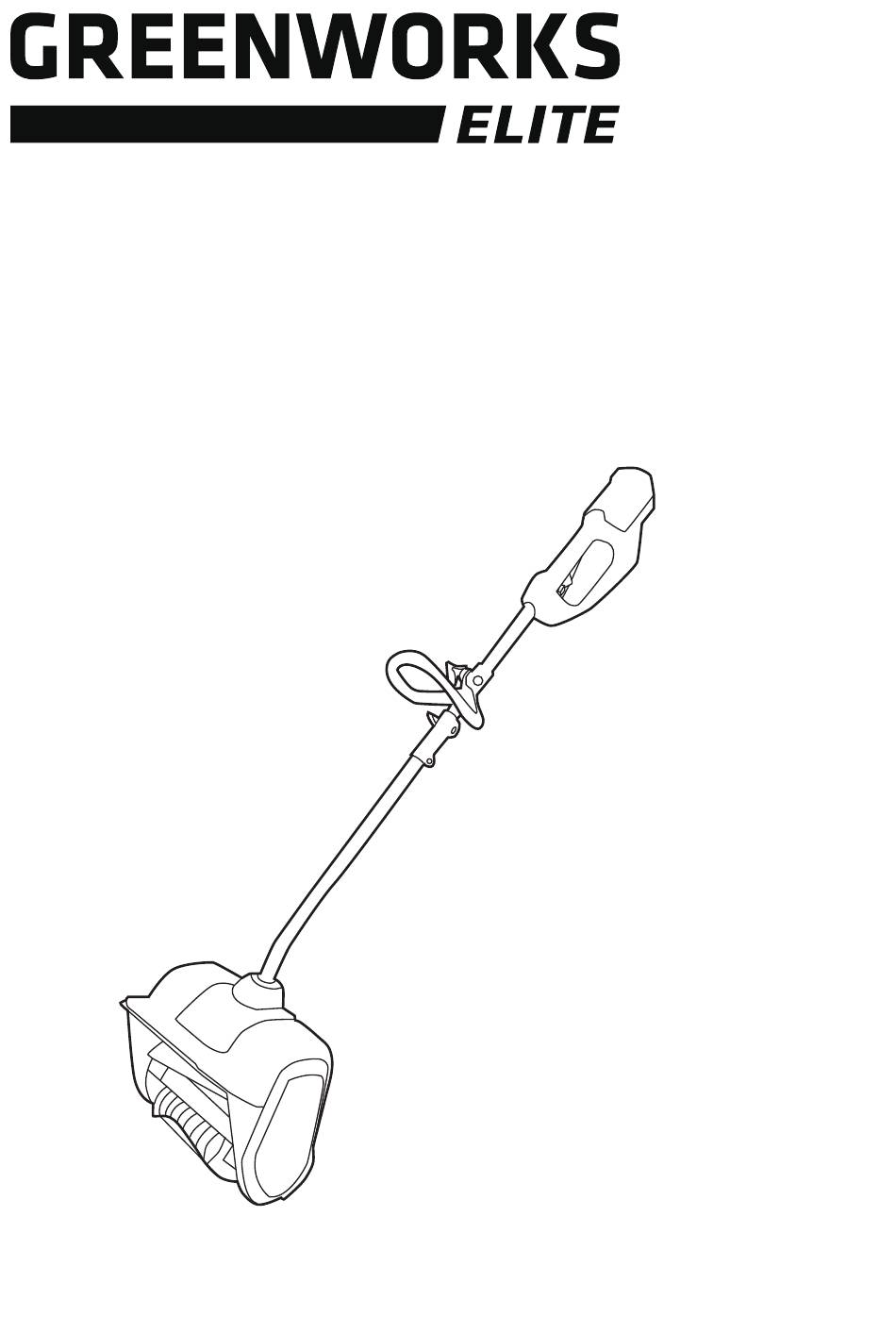

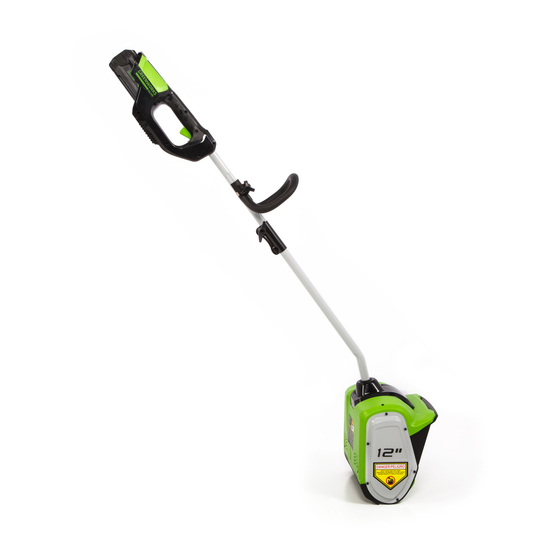

- Page 1 SN-120-T SNOW SHOVEL OPERATOR MANUAL PELLE À NEIGE MANUEL D’OPÉRATEUR QUITANIEVES MANUAL DEL OPERADOR www. greenworkselite.com SSF403...
-
Page 3: Table Of Contents
English Attach the auxiliary handle......8 Description........4 Install the battery pack....... 9 Purpose............4 Remove the battery pack......9 Overview............ 4 10 Operation........9 General appliance safety 10.1 Cold weather operation......9 warnings........4 10.2 Start the machine........9 Recommended ambient 10.3 Stop the machine........ -
Page 4: Description
English DESCRIPTION and safety rules in this manual and must be trained and supervised by a parent. PURPOSE • Read the operating and service instruction manual carefully. Be thoroughly familiar with the controls This machine is used to remove and clear away snow and the proper use of the appliance. - Page 5 English ejected from the battery may cause irritation or Children should be supervised to ensure that they burns. do not play with the machine. • Do not put hands or feet near or under rotating • Hand contact with the rotating impeller inside the parts.
-
Page 6: Recommended Ambient Temperature Range
English • Do not modify or attempt to repair the appliance or Symbol Explanation the battery pack (as applicable) except as indicated in the instructions for use and care. Keep hands away from the dis- • Maintain appliance with care - follow instructions for charge area. -
Page 7: Environmentally Safe Battery Disposal
English ENVIRONMENTALLY SAFE PROPOSITION 65 BATTERY DISPOSAL WARNING This product contains a chemical known to the state of California to cause cancer, birth defects or other reproductive harm. Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. -
Page 8: Attach The Shaft
English ATTACH THE AUXILIARY HANDLE WARNING For your personal safety, do not insert battery before the tool is assembled completely. ATTACH THE SHAFT NOTE If the button does not release fully in the location hole, the shafts are not locked into position. Turn from side to side until the button is locked into position. -
Page 9: Install The Battery Pack
English 4. Put the handle knob (14) through the holes and • remove the battery pack from the machine, tighten it. • charge the battery pack to 15 minutes in warm area, or when the charging light turns green. INSTALL THE BATTERY PACK •... -
Page 10: Maintenance
English 11.2 REPLACE THE SCRAPER 1. Start the machine. 2. Push the machine forward until it rides on the scraper (14). NOTE The forward speed is dependent on the depth and weight of the snow. MAINTENANCE WARNING Remove the battery pack from the machine before maintenance. - Page 11 English 2. Pull the belt tensioner away from the engine pulley. Make sure that the washer, spring and screw are not missing. 7. Remove the impeller shaft with pulley assembly attached. 3. Remove the belt. 8. Remove the damaged impeller (13). Make sure that the shaft sleeve on the left side of the shaft is not 4.
-
Page 12: Transportation And Storage
English 10. Replace and tighten the remaining nut on the left side plate assembly, screws on the left side cover and screws on the pulley assembly. 12. Replace and tighten the remaining screws on the right side cover. TRANSPORTATION AND STORAGE •... -
Page 13: Troubleshooting
(3) years against defects in materials, parts er. Place battery or workmanship. Greenworks, at its own discretion, will on charger and repair or replace any and all parts found to be defective, allow to charge through normal use, free of charge to the customer. -
Page 14: Exploded View
It is the purchaser’s responsibility to pay transportation charges for any part submitted for replacement under this warranty unless such return is requested in writing by Greenworks. USA address: Canadian address: Greenworks Tools Greenworks Tools Canada, Inc.
