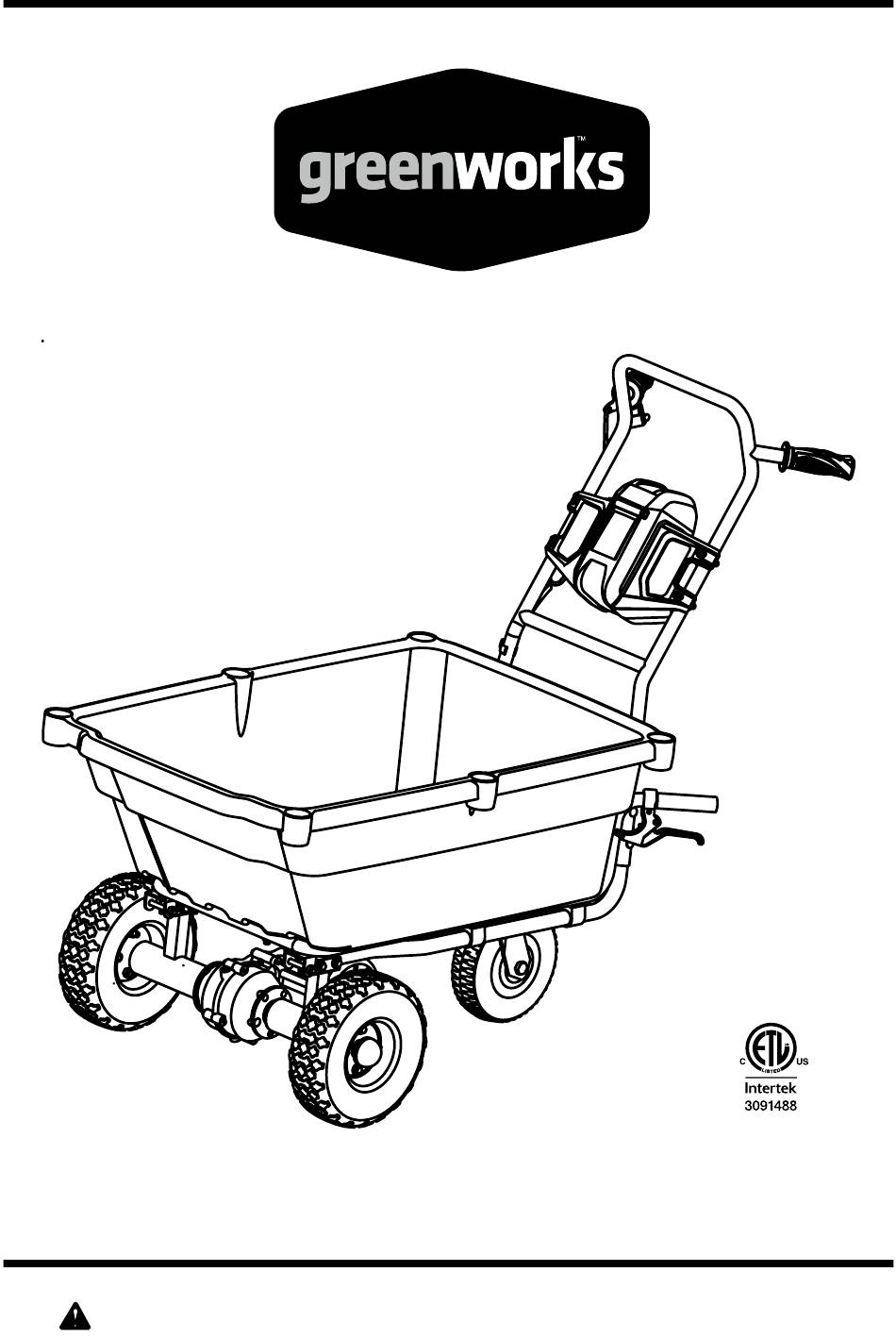

GreenWorks 7400000 Owner's Manual

GreenWorks 7400000 Owner's Manual

40v self-propelled wheelbarrow

Advertisement

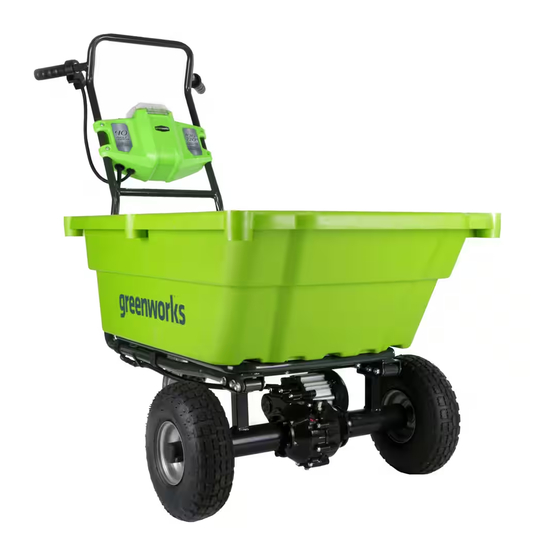

40V Self-Propelled Wheelbarrow
7400000
Owner's Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
www.GreenWorksTools.com
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7400000 and is the answer not in the manual?

Questions and answers

Summary of Contents for GreenWorks 7400000

  • Page 1 40V Self-Propelled Wheelbarrow 7400000 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
  • Page 2: Table Of Contents

    COnTEnTS Contents ..........................2 Product specifications ......................2 Safety information ........................ 3 Symbols ..........................7 Know your wheelbarrow ....................... 9 Assembly ........................... 10 Operation ........................... 12 Maintenance ........................20 Troubleshooting ......................... 22 Warranty ..........................23 Exploded View ........................25 Parts List..........................26 PRODUCT SPECifiCATiOnS 40V SELF-PROPELLEd WHEELBaRROW Type .........................40V 300W...
  • Page 3: Safety Information

    SAfETY infORMATiOn REad aLL INSTRUCTIONS GENERaL SaFETY RULES W a R N I N G When using electric gardening appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following. •...
  • Page 4 • Only load with as much weight as you can control when machine is moving. • never carry passengers. • Use only Greenworks batteries. • Do not use if forward/backward button or power switch or safety button is not working properly.
  • Page 5 SAfETY infORMATiOn • Check Damaged Parts - Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation.
  • Page 6 SAfETY infORMATiOn • Do not allow children under the age of 14 to operate this Wheelbarrow. Children who are 14 years of age and older must read and understand the operating instructions and safety rules in this manual, and must be trained and supervised by a parent. SERVICE W a R N I N G Altering the electrical system could cause a fire resulting in serious injury.
  • Page 7: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL dESIGNaTION/EXPLaNaTION Voltage Current Power Time Type of current Type or a characteristic of current To reduce the risk of injury user must read and understand operator’s...
  • Page 8 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNaL MEaNING daNGER indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WaRNING indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
  • Page 9: Know Your Wheelbarrow

    KnOW YOUR WHEELBARROW Read this operator's manual and safety rules before operating your self-propelled wheelbarrow. Compare the illustration in figure 1 to your wheelbarrow in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Forward/Reverse button Safety button...
  • Page 10: Assembly

    ASSEMBLY inSTRUCTiOnS UNPaCKING • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • inspect the product carefully to make sure no breakage or damage occurred during shipping. •...
  • Page 11 ASSEMBLY inSTRUCTiOnS ASSEMBLY inSTRUCTiOnS W a R N I N G Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.
  • Page 12: Operation

    OPERATinG YOUR WHEELBARROW W a R N I N G You are responsible for controlling and steering the wheelbarrow once it is moving. Grasp the handle securely before moving. Make sure you are ready to move with the wheelbarrow before pressing the on-off button and safety button.
  • Page 13 OPERATinG YOUR WHEELBARROW W a R N I N G When placing battery pack in the tool, be sure raised rib on battery pack aligns with the groove inside the tool and latches into place properly. improper installation of the battery pack can cause damage to internal components.
  • Page 14 OPERATinG YOUR WHEELBARROW W a R N I N G if you do not engage the throttle in 4 seconds after pressing the safety button, you have to press the safety button again. MOVING FORWaRd/REVERSE (See Figure 5) 1. Select forward/reverse. 2.
  • Page 15 OPERATinG YOUR WHEELBARROW W a R N I N G When moving in reverse, be ready for the wheelbarrow to lurch towards you and get immediately up to speed. Be careful; step back and be prepared to walk backwards. Consider standing to the side of the wheelbarrow until you get used to moving backwards.
  • Page 16 OPERATING YOUR WHEELBARROW CHECKING BATTERY CAPACITY Press the battery capacity indicator (BCI) button. The lights will illuminate according to the batteries capacity level. See chart below: BATTERY CAPACITY LIGHT METER INDICATOR (BCI) BUTTON BATTERY METER Lights Capacity 4 Green Lights The battery is at full capacity 3 Green Lights The battery is at 70% capacity...
  • Page 17 OPERATING YOUR WHEELBARROW CLEANING 1. Wipe the outside of the charger with a dry, soft cloth. Do not hose down or wash with water. CAUTION Do not use strong solvents or detergents on the plastic housing or plastic components. Certain household cleaners may cause damage and may also cause a shock hazard.
  • Page 18 OPERATING YOUR WHEELBARROW CHARGING PROCEDURE The battery is not shipped fully charged. It is recommended to fully charge before N O T E : first use to ensure that maximum run time can be achieved . This lithium-ion battery will not develop a memory and may be charged at any time.
  • Page 19 OPERATING YOUR WHEELBARROW CHECKING THE CHARGE If the battery pack does not charge properly: • Check the current at the power outlet with another tool. Make sure that the outlet is not turned off. • Check that the charger contacts have not been shorted by debris or foreign material. •...
  • Page 20: Maintenance

    MAinTEnAnCE Like any machine, maintaining your Wheelbarrow ensures its best performance and extends its life. Follow these procedures to keep your Wheelbarrow working at peak efficiency. • Check all screws and nuts regularly; tighten them as needed. Regularly check the plastic parts for cracks or broken pieces.
  • Page 21 MAinTEnAnCE dRaINING THE OIL (See Figure 8) • Remove the drain plug with a wrench to drain the oil. • After the oil is drained, screw the drain plug back in again. REFILLING THE OIL (See Figure 9) • Remove the oil plug with a wrench. •...
  • Page 22: Troubleshooting

    The battery is old and does not Replace the battery with a new 40 accept full charge. Volt GreenWorks battery The Wheelbarrow runs sluggishly. The Wheelbarrow is intended for residential use. if slopes are too...
  • Page 23: Warranty

    (4) years against defects in materials, parts or workmanship. GREEnWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for...
  • Page 24 (2) years against defects in materials, parts or workmanship. GREEnWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for...
  • Page 25: Exploded View

    EXPLODED ViEW...
  • Page 26: Parts List

    PARTS LiST ITEM NO. PaRT NO. dESCRIPTION 31916688 Handle assembly 32206688 Cap nut 32222688 flat washer 32223688 Spring washer 34135469A Cable hook 33204688 U-bolt 3410835-4 Knob 31917688 Panel assembly 32201688 Cross recessed pan head screw ,M6x35 31102975 Lithium battery pack , 40V 4Ah 32202688 T shaped nut 34105688...
  • Page 27 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 01 (10-31-11) Printed in China on 100% Recycled Paper...
