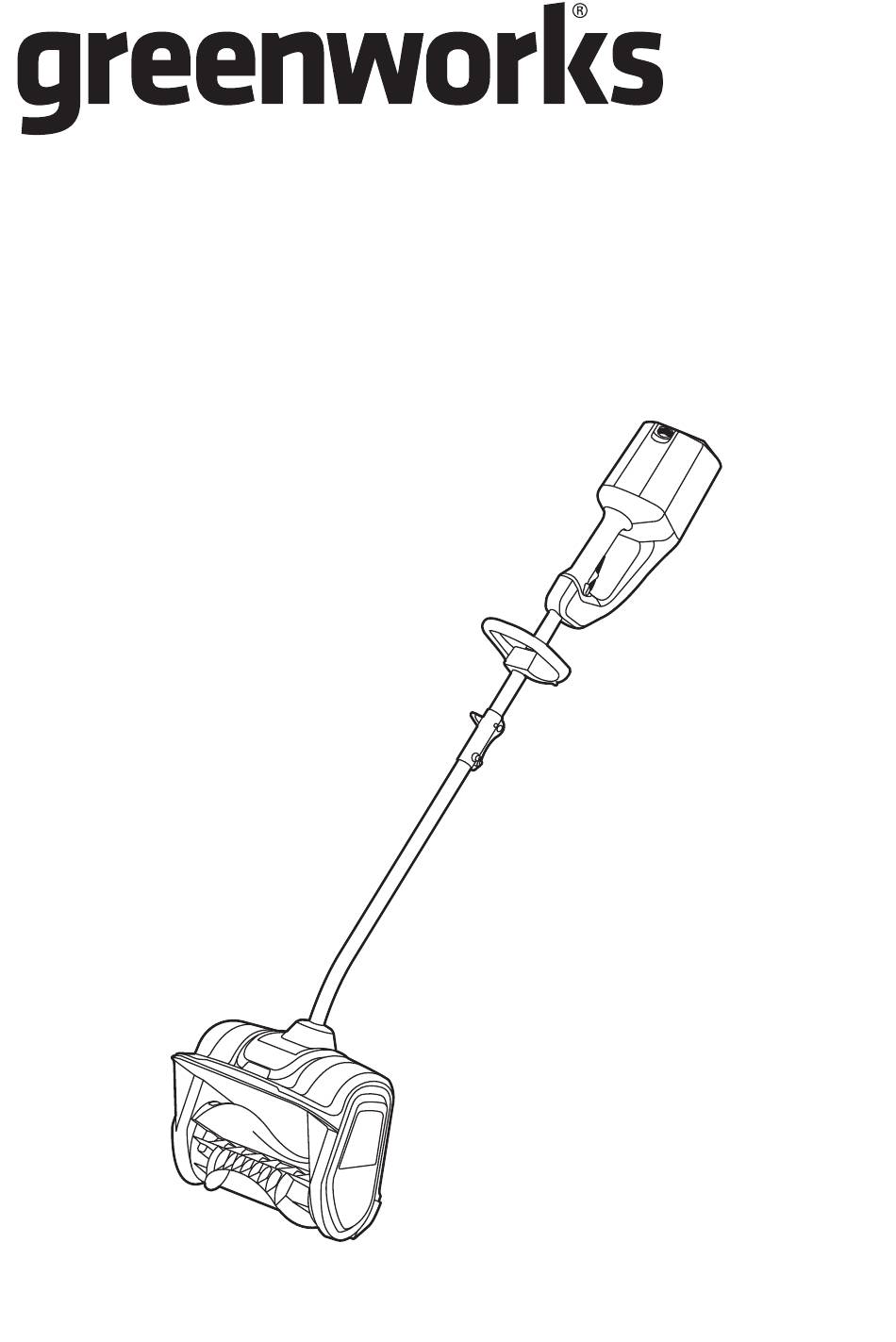

- Page 1 SNOW SHOVEL OPERATOR MANUAL www.greenworkstools.com SSB403...
-
Page 3: Table Of Contents
English Unpack the machine........ 7 Description.........4 Attach the auxiliary handle.......7 Purpose........... 4 Attach the shaft........7 Overview..........4 Install the battery pack......8 Safe Operation Practices for Remove the battery pack......8 Snow Blowers and Snow Operation........8 Shovel.........4 Cold weather operation......8 Battery tools use and care....... -
Page 4: Description
English • Prevent unintentional starting. Ensure the switch DESCRIPTION is in the off-position before connecting to battery pack, picking up or carrying the product. Avoid PURPOSE carrying the product with your finger on the switch or powering it with your finger on the switch, as this This machine is used to remove and clear away snow can lead to accidents. -
Page 5: Training
English • Keep guards in place and in working order. • Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert • Avoid Overexerting the Product - The product for hidden hazards or traffic. performs better and safer when operated at its designated rate. -
Page 6: Symbols On The Product
English • Always refer to owner’s guide instructions for PROPOSITION 65 important details if the snow blower is stored for an extended period. WARNING • Maintain or replace safety and instructions labels, as necessary. This product contains a chemical known to the •... -
Page 7: Installation
English WARNING ATTACH THE AUXILIARY HANDLE If the battery pack cracks or breaks, with or without 1. Push the auxiliary handle onto the shaft. leaks, do not recharge it and do not use. Discard it and replace with a new battery pack. DO NOT TRY TO REPAIR IT! To prevent injury and risk of fire, explosion, or electric shock, and to avoid damage to the environment:... -
Page 8: Install The Battery Pack
English 3. Turn the upper shaft until the release button (1) locks into the location hole (2). 4. Tighten the lock knob (3). 3. When you hear a click, the battery pack is installed. REMOVE THE BATTERY PACK 1. Push and hold the battery release button (1). INSTALL THE BATTERY PACK WARNING •... -
Page 9: Start The Machine
English WARNING OPERATE THE MACHINE Do not store or charge battery outside. Battery must be charged and stored indoors prior to use of the machine. If the machine does not start: • remove the battery pack from the machine, • charge the battery pack to 15 minutes in warm area, or when the charging light turns green. -
Page 10: Replace The Scraper
English • Clean the remaining snow on the machine with a brush. REPLACE THE SCRAPER 1. Put the machine on a flat, level surface. 2. Face up the impeller. 3. Remove the 4 screws below the impeller that attach the scraper (2) to machine. 2. - Page 11 English 5. Remove the 6 screws on the left side cover. 6. Remove the nut on the left side plate. 9. Install the impeller shaft with pulley assembly attached in the new impeller. Make sure that you replace the retained shaft sleeve on the left side of the shaft.
-
Page 12: Transportation And Storage
English 10. Replace and tighten the remaining nut on the left side plate assembly, screws on the left side cover and screws on the pulley assembly. 12. Replace and tighten the remaining screws on the right side cover. 11. Put the belt and the belt tensioner into position. TRANSPORTATION AND STORAGE •... -
Page 13: Troubleshooting
English • Replace the damaged parts. * If you cannot find the solution to these problems, call 1-855-345-3934. • Tighten the bolts. • Speak to a person of an approved service TECHNICAL DATA center. • Stow the machine in a locked, dry area. Voltage 80 V •... - Page 14 It is the purchaser’s responsibility to pay transportation charges for any part submitted for replacement under this warranty unless such return is requested in writing by Greenworks. USA address: Greenworks Tools P.O. Box 1238, Mooresville, NC 28115 Canadian address: Greenworks Tools Canada, Inc.
- Page 15 www.greenworkstools.com P0801129-05 Rev B1...
