Technical Support and E-Warranty Certificate
www.vevor.com/support

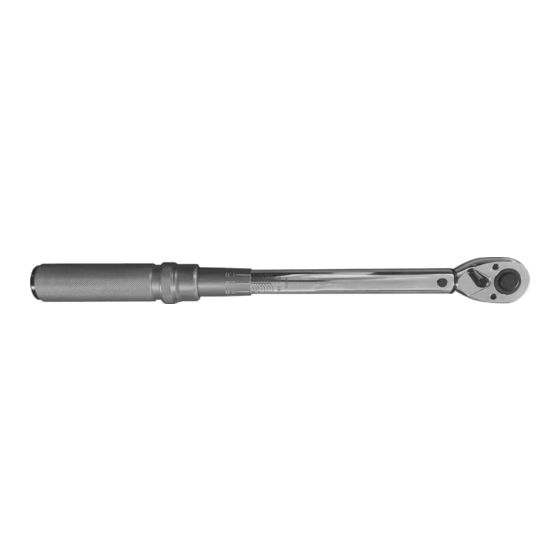

TORQUE WRENCH
USER MANUAL
We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price",
or any other similar expressions used by us only represent an estimate of savings you might
benefit from buying certain tools with us compared to the major top brands and do not
necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when placing an order with us if you are saving half in comparison with the top
major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR 18150FTLB
Summary of Contents for VEVOR 18150FTLB
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support TORQUE WRENCH USER MANUAL We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software...
- Page 3 1. Important safety instruction Please read the operation manual carefully before you start to operate the torque wrench. contact the manufacturer for any questions. so as to avoid safety accidents and damage to the torque wrench. 1.1 In order to maintain good accuracy, it is recommended to recalibrate approximately once a year or each 5000 times 1.2 Make sure the torque wrench is set correctly before use (the torque is set on the minimum scale for shipment).
- Page 4 Parameter table Torque Wrench- Parameter table Item Description SKU1 SKU2 SKU3 SKU4 Model 18150FTLB 18250FTLB 16200INLB 17080FTLB Drive Size 1/2" 1/2" 1/4" 3/8" Number of Teeth Torque 10-150ft.lb 25-250ft.lb 20-200in.lb 10-80ft.lb Range (ft.lb) Torque 14-204n.m 34-340n.m 3-23n.m 14-110n.m Range (n.m) Packaging 555×125×75mm 615×125×75 mm 275×115×60mm 555×125×75mm...
- Page 5 4.How to set a torque value 4.1 Pull back the locker to unlock the supplementary graduation. Center line Sup.Grad Graduation Datum Line Sup.Grad Locker 4.2 Turn the Supplementary Graduation to set a torque(Combination of values on the Main and supplementary graduations. 4.2.1 Turn Supplementary Graduation until 60N.m on Main Graduation close to Graduation Datum Line.
- Page 6 4.4. Turn the torque wrench clockwise to fasten the bolt. 4.5. Stop pulling the wrench when you hear a "Click", this means it's already at the torque value which you set. 5. Torque conversion table 6.Storage 6.1 This product is a precision instrument and should be stored with care using provided storage box.
- Page 8 Technical Support and E-Warranty Certificate www.vevor.com/support...
