GEM FACETING MACHINE
USER MANUAL
We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price",
or any other similar expressions used by us only represent an estimate of savings you might
benefit from buying certain tools with us compared to the major top brands and do not
necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when placing an order with us if you are saving half in comparison with the top
major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR KD-8801
Summary of Contents for VEVOR KD-8801
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support GEM FACETING MACHINE USER MANUAL We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software...
- Page 3 Warning-To reduce the risk of injury, user must read instructions manual carefully. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

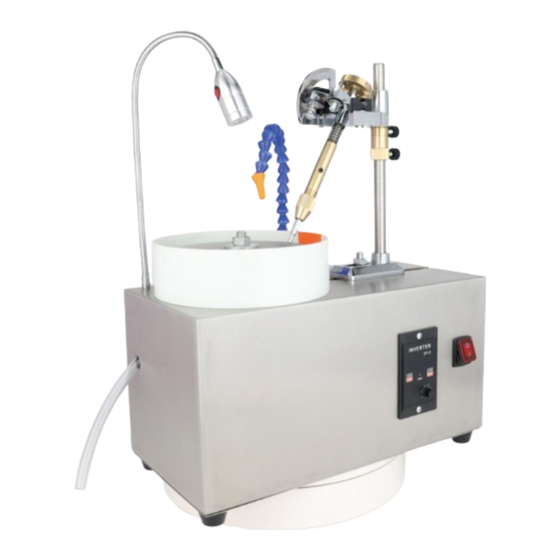

- Page 4 Fittings of a machine： 1.Diamond millstone 2.Tray 3.Adaptor 4.Cooling water pipes 5.Screw 6.Three different gem fixing rod GENERAL SAFETY RULES WARNING: Do not attempt to operate the machine until you have read thoroughly and understood completely all instructions, rules, etc. contained in this manual. Failure to comply may result in accidents involving fire, electric shock, or serious personal injury.
- Page 5 7. Do not force the machine. It will do the job better and be safer at the rate for which it is designed. 8. Use the right tools. Do not force the machine or attachments to do a job for which they are not designed.
- Page 6 To fix the screws of the manipulator, the manipulator can move forward and backward Height adjuster, used to adjust the angle between the operator and the grinding disc, that is, the angle of the workpiece. Unilateral rotation for fine adjustment Fan angle card...
- Page 7 Dial indexing pin Hand control lever controls gem Angle The manual control lever can be disassembled to adjust the angle and disassemble the gem.
- Page 8 Screw control 90 degree fine tuning angle With the positioning rotation of 96 scale, can accurately control the gem Angle Rotate and fix the slime stick...
- Page 9 Remove the orange baffle on the water baffle plate, which can give the stone surface grinding Gem surface grinding LED light switch Tap switch, can control the water outlet...
- Page 10 The faucet is connected to the water pump Drain pipe 1. Power socket. 2. If any indicator light is off, please check the fuse WARNING! This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.
- Page 11 To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. items Description Name Gem Faceting Machine Model KD-8801 Paramete Voltage/Frequency： 110-120VAC/60Hz， Power： 180W， Variable speed：0-2980rpm Package 480x380x330mm Size G.W.
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
