EMG F-H1 Installation Information

INSTALLATION INFORMATION

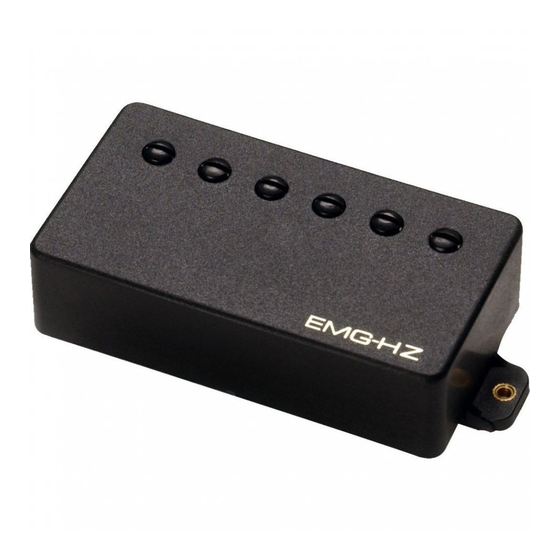

EMG MODELS: F-H1, F-H1A, F-H2, F-H2A, F-H3, F-H3A

SPECIFICATIONS:

Logo Color
Magnet Type *
Inductance (Henries) (1)
DC Resistrance (kOhm)
Resonant Frequency (KHz) (2)
Resonant Frequency (KHz) (3)
Impedance at Resonance (kOhm) (2)
*Note: Magnet Type: A (Alnico) A/S (Alnico/Steel) C (Ceramic) C/S (Ceramic/Steel)
(1) Wired in Series
(2) Loaded with 500K Volume and Tone with a 20' (6M) cable
(3) Loaded with 1 MegOhm / 47pf

Installation notes:

All EMG-HZ Pickups are compatible with each other. The connector system is an easy method of installation, avoiding the need to solder.
Older HZ Pickup Systems may need to be soldered, while the newer systems can be easily connected and modified. If you have an older
EMG-HZ Pickup you can install it with the new system. Refer to the B157 Buss data sheet to solder pickups without connectors.
EMG Accessory Circuits like the VLPF, EXG, SPC or RPC Controls can be added to any EMG Pickup System, all have buffered inputs and can
be used on either passive or active pickups.
The B157 Pickup Buss is included with the EMG-HZ Pickups. If your installation is passive only and doesn't require a battery the RED V+ port
of the Buss will not be used. If you decide to add active circuitry the B157 can power as many as 5 accessories. There are many EMG
Accessories that can be added to your instrument easily. Go to http://www.emgpickups.com .

Each Pickup Includes:

1 ea 5-Pin cable pre-wired in Humbucking Series format
2 ea 500K Pots with quick-connect solderless connectors
1 ea B157 Buss Board
1 ea #11 1/4 inch Phone Jack
2 ea Adjustment screws and springs
All EMG-HZ Pickups are direct replacement for Humbucking size Pickups.
The 5-Wire cable allows Series/Parallel switching or simple
single/dual-coil combinations can be used.
Pole Spread:
Standard Pole Piece spread is .388 (9.85mm) for Tune-o-matic bridges
Floyd Rose Pole Piece spread is .420 (10.67mm) for Floyd Rose bridges
Models H4 and H4A feature Bar Poles and are suitable for either bridge style
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2009 Copyright EMG INC. All Rights Reserved.
F-
H1 F-H1A
Silver Gold
C/S A/S
7.15 7.80
13.65 13.65
1.65 1.65
3.12 3.00
74.00 80.80
SPECIAL NOTE: The Red Wire of the HZ Pickup is NOT for battery power, it is a coil wire.
1.50
MODEL:
F-H2 F-H2A
SIlver Gold
C/S A/S
4.53 4.90
8.40 8.40
2.22 2.12
4.00 3.82
63.30 65.40

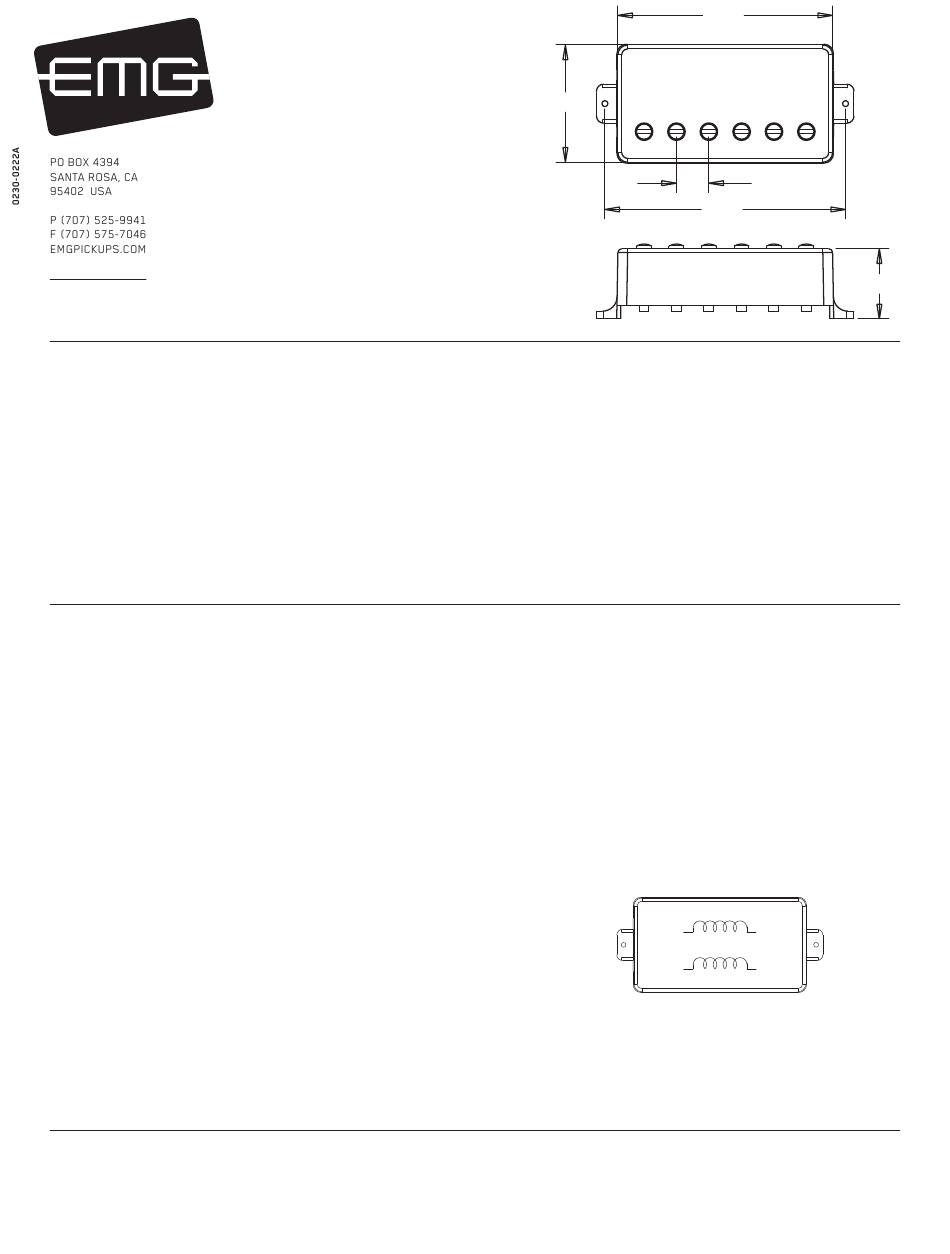

EMG-HZ COIL WIRING
BLACK
WHITE
2.75
.42 TYP
3.08
3/48 MOUNTING HOLES
F-H3 F-H3A
Silver Gold
C/S A/S
7.40 7.67
13.65 13.65
1.72 1.72
3.00 2.92
80.20 83.30
FLOYD MODELS
COIL 2
_
+
RED
STUD BOBBIN
COIL 1
_
+
GREEN
SCREW BOBBIN
.90
